Left & Right Impact Sensors: Removal
WARNING: This page is about a different car, the 1994 Eagle Vision, 1994 Dodge Intrepid, 1994 Chrysler New Yorker, 1994 Chrysler LHS, and 1994 Chrysler Concorde. However, it is still accessible from the selected car via links, so may be relevant.
- Before proceeding, see SERVICE PRECAUTIONS. Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM.

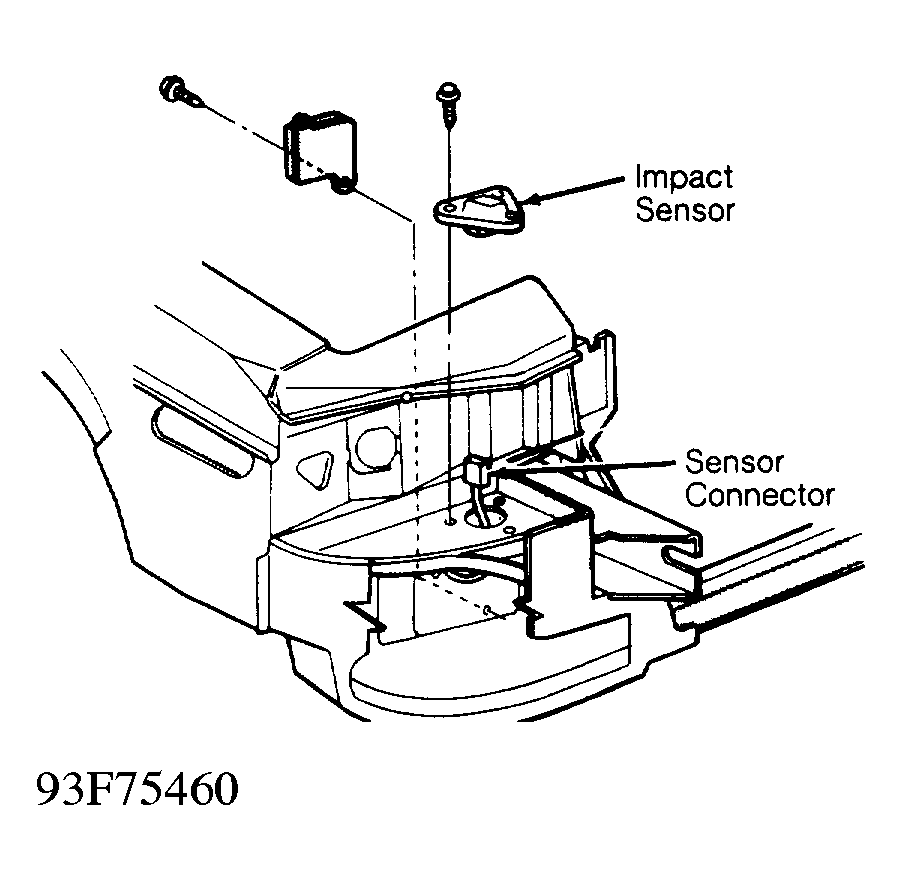

- Impact sensors are mounted on headlight carrier surface on left and right sides of vehicle. See Figure . Removal procedure for left and right sensors are same. Remove 2 headlight pins and headlight.
- Remove 4 headlight fasteners and headlight carrier. Remove 3 screws attaching impact sensor to headlight carrier surface. Remove impact sensor. Disconnect impact sensor connector.
