Removal (5-Passenger Model)

WARNING: This page is about a different car, the 1994 Eagle Vision, 1994 Dodge Intrepid, 1994 Chrysler New Yorker, 1994 Chrysler LHS, and 1994 Chrysler Concorde. However, it is still accessible from the selected car via links, so may be relevant.

Before proceeding, see SERVICE PRECAUTIONS. Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM.
ACM is located in front of center console. Place gear selector in Neutral position. Loosen set screw holding gear shift knob to gear shift. It is not necessary to fully remove set screw. Pull gear shift knob from gear shift.
Remove rubber molding from gap at top of console bezel, if equipped. See Fig 1 . Remove ashtray. Remove screw in ashtray slot, holding bezel to center console. Disengage clips holding rear of bezel to center console. Remove console bezel. Disconnect ACM 4-pin and 13-pin connectors. Remove 2 screws and ACM. See Fig 2 .

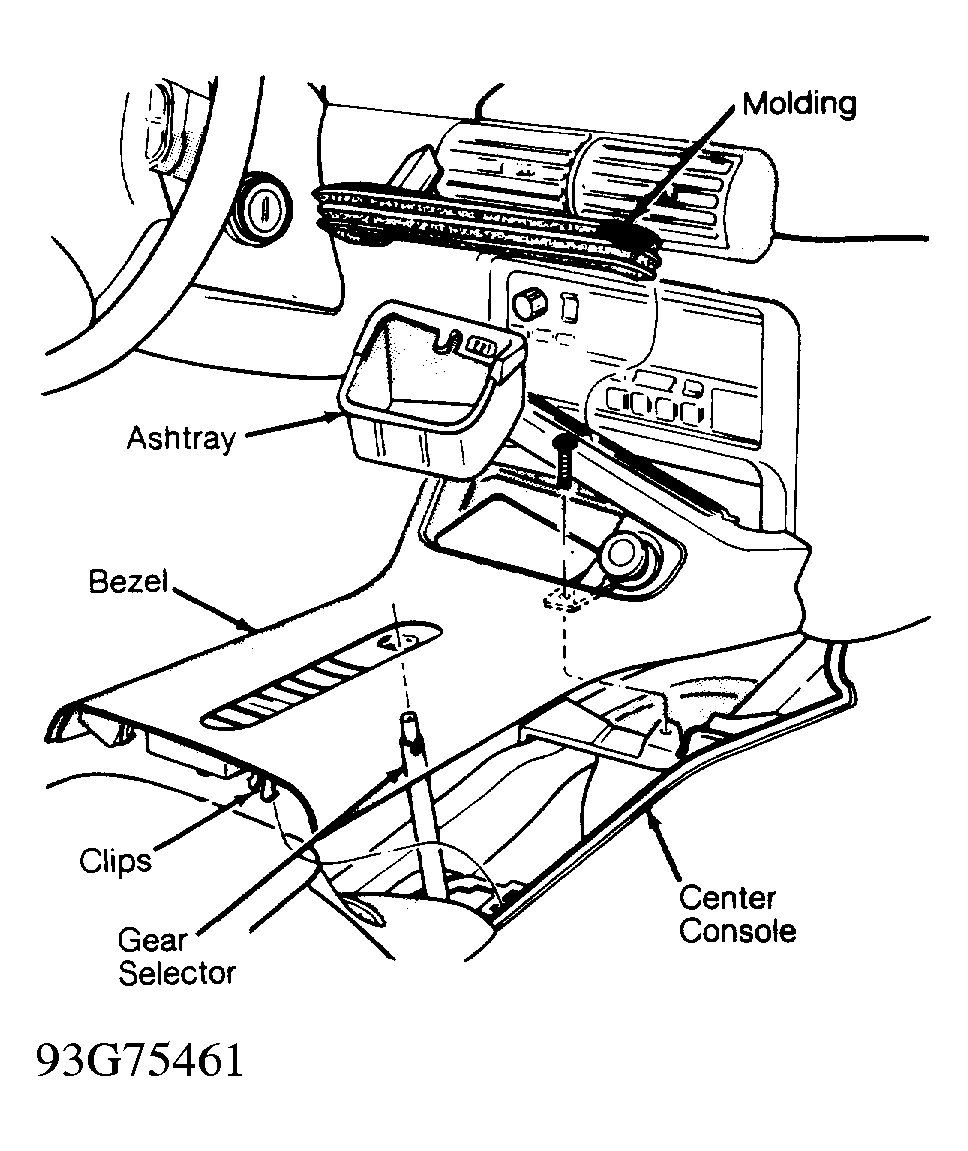

Fig 1: Removing Center Console Bezel (5-Passenger Model)

Courtesy of CHRYSLER CORP.

Fig 2: Removing ACM (6-Passenger Model)

Courtesy of CHRYSLER CORP.
