Test 7A - Driver-Side Squib Short

WARNING: This page is about a different car, the 1994 Eagle Vision, 1994 Dodge Intrepid, 1994 Chrysler New Yorker, 1994 Chrysler LHS, and 1994 Chrysler Concorde. However, it is still accessible from the selected car via links, so may be relevant.

4-WAY CONNECTOR TERMINAL IDENTIFICATION

Application		Terminal No.
Driver Air Bag
Line 1		3
Line 2		4
Passenger Air Bag
Line 1		1
Line 2		2

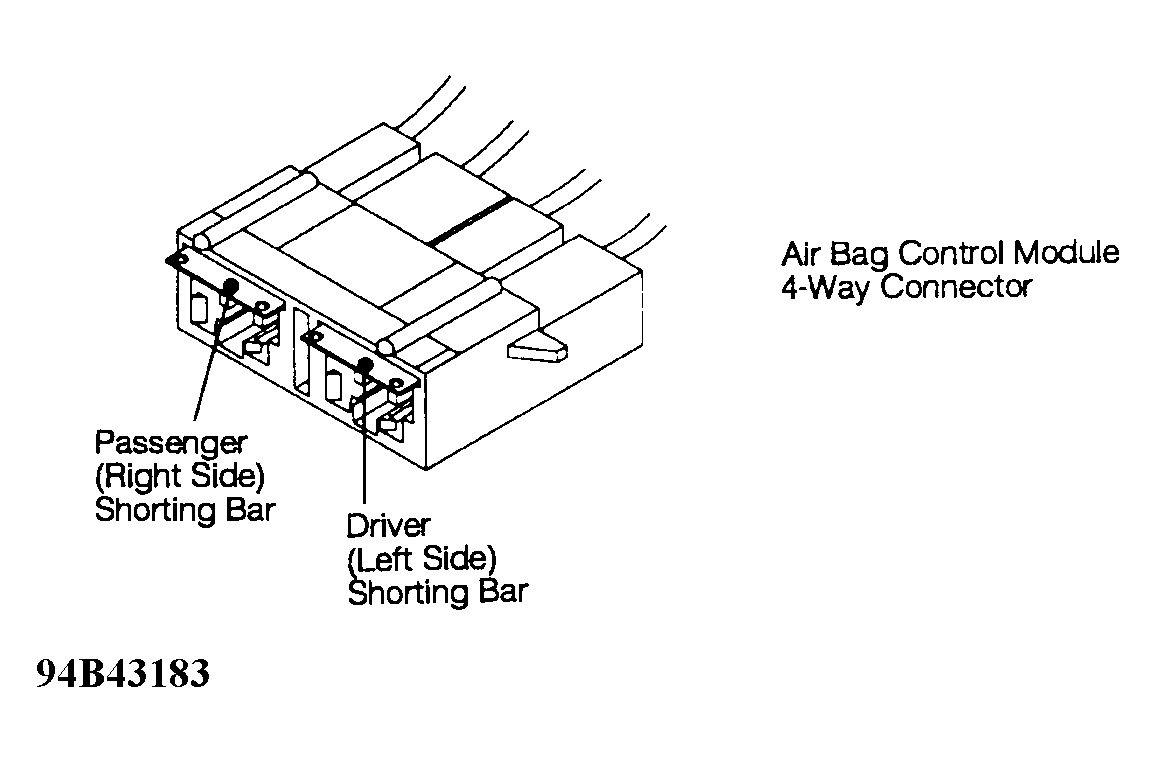

Fig 1: Air Bag Control Module Shorting Bars

Fig 2: Air Bag Control Module (4-Way Connector)

Fig 3: Test 7A - Diagnostic Flowchart (1 Of 2)

Fig 4: Test 7A - Diagnostic Flowchart (2 Of 2)
