Test 12A - Warning Lamp Interface #1 Or #2

WARNING: This page is about a different car, the 1994 Eagle Vision, 1994 Dodge Intrepid, 1994 Chrysler New Yorker, 1994 Chrysler LHS, and 1994 Chrysler Concorde. However, it is still accessible from the selected car via links, so may be relevant.

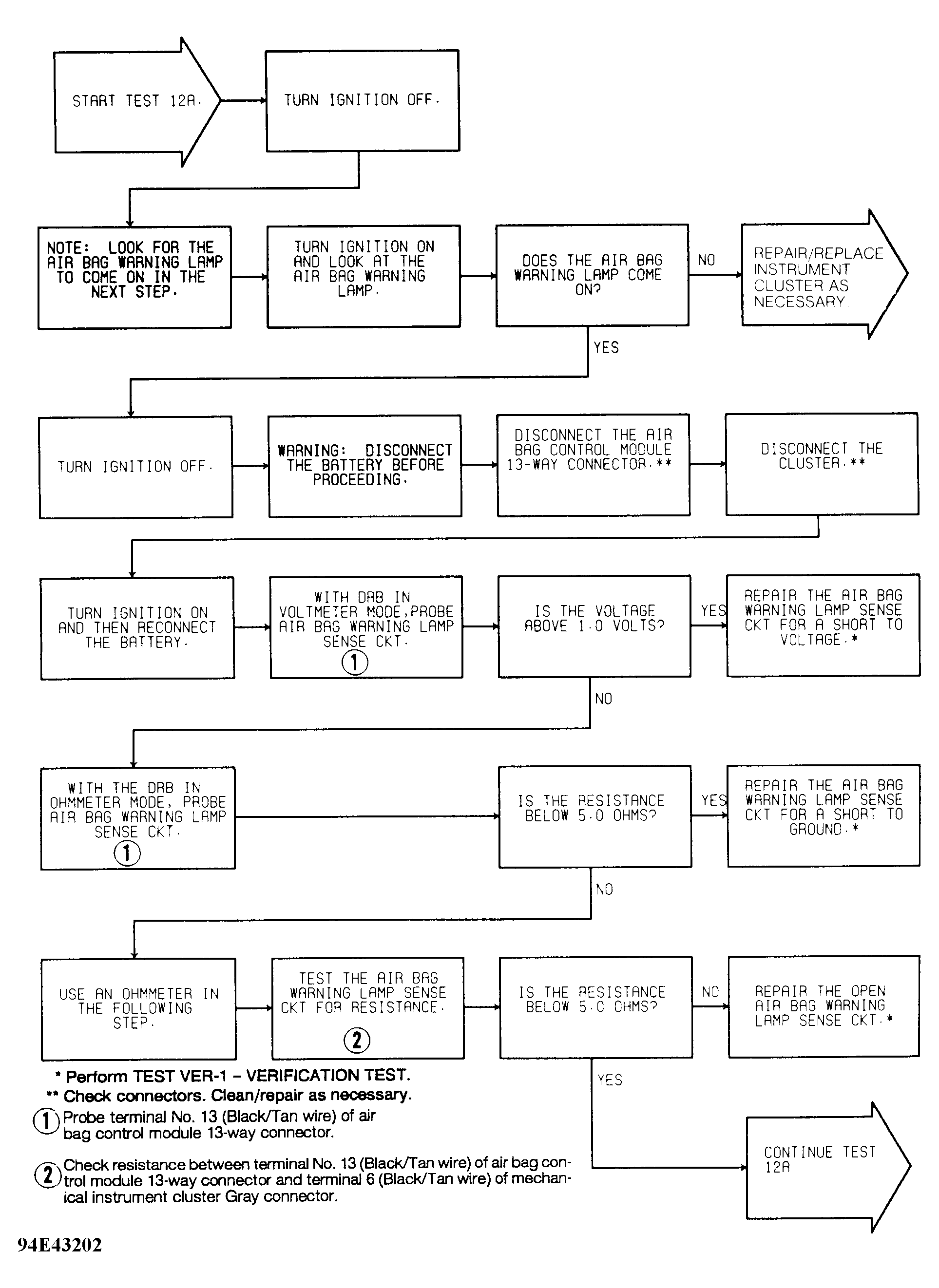

Fig 1: Test 12A - Diagnostic Flowchart (1 Of 2)

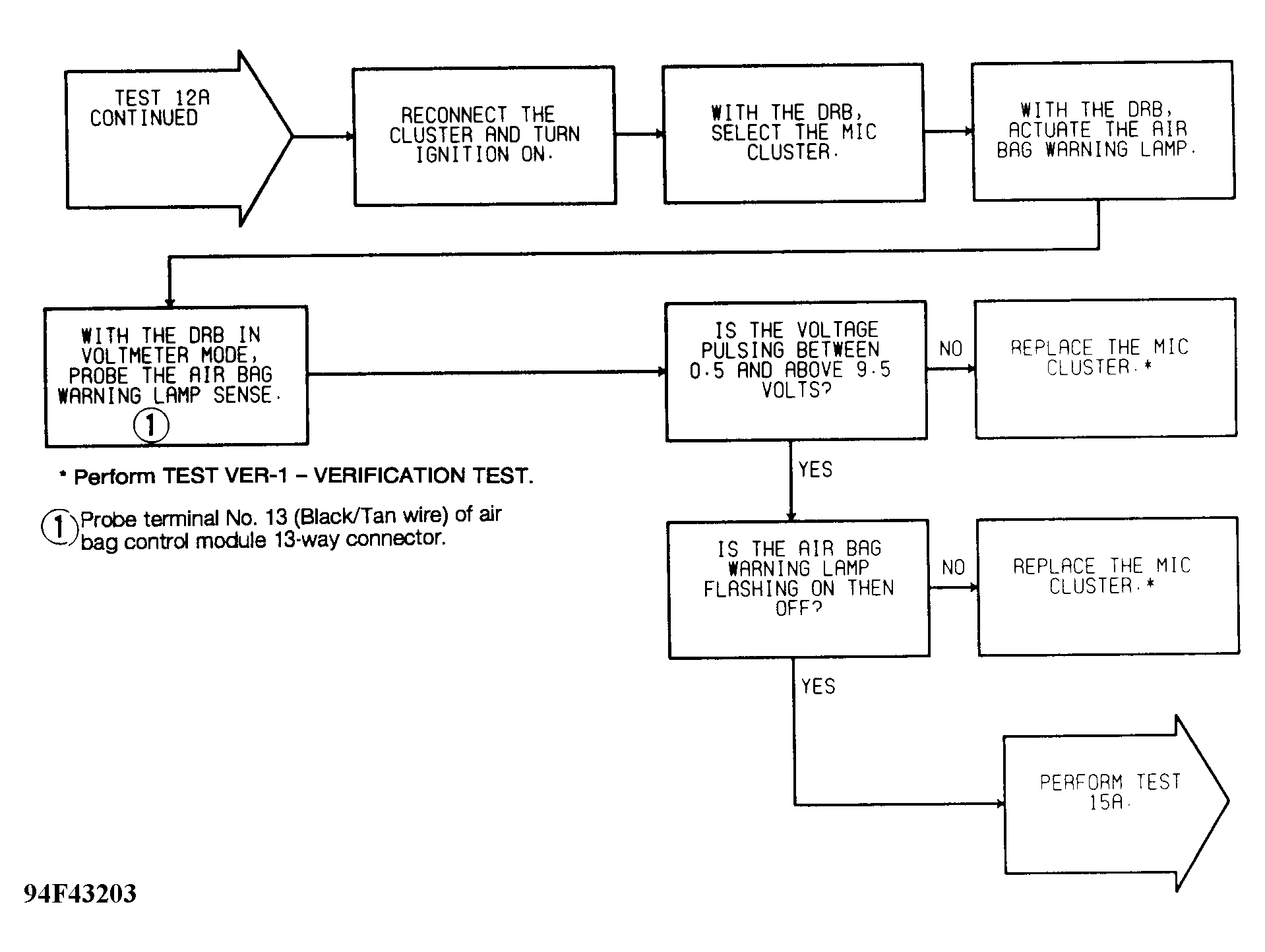

Fig 2: Test 12A - Diagnostic Flowchart (2 Of 2)
