Connector Access

WARNING: This page is about a different car, the 1994 Eagle Vision, 1994 Dodge Intrepid, 1994 Chrysler New Yorker, 1994 Chrysler LHS, and 1994 Chrysler Concorde. However, it is still accessible from the selected car via links, so may be relevant.

Connector is located at lower left back edge of center console panel. This 6-pin connector is behind panel. See Fig 1 .

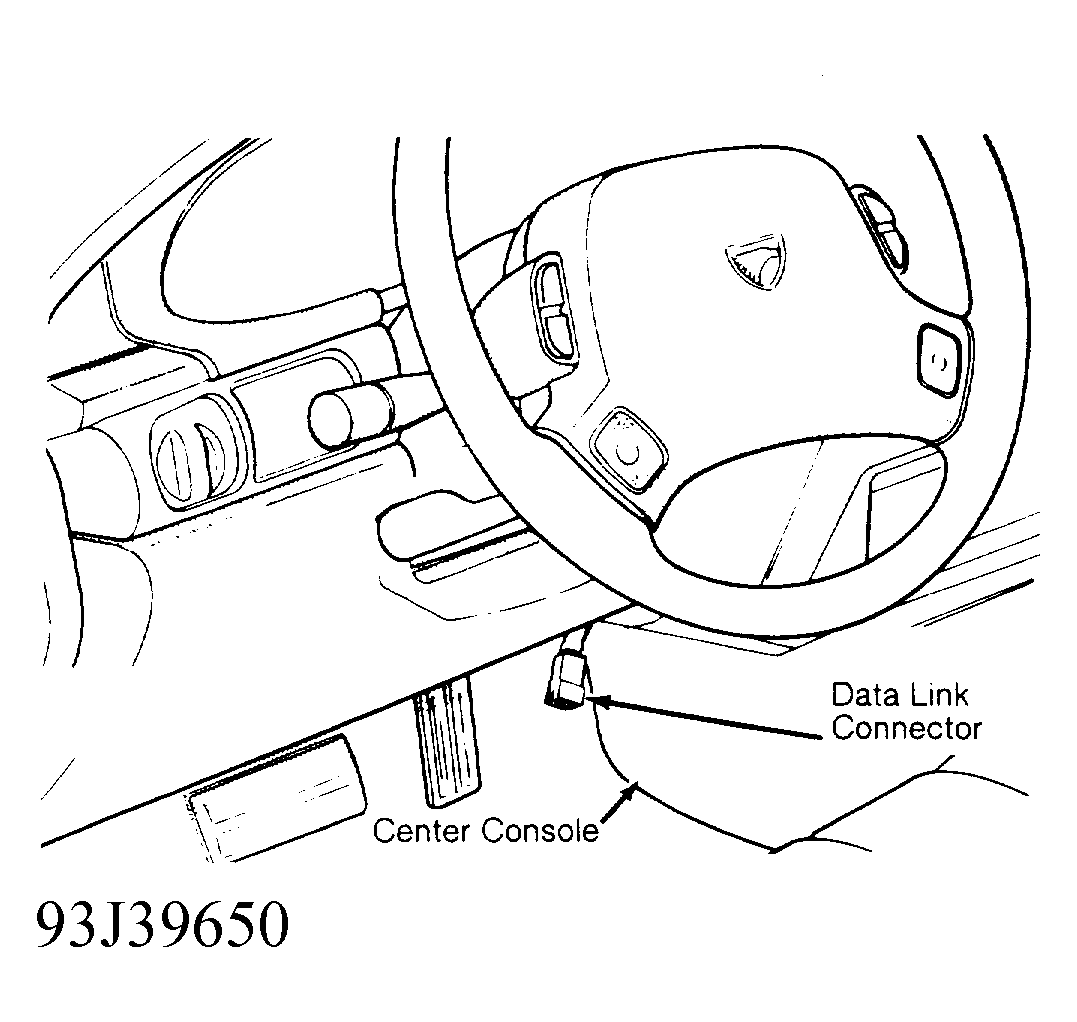

Fig 1: Location Of Data Link Connector

Courtesy of CHRYSLER CORP.

WARNING: Disconnect negative battery cable BEFORE servicing instrument panel. When power is required for test purposes, reconnect battery for specific test purpose ONLY. After specific test is completed, disconnect negative battery cable before continuing servicing procedures.
