Timing Belt: Installation

WARNING: This page is about a different car, the 1994 Plymouth Sundance, 1994 Plymouth Acclaim, 1994 Dodge Spirit, 1994 Dodge Shadow, and 1994 Chrysler LeBaron. However, it is still accessible from the selected car via links, so may be relevant.

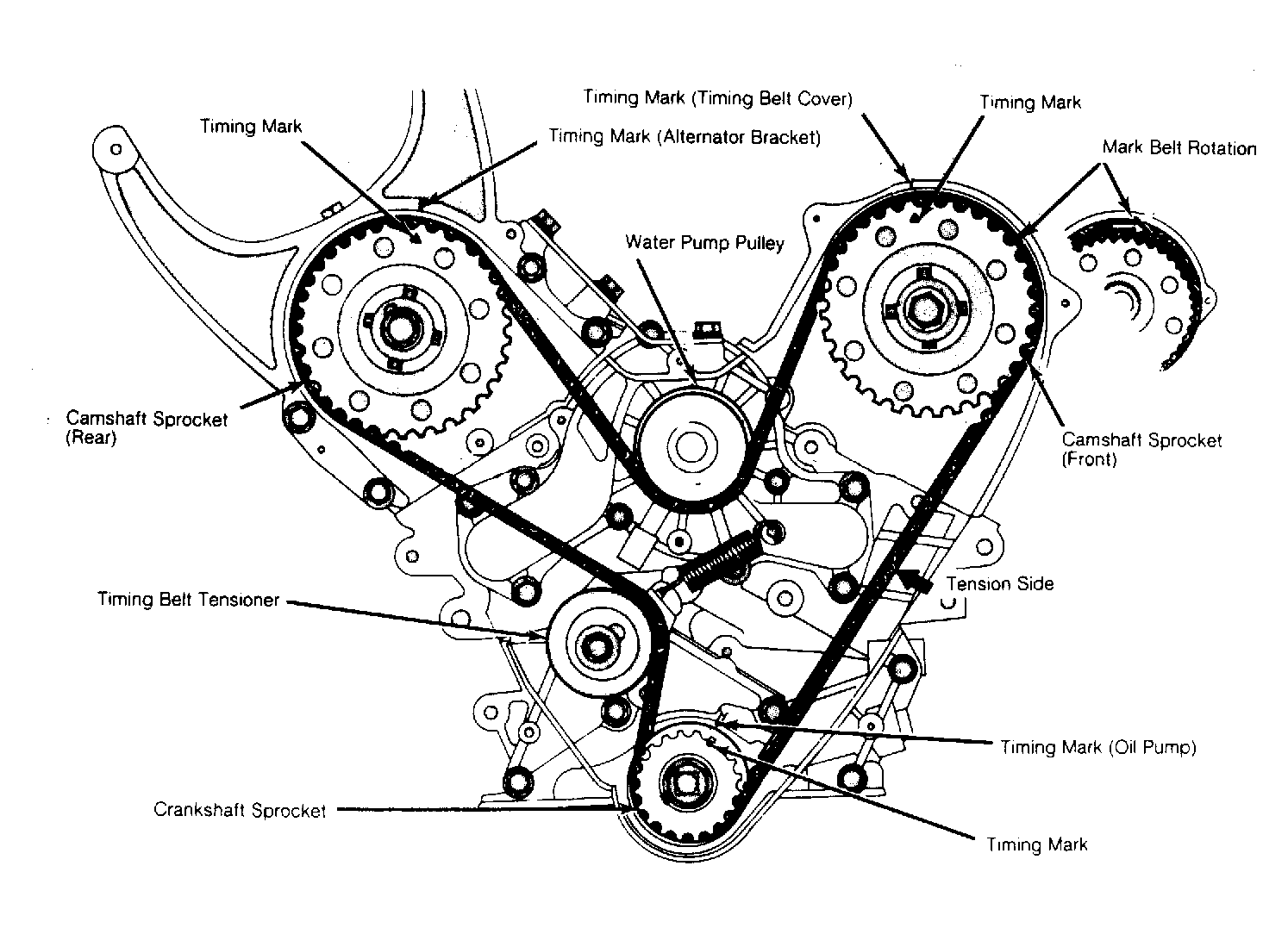

  1. Install camshaft sprockets. Using camshaft sprocket holder, tighten sprocket bolt to specification. See TORQUE SPECIFICATIONS . Align all timing marks. See Figure. Install timing belt on crankshaft sprocket. Hold timing belt tight on tension side and install belt on front (radiator side) camshaft sprocket.
  2. Install timing belt on water pump pulley, rear camshaft sprocket and then timing belt tensioner. Apply rotating force on front (radiator side) camshaft sprocket, in clockwise direction, to apply pressure on tension side of belt. Ensure all timing marks align.
    NOTE: Only rotate crankshaft clockwise. DO NOT rotate crankshaft counterclockwise.
  3. Install flange on front of crankshaft sprocket. Loosen tensioner bolt and allow spring tension to be applied to belt. Rotate crankshaft 2 full revolutions clockwise. Realign all timing marks and tighten timing belt tensioner to 21 ft. lbs. (29 N.m). To complete installation, reverse removal procedure.
