Intake Manifold: Installation

WARNING: This page is about a different car, the 1994 Plymouth Sundance, 1994 Plymouth Acclaim, 1994 Dodge Spirit, 1994 Dodge Shadow, and 1994 Chrysler LeBaron. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse removal procedure. Ensure injector holes are clean. Lubricate injector "O" rings with engine oil before installing. Install injector until firmly seated in port.
Install air intake plenum gaskets, with beaded sealant side away from intake (cross) manifold. Tighten intake (cross) manifold nuts and air intake plenum bolts to specification in sequence. See Fig 1 and Fig 2. Tighten remaining bolts to specification. See TORQUE SPECIFICATIONS . Fill cooling system.

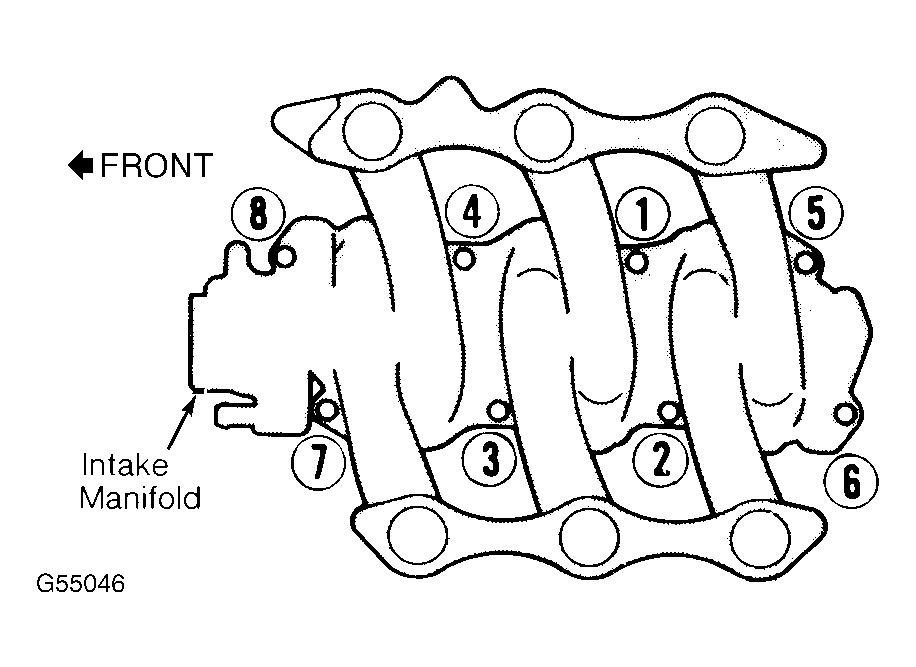

Fig 1: Intake (Cross) Manifold Nut Tightening Sequence

Courtesy of CHRYSLER CORP.

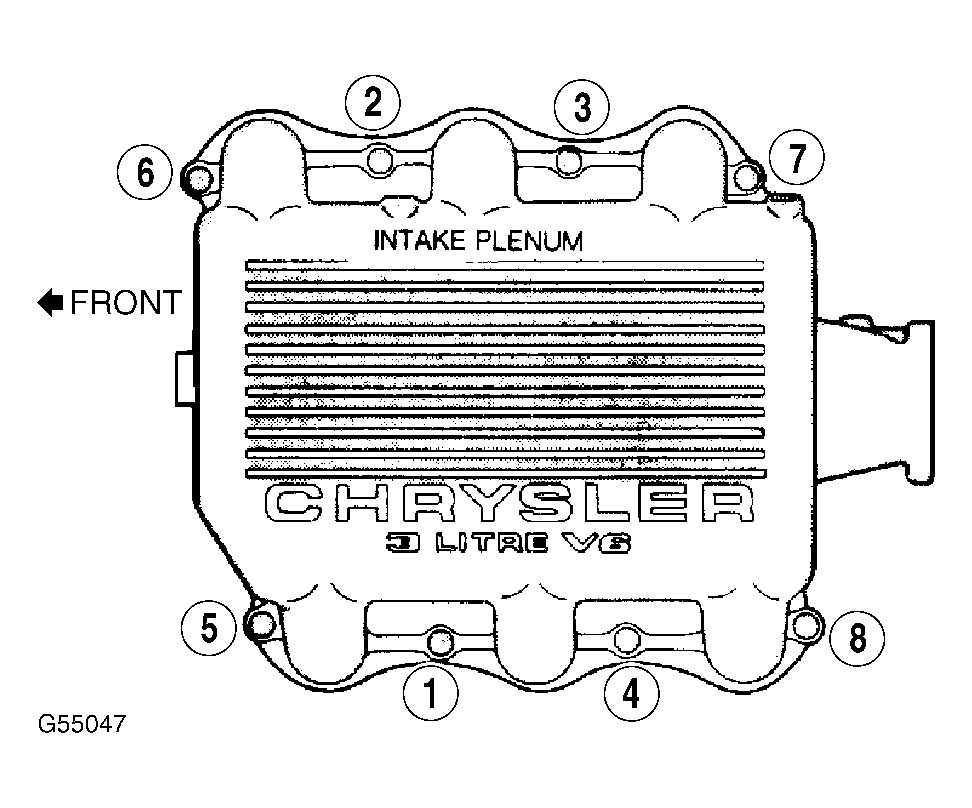

Fig 2: Air Intake Plenum Bolt Tightening Sequence

Courtesy of CHRYSLER CORP.
