Fuel Pressure Release
WARNING: This page is about a different car, the 1994 Plymouth Sundance, 1994 Plymouth Acclaim, 1994 Dodge Spirit, 1994 Dodge Shadow, and 1994 Chrysler LeBaron. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Fuel system is under pressure. Release pressure before servicing fuel system components.

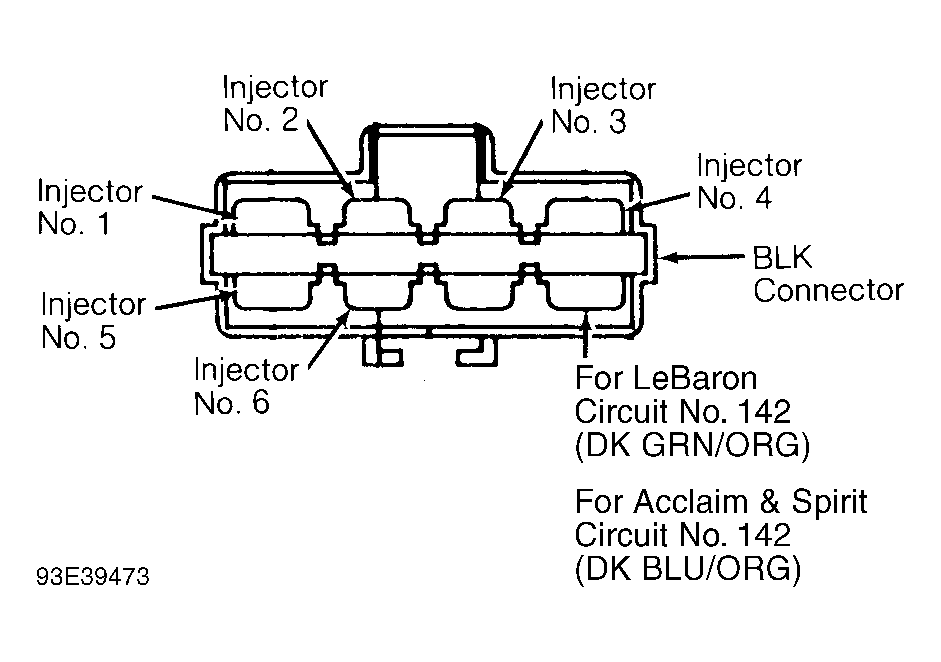

- Disconnect fuel rail electrical harness from engine harness. Connect one end of a jumper wire to Dark Blue/Orange wire (circuit No. 142) terminal of fuel rail harness connector. See Fig 1. Connect other end of jumper wire to a 12-volt power source.
- Connect one end of another jumper wire to a good ground source. Momentarily ground one injector by connecting other end of jumper wire to an injector terminal in harness connector. Repeat procedure for 2 or 3 injectors.
