Thrust Bearing

WARNING: This page is about a different car, the 1994 Plymouth Sundance, 1994 Plymouth Acclaim, 1994 Dodge Spirit, 1994 Dodge Shadow, and 1994 Chrysler LeBaron. However, it is still accessible from the selected car via links, so may be relevant.
  1. Each engine combines 2 types of thrust bearings. One type uses positioning tabs; other does not. See Fig 1. One of each is installed in cylinder block at main bearing No. 3 and in main bearing cap No. 3.
  2. One thrust bearing without tab is installed at front (timing belt side) of cylinder block at bearing No. 3 and one thrust bearing with tab is installed at rear (flywheel side) of block at main bearing No. 3.
  3. Install thrust bearings in main bearing cap No. 3 in reverse order. Thrust bearing without tab is installed in bearing cap facing rear (flywheel side) of engine; thrust bearing with tab is installed at front (timing belt side) of main bearing cap assembly.

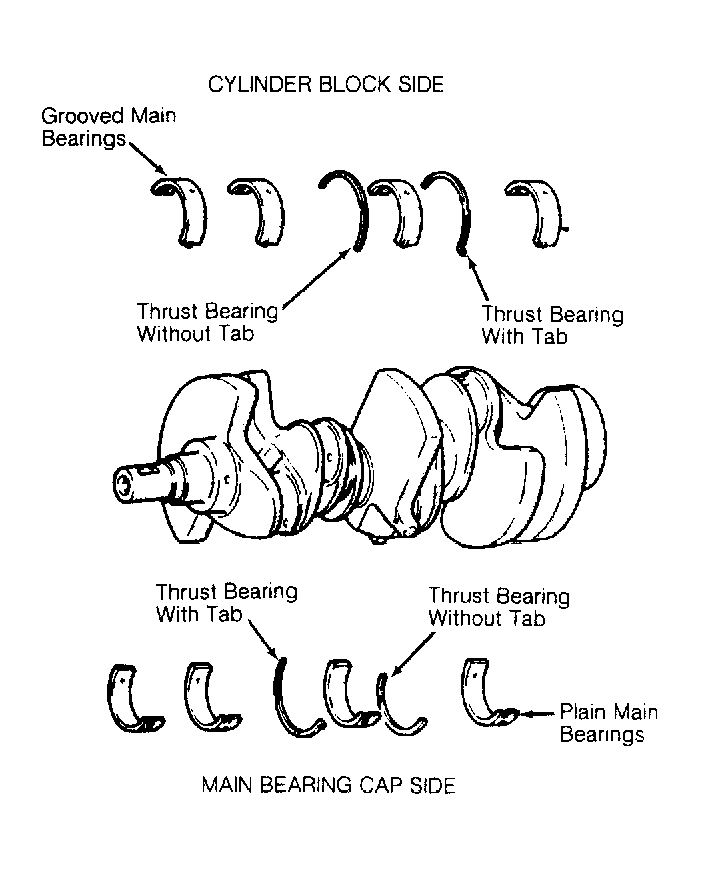

Fig 1: Installing Crankshaft Main & Thrust Bearing
G91H07910Courtesy of CHRYSLER CORP.
