Test 14B - No Response Message

WARNING: This page is about a different car, the 1994 Chrysler LeBaron. However, it is still accessible from the selected car via links, so may be relevant.

FUSE IDENTIFICATION

Application	Fuse No.
LeBaron Convertible	16

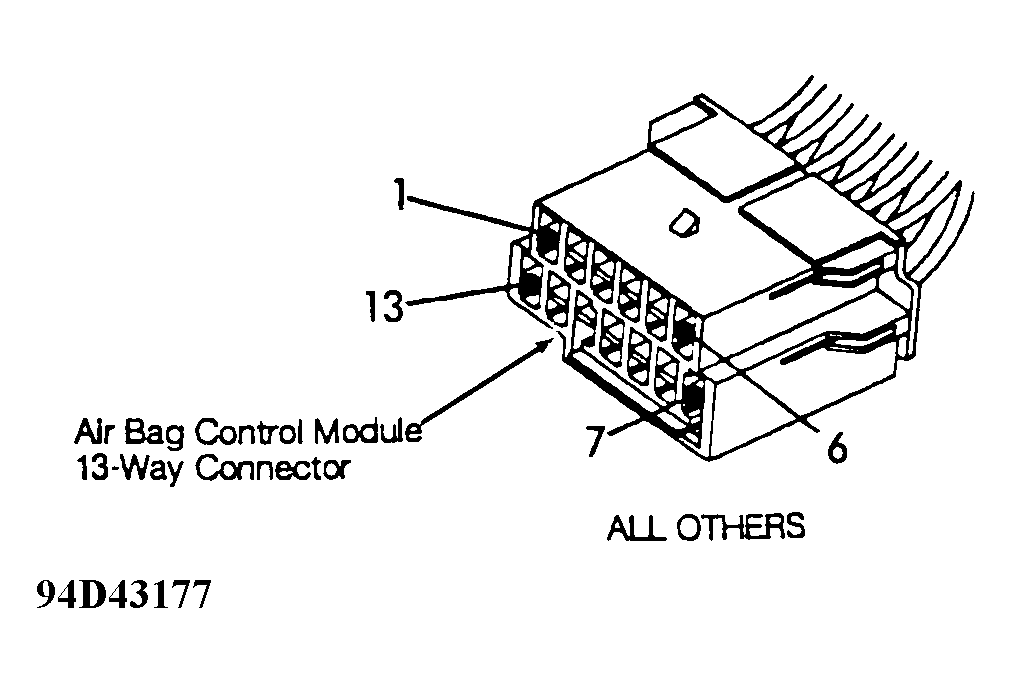

Fig 1: Air Bag Control Module (13-Way Connector)

Fig 2: Test 14B - Diagnostic Flowchart (1 Of 2)

Fig 3: Test 14B - Diagnostic Flowchart (2 Of 2)
