Ignition Switch: Removal
WARNING: This page is about a different car, the 1994 Plymouth Sundance, 1994 Plymouth Acclaim, 1994 Dodge Spirit, 1994 Dodge Shadow, and 1994 Chrysler LeBaron. However, it is still accessible from the selected car via links, so may be relevant.

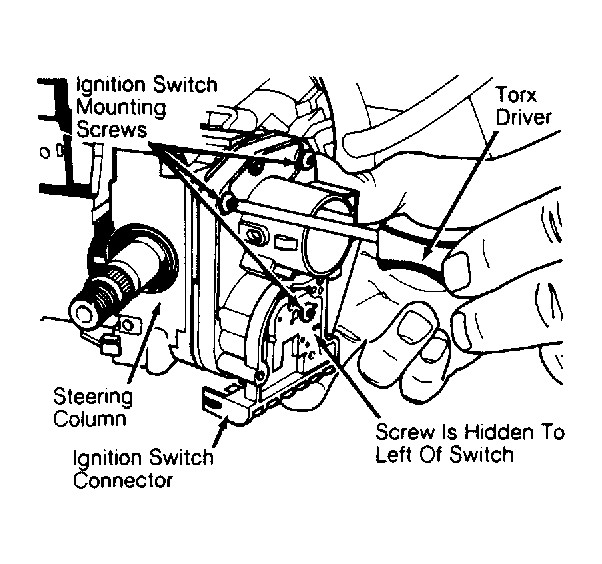

Disconnect negative battery cable. Ensure gear select lever is in Park position. On tilt column, remove tilt lever by turning counterclockwise. On all columns, remove steering column covers. Disconnect harness connector from ignition switch. See Fig 1 . Remove ignition switch mounting screws. Pull ignition switch straight outward from steering column.
