Wiring Diagrams

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 1994 Plymouth Sundance, 1994 Plymouth Acclaim, 1994 Eagle Vision, 1994 Dodge Spirit, and 1994 Dodge Shadow. However, it is still accessible from the selected car via links, so may be relevant.

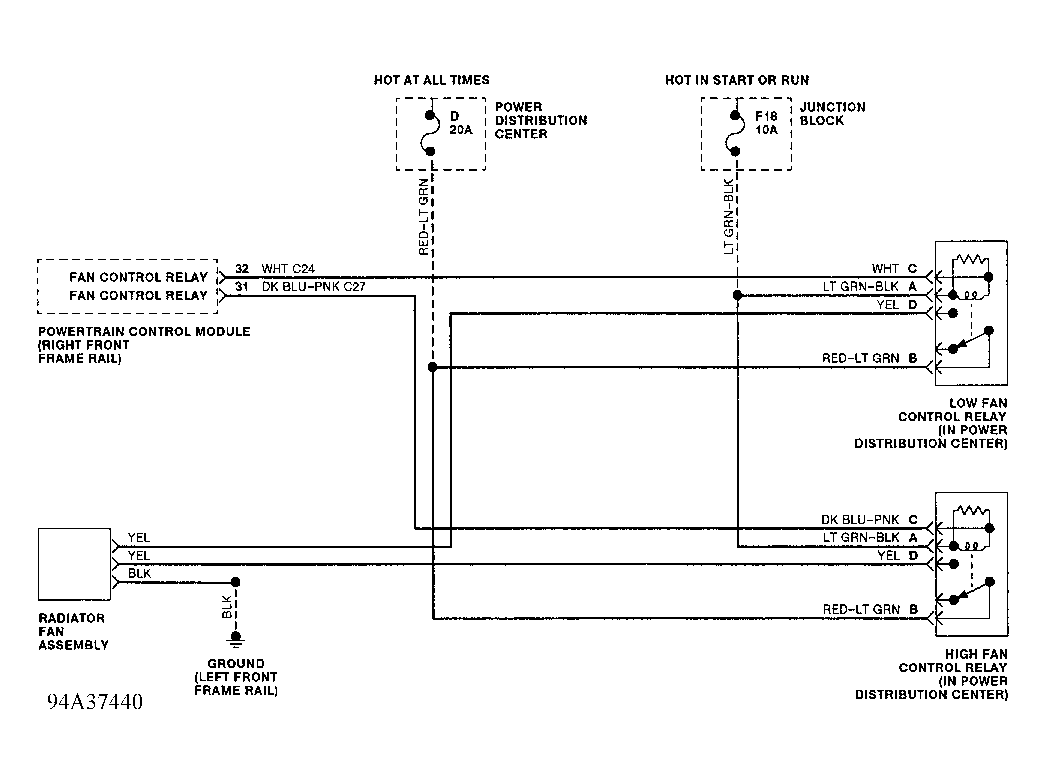

Fig 1: Wiring Diagram (Acclaim, LeBaron Sedan & Spirit)

Courtesy of CHRYSLER CORP.

Fig 2: Wiring Diagram (Concorde, Intrepid, LHS, New Yorker & Vision)

Courtesy of CHRYSLER CORP.

Fig 3: Wiring Diagram (LeBaron Convertible)

Courtesy of CHRYSLER CORP.

Fig 4: Wiring Diagram (Shadow & Sundance)

Courtesy of CHRYSLER CORP.
