Acclaim, LeBaron, Shadow, Spirit & Sundance
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 1994 Plymouth Sundance, 1994 Plymouth Acclaim, 1994 Eagle Vision, 1994 Dodge Spirit, and 1994 Dodge Shadow. However, it is still accessible from the selected car via links, so may be relevant.
- To check radiator fan relay, turn ignition on and check for battery voltage at ignition switch circuit terminal at radiator fan relay. See IGNITION SWITCH CIRCUIT WIRE COLOR IDENTIFICATION table. If battery voltage exists, go to next step. If voltage is 0-1 volt, go to step 3).

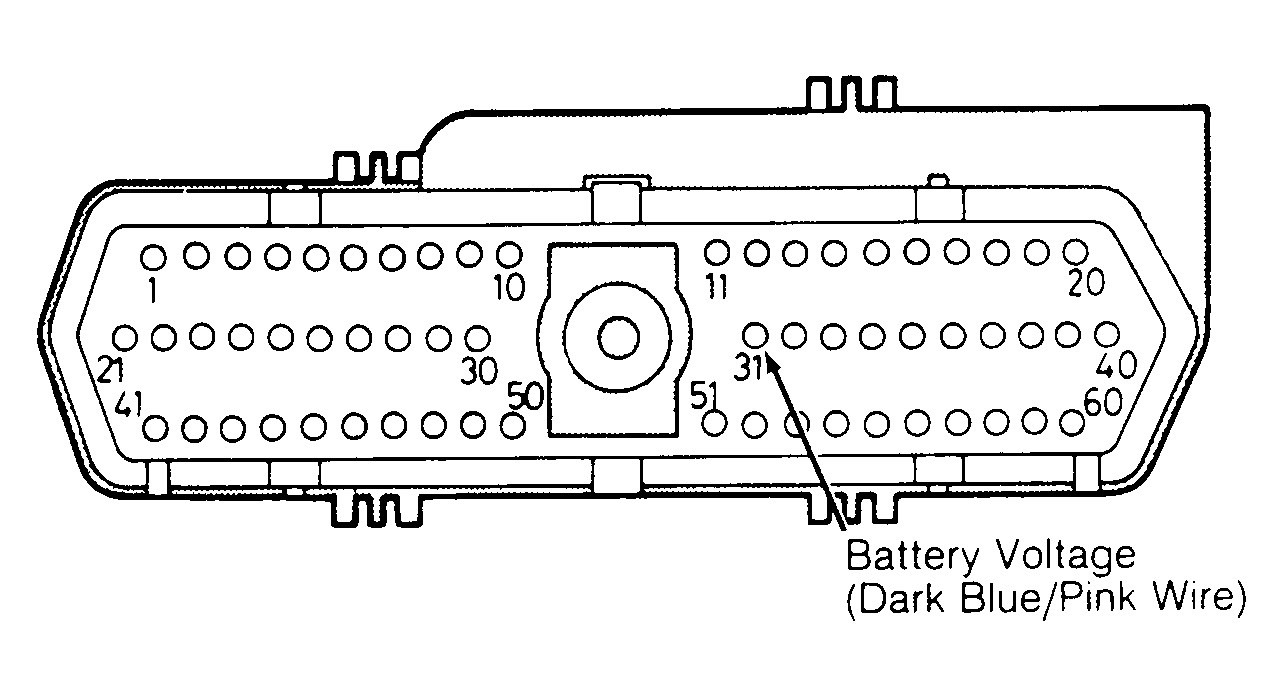

- With ignition off, disconnect 60-pin connector from PCM. PCM is located on left front corner of engine compartment. Turn ignition on. Check for battery voltage at cavity No. 31 (Dark Blue/Pink wire) of connector. See Fig 1 . If battery voltage exists and female terminal is not damaged, replace PCM. If voltage does not exist, repair open or short in Dark Blue/Pink wire from radiator fan relay to PCM.
- With ignition off, disconnect 60-pin connector from PCM. PCM is located on left front corner of engine compartment. Turn ignition on. Check for battery voltage at proper wire color of radiator fan relay. See IGNITION SWITCH CIRCUIT WIRE COLOR IDENTIFICATION table. If battery voltage exists, replace PCM. If voltage reading is 0-1 volt, go to next step.
- With ignition on, test for battery voltage at Dark Blue/Pink wire at radiator fan relay. If battery voltage exists, replace radiator fan relay. If voltage does not exist, repair open or short in Dark Blue/Pink wire between radiator fan relay and PCM. Turn ignition off, reconnect 60-pin connector to PCM and test system.IGNITION SWITCH CIRCUIT WIRE COLOR IDENTIFICATION
Application Wire Color Acclaim, LeBaron, Shadow, Spirit & Sundance Dark Blue Concorde, Intrepid, LHS, New Yorker & Vision Light Green/Black
