Starter Motor Noise

WARNING: This page is about a different car, the 1995 Jeep Wrangler, 1995 Jeep Grand Cherokee, and 1995 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: To diagnose starter motor noise, see Fig 1 .

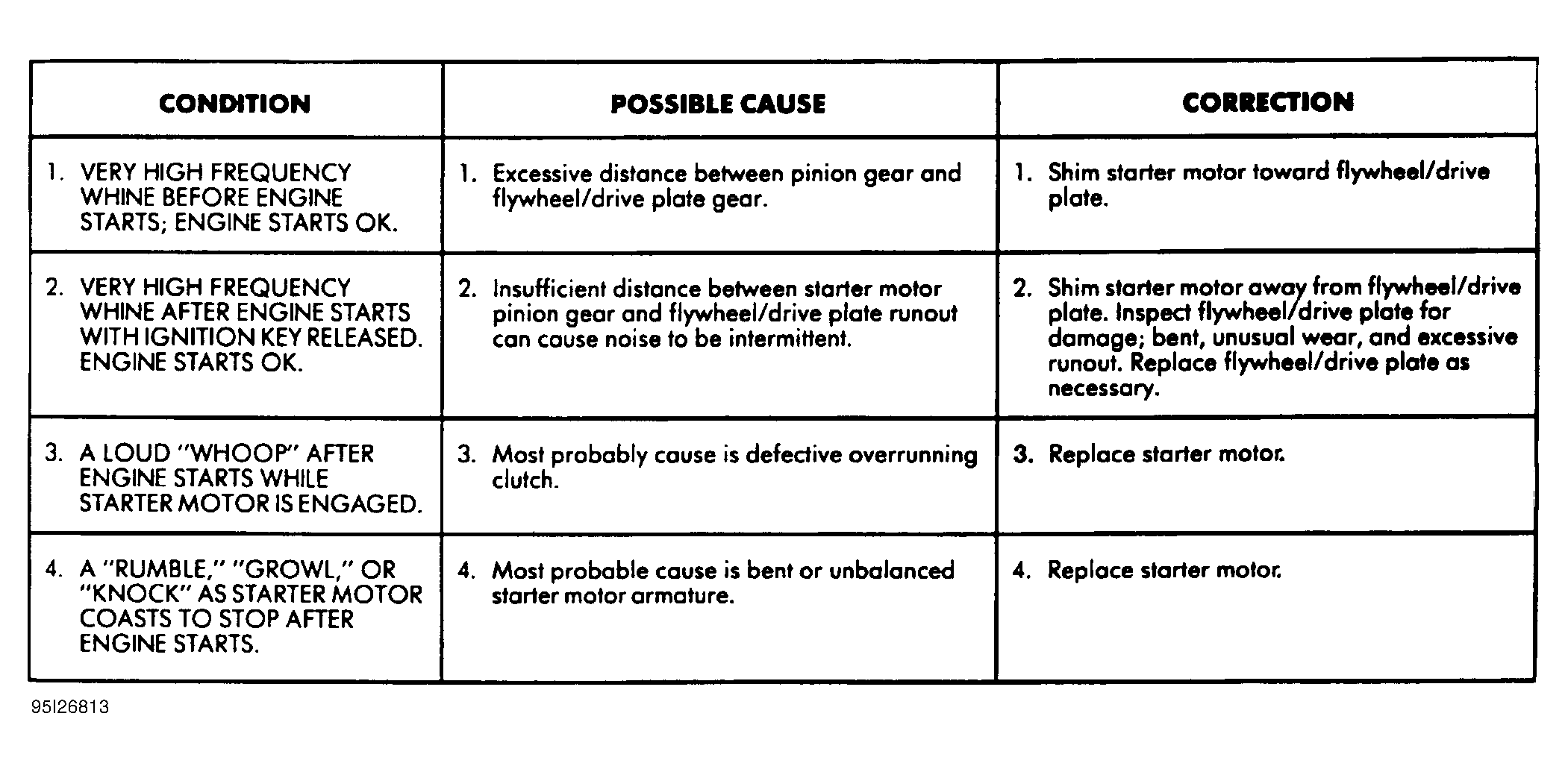

Fig 1: Diagnosing Starter Motor Noise
G95I26813Courtesy of CHRYSLER CORP.
