Removal & Installation (2.5L)

WARNING: This page is about a different car, the 1995 Jeep Wrangler, 1995 Jeep Grand Cherokee, and 1995 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative battery cable. Remove exhaust pipe clamp from bracket. See Fig 1 . On Cherokee with automatic transmission, remove nut and bolt from forward end of brace rod. Remove brace rod and bracket.
On vehicles with manual transmission, remove nut, bolt and bracket from bellhousing. On all models, disconnect battery cable and solenoid feed wire from starter solenoid. Remove starter. To install, reverse removal procedure.

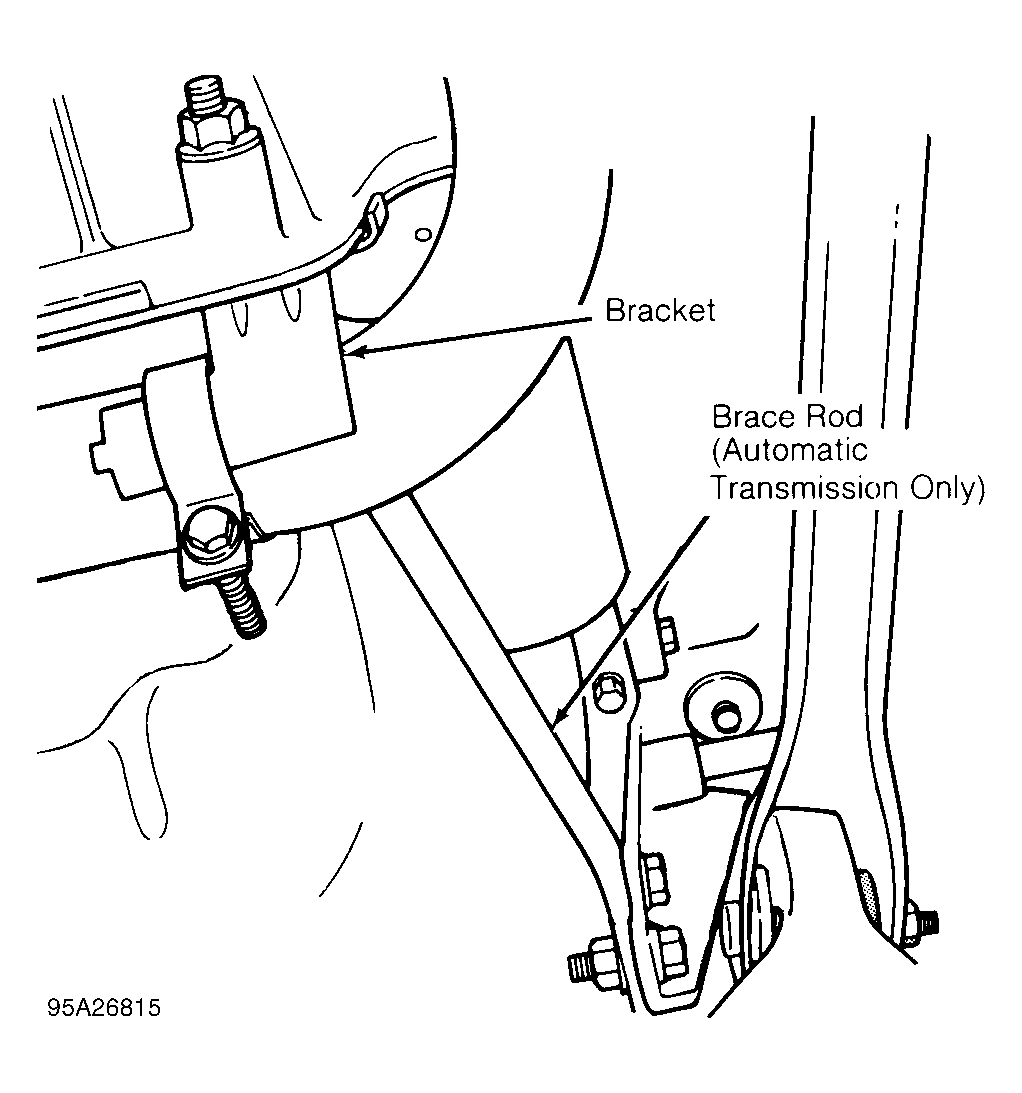

Fig 1: Removing Engine Exhaust Clamp & Brace (2.5L)

Courtesy of CHRYSLER CORP.
