Transmission Control Module (TCM): Removal

WARNING: This page is about a different car, the 1995 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

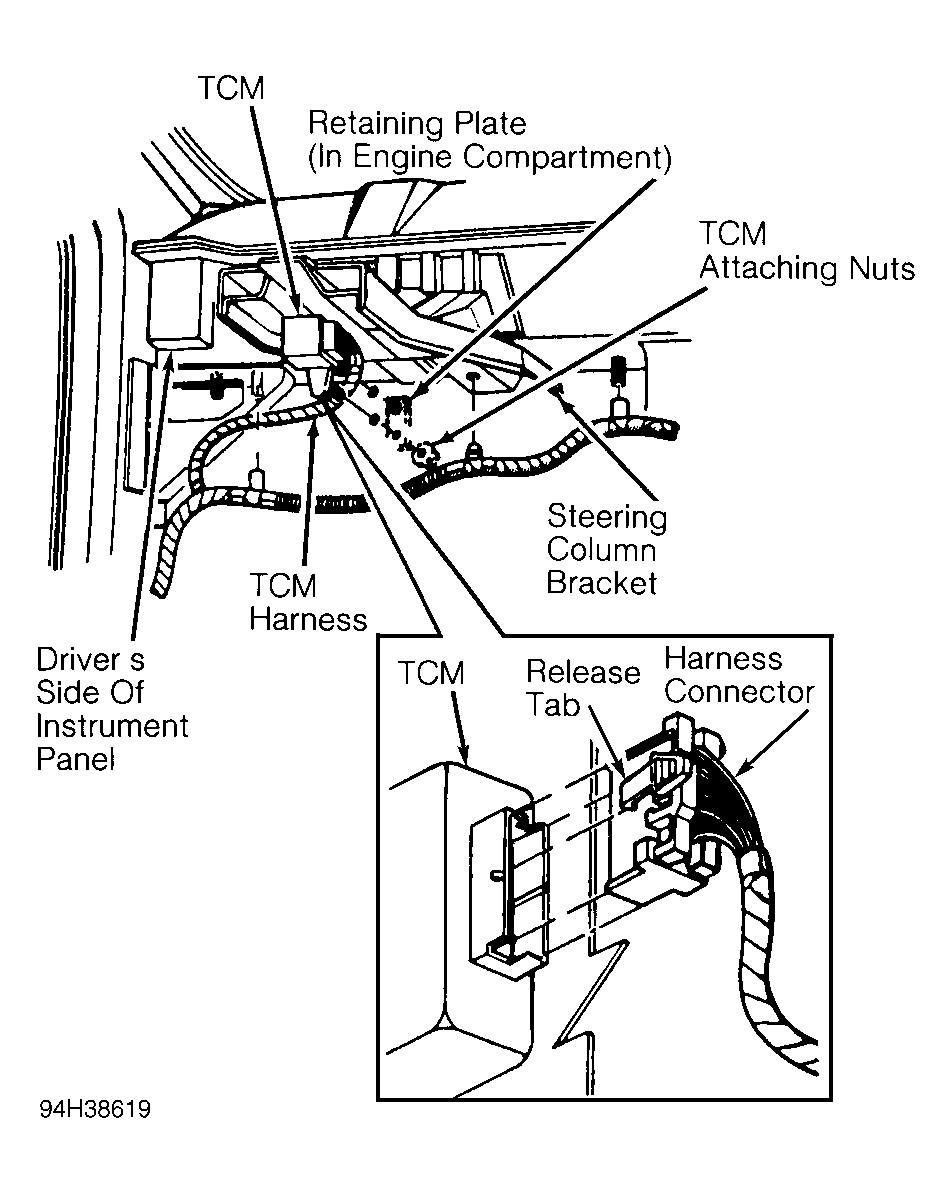

  1. Disconnect negative battery cable. From engine compartment, remove TCM attaching nuts that secures retaining plate and the TCM to the bulkhead. See Figure .
  2. From below driver's side of instrument panel, lower TCM until harness connector is accessible. Lift release tab on harness connector upward. See Figure . Disconnect harness connector from TCM.
