Connector Identification

WARNING: This page is about a different car, the 1995 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

CONNECTOR IDENTIFICATION DIRECTORY

Description	Illustration
Engine DLC	See Fig 3
OD OFF Switch	See Fig 1
Output Speed Sensor	See Fig 2
Powertrain Control Module Location	See Fig 3
Powertrain Control Module	See Fig 4
Throttle Position Sensor	See Fig 5
Transmission Control Module	See Fig 6
Transmission 8-Pin Connector	See Fig 7

Fig 1: Identifying OD OFF Switch Connector

Courtesy of CHRYSLER CORP.

Fig 2: Identifying Output Speed Sensor Connector

Courtesy of CHRYSLER CORP.

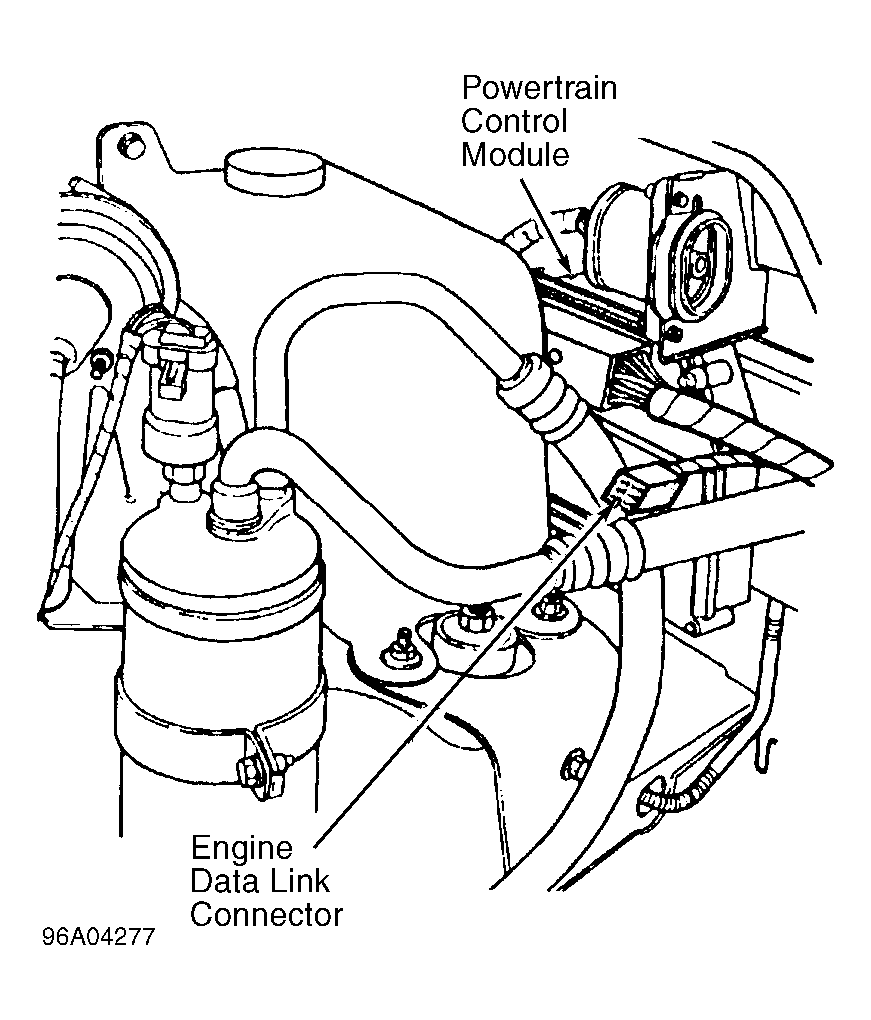

Fig 3: Identifying Engine DLC & Powertrain Control Module Location

Courtesy of CHRYSLER CORP.

Fig 4: Identifying Powertrain Control Module Connector

Courtesy of CHRYSLER CORP.

Fig 5: Identifying Throttle Position Sensor Connector

Courtesy of CHRYSLER CORP.

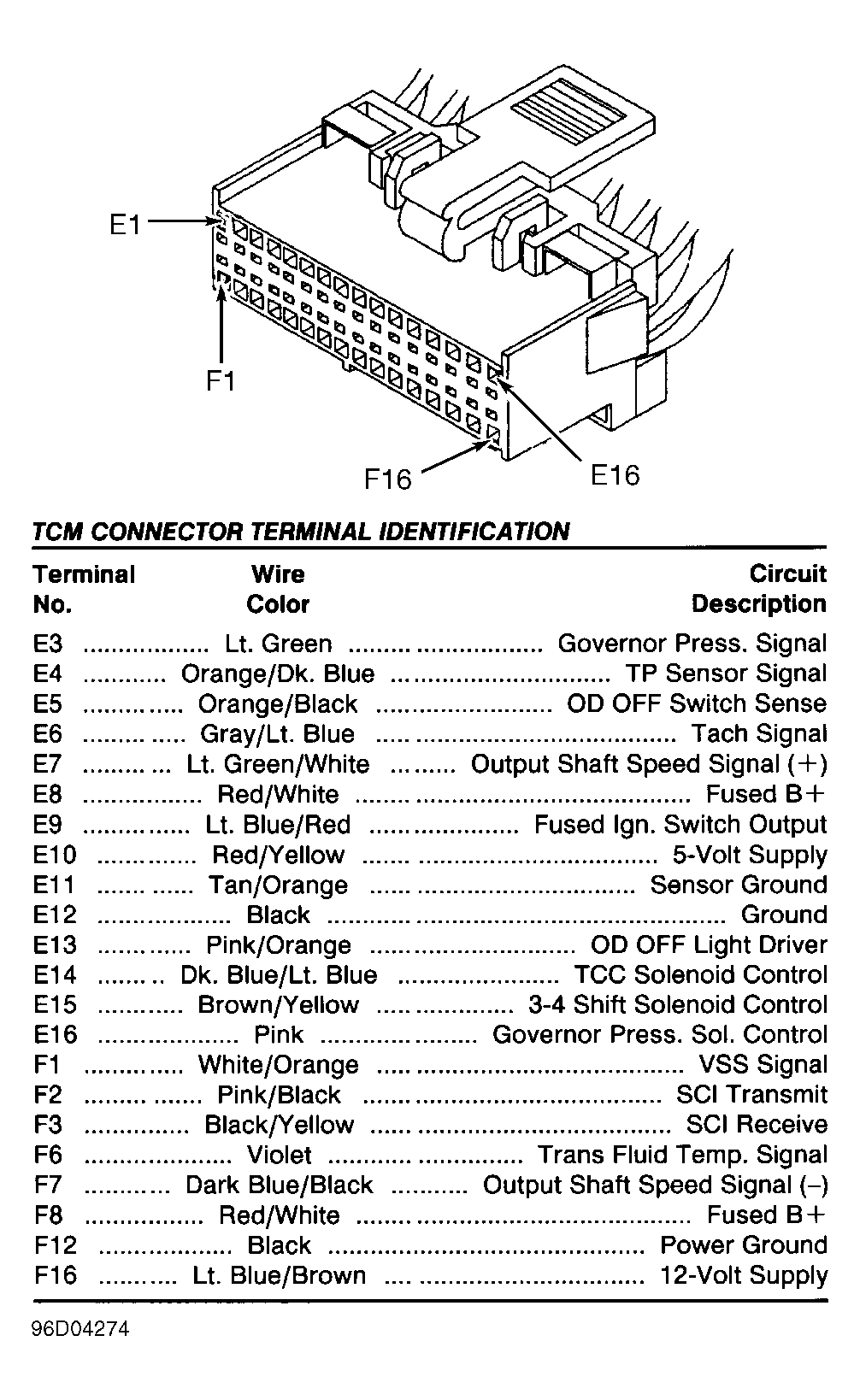

Fig 6: Identifying Transmission Control Module Connector

Courtesy of CHRYSLER CORP.

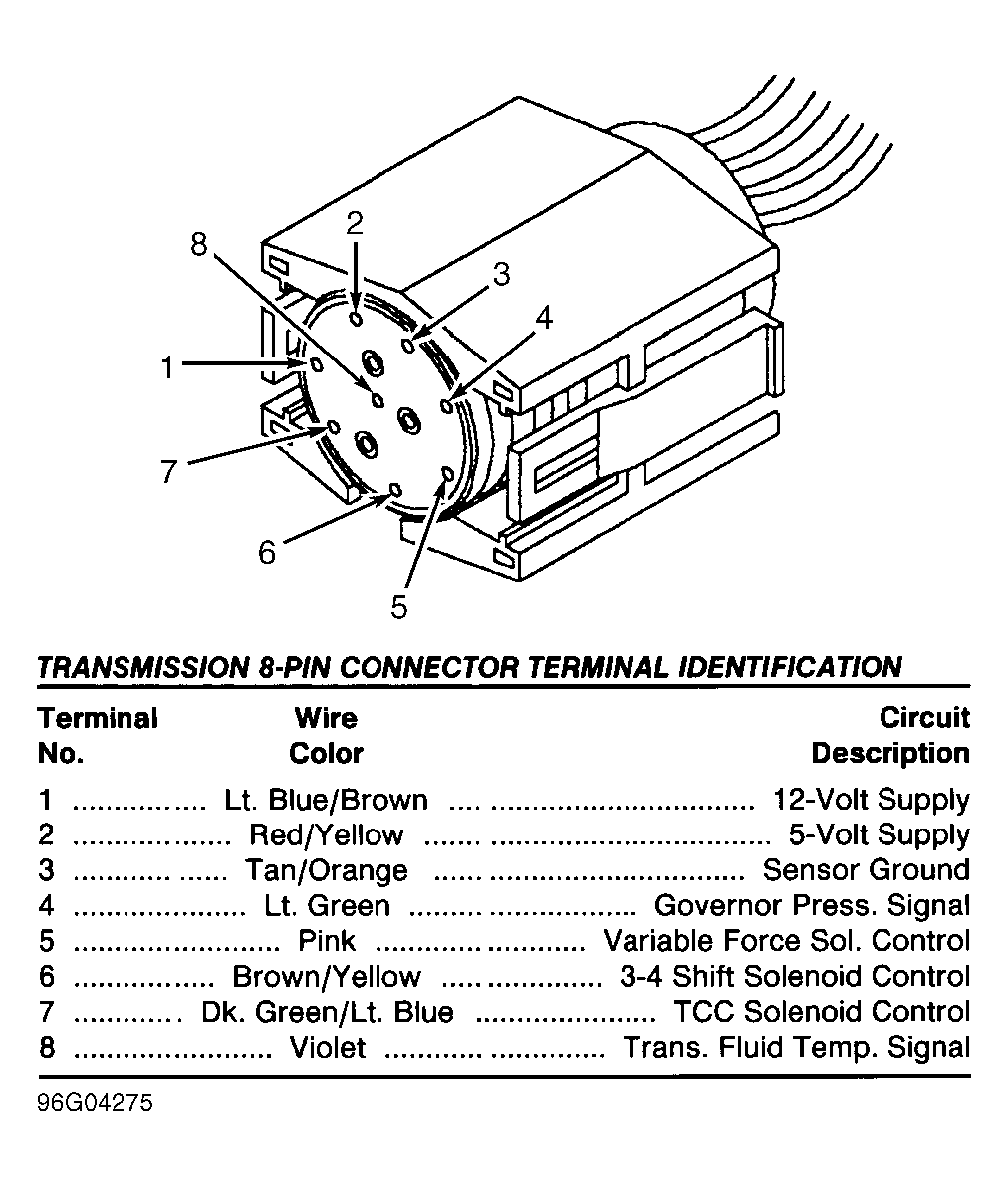

Fig 7: Identifying Transmission 8-Pin Connector

Courtesy of CHRYSLER CORP.

TRANSMISSION 8-PIN CONNECTOR TERMINAL IDENTIFICATION

Terminal No.	Wire Color	Circuit Description
1	Lt. Blue/Brown	12-Volt Supply
2	Red/Yellow	5-Volt Supply
3	Tan/Orange	Sensor Ground
4	Lt. Green	Governor Press. Signal
5	Pink	Variable Force Solenoid Control
6	Brown/Yellow	3-4 Shift Solenoid Control
7	Dk. Green/Lt. Blue	TCC Solenoid Control
8	Violet	Trans. Fluid Temp Signal

TCM CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Circuit Description
E3	Lt. Green	Governor Press. Signal
E4	Orange/Dk. Blue	TP Sensor Signal
E5	Orange/Black	OD OFF Switch Sense
E6	Gray/Lt. Blue	Tach Signal
E7	Lt. Green/White	Output Shaft Speed Signal (+)
E8	Red/White	Fused B(+)
E9	Lt. Blue/Red	Fused Ign. Switch Output
E10	Red/Yellow	5-Volt Supply
E11	Tan/Orange	Sensor Ground
E12	Black	Ground
E13	Pink/Orange	OD OFF Light Driver
E14	Dk. Blue/Lt. Blue	TCC Solenoid Control
E15	Brown/Yellow	3-4 Shift Solenoid Control
E16	Pink	Governor Press. Sol. Control
F1	White/Orange	VSS Signal
F2	Pink/Black	SCI Transmit
F3	Black/Yellow	SCI Receive
F6	Violet	Trans Fluid Temp. Signal
F7	Dark Blue/Black	Output Shaft Speed Signal (-)
F8	Red/White	Fused B(+)
F12	Black	Power Ground
F16	Lt. Blue/Brown	12-Volt Supply
