30RH & 32RH Transmissions

WARNING: This page is about a different car, the 1995 Jeep Wrangler, 1995 Jeep Grand Cherokee, and 1995 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

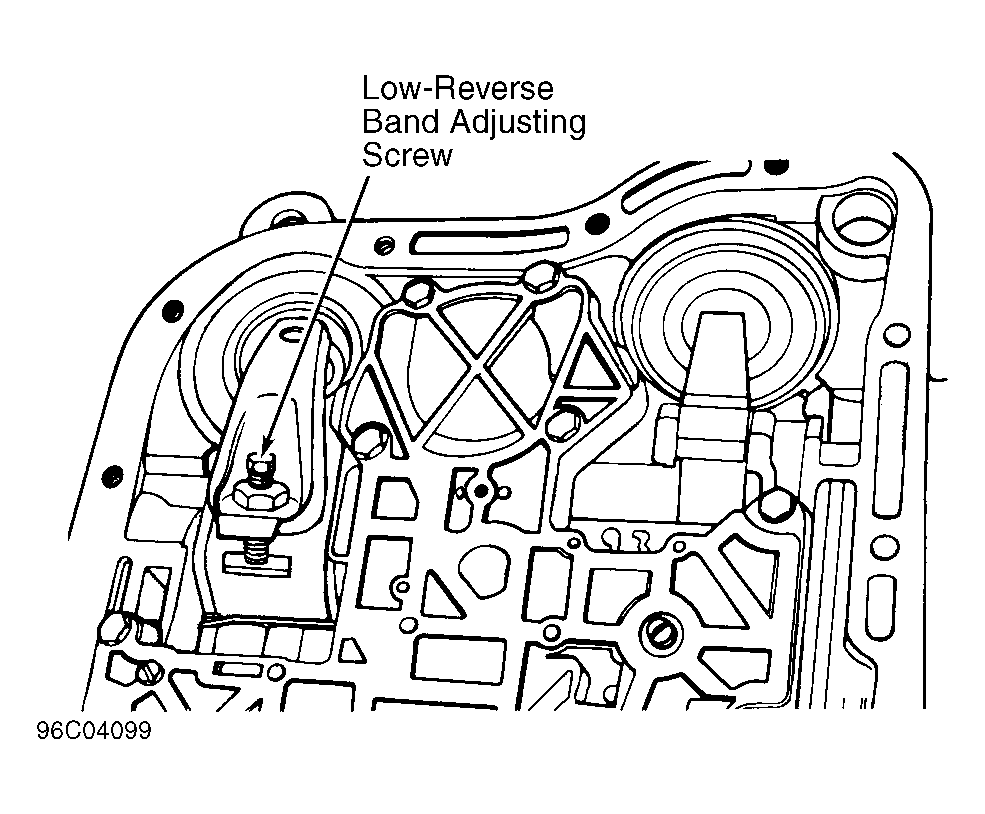

  1. Raise vehicle, drain transmission fluid and remove oil pan. Locate adjusting screw on rear servo lever. See Figure. Ensure lock nut is backed off on rear band adjusting screws. On 30RH, tighten rear band adjusting screw to 41 INCH lbs. (4.6 N.m). Loosen rear band adjusting screw 7 turns. Tighten lock nut on rear band adjusting screw to specification.
  2. On 32RH, tighten rear band adjusting screws to 72 INCH lbs. (8.1 N.m). Loosen rear band adjusting screw 4 turns. Tighten lock nut on rear band adjusting screw to specification. Install oil pan and fill transmission with fluid.
