30RH & 32RH Transmissions

WARNING: This page is about a different car, the 1995 Jeep Wrangler, 1995 Jeep Grand Cherokee, and 1995 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

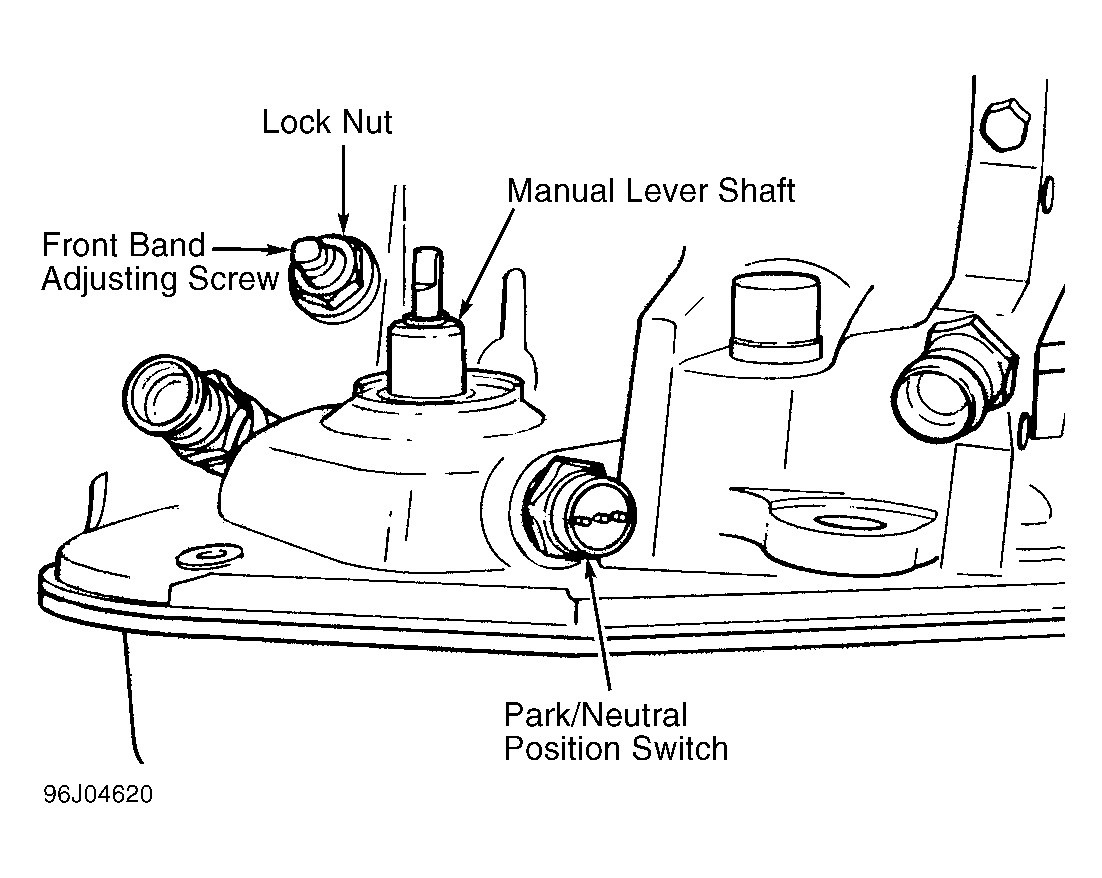

  1. On 30RH, tighten front band adjusting screw to 72 INCH lbs. (8.1 N.m). Loosen front band adjusting screw 2 1/2 turns. See Figure. Tighten lock nut on front band adjusting screw to specification .
  2. On 32RH, tighten front band adjusting screw to 72 INCH lbs. (8.1 N.m). Loosen front band adjusting screw 2 1/4 turns on 1995 Cherokee and Wrangler or 2 1/2 turns on all other models. On all models, tighten lock nut on front band adjusting screw to specification.
