Removal & Installation (AP Body)
WARNING: This page is about a different car, the 1994 Plymouth Sundance and 1994 Dodge Shadow. However, it is still accessible from the selected car via links, so may be relevant.

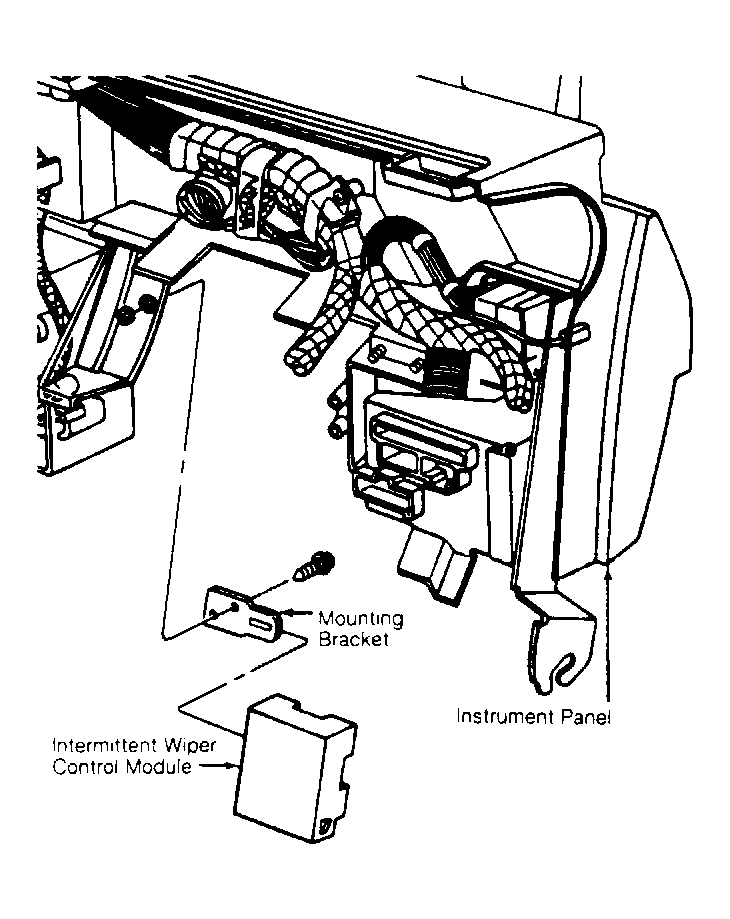

Pulse Intermittent Windshield Wiper Controller (PIWWC) is attached to bracket on right side of dash. See Fig 1 . Disconnect PIWWC connector. Remove mounting bolts and PIWWC. To install, reverse removal procedure.
