Wiper Arm Adjustment
WARNING: This page is about a different car, the 1994 Plymouth Acclaim, 1994 Dodge Spirit, and 1994 Chrysler LeBaron. However, it is still accessible from the selected car via links, so may be relevant.

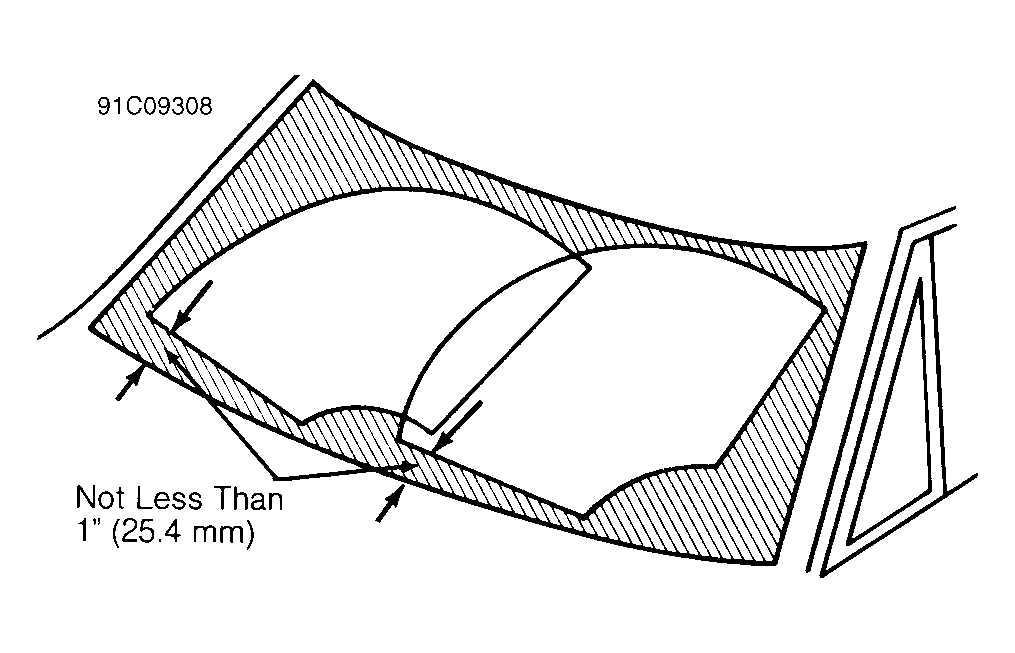

With wiper arms removed, cycle wiper motor into park position. Mount arms on pivot shafts. Locate tips of wiper blades at least 1" (25.4 mm) from bottom of windshield. Check linkage and pivot assembly for wear if blades do not return to this location after operation. See Fig 1 .
