Air Bag Disabling

WARNING: This page is about a different car, the 1995 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: BEFORE servicing ANY steering column or air bag component, disconnect and shield negative (ground) battery cable. DO NOT  use any power driven tools while working near or with air bag.
  1. After disconnecting negative battery cable, wait 2 minutes to allow air bag system capacitor to deplete its residual charge.
  2. Remove 4 nuts attaching air bag module from back of steering wheel. Remove air bag module and cruise control switch (if equipped) and disconnect wire feeds. See Fig 1 . To enable air bag, reverse disable procedure.

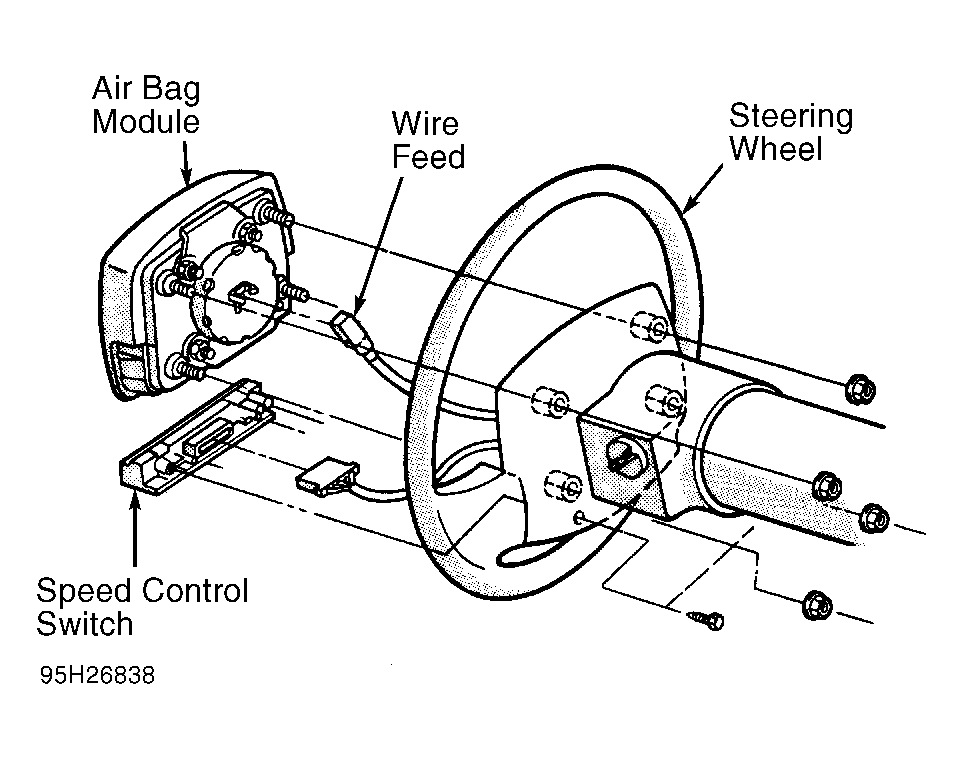

Fig 1: Removing Air Bag Module and Cruise Control Switch
G95H26838Courtesy of CHRYSLER CORP.
