Connector Identification

WARNING: This page is about a different car, the 1995 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying CCD Data Link Connector

Courtesy of CHRYSLER CORP.

Fig 2: Identifying Liftgate Latch Connector

Courtesy of CHRYSLER CORP.

Fig 3: Identifying Mechanical Instrument Cluster Connector

Courtesy of CHRYSLER CORP.

Fig 4: Identifying Liftgate Key Cylinder Switch Connector

Courtesy of CHRYSLER CORP.

Fig 5: Identifying Powertrain Control Module Connector

Courtesy of CHRYSLER CORP.

Fig 6: Identifying Remote Keyless Entry Module Connector

Courtesy of CHRYSLER CORP.

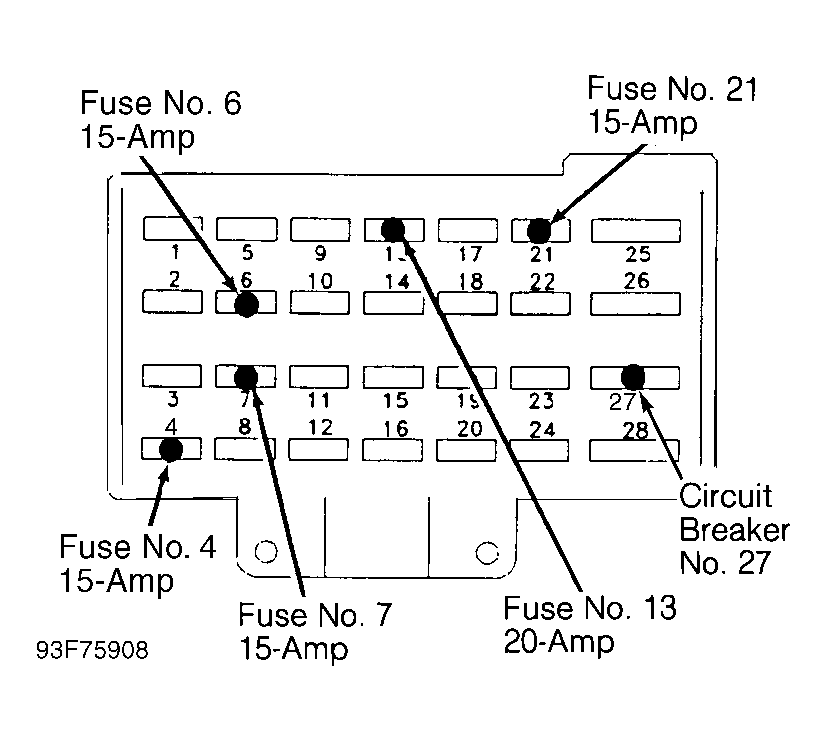

Fig 7: Identifying Vehicle Fuse Block

Courtesy of CHRYSLER CORP.

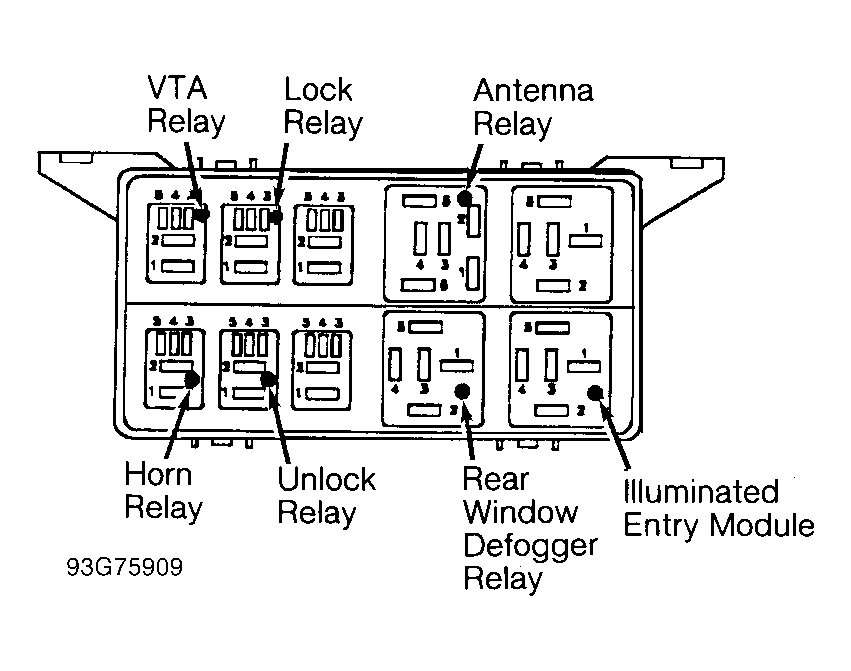

Fig 8: Identifying Vehicle Relay Center

Courtesy of CHRYSLER CORP.

Fig 9: Identifying Vehicle Theft Alarm Module Connector

Courtesy of CHRYSLER CORP.
