Installation (All Models)
WARNING: This page is about a different car, the 1994 Eagle Vision, 1994 Dodge Intrepid, 1994 Chrysler New Yorker, 1994 Chrysler LHS, and 1994 Chrysler Concorde. However, it is still accessible from the selected car via links, so may be relevant.
- Install park brake cable assembly, through cable mounting in park brake pedal mechanism.

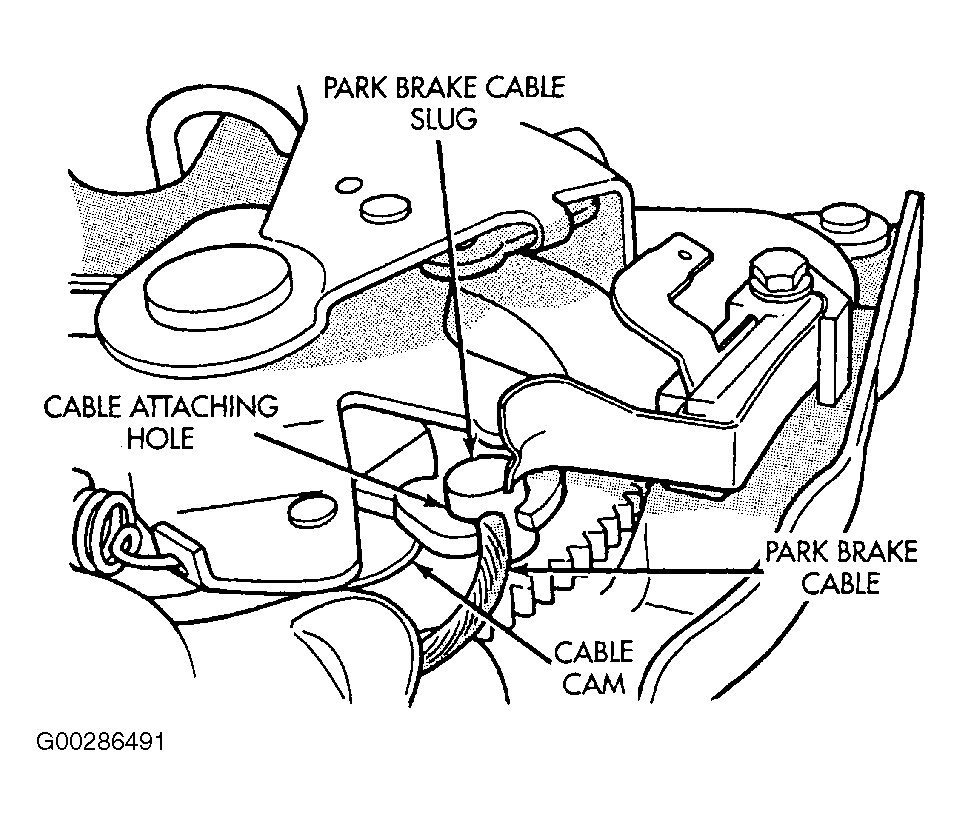

- Align park brake cable slug with attaching hole on park brake assembly. Install park brake cable into cable attaching hole in park brake assembly, and rotate cable into place. Be sure cable is properly seated in the cam surface track of foot lever assembly. See Fig 1 .
- Install park brake cable to park brake pedal mechanism retaining clip. Be sure retaining clip is fully installed on park brake cable.
- Install park brake pedal mechanism onto the 2 loosened mounting bolt on cowl panel. Install the park brake pedal assembly retaining bolt into door frame. Torque all 3 park brake assembly mounting bolts to 19 ft. lbs (27 N.m).
- Connect the brake warning light wire from vehicles wiring harness, onto switch located on park brake pedal mechanism.
- Route front park brake cable along floor of vehicle. Install end of front park brake cable into mounting hole in reaction bracket. Install front park brake cable to reaction bracket retaining clip. Tap retaining clip with hammer until fully installed on cable. Install front park brake cable into equalizer.
- Install the park brake cable routing clip to floor pan attaching screw. Torque the routing clip to floor pan attaching screw to 35 INCH lbs. (4 N.m). Install front park brake cable into routing clips on floor pan crossmember.
- Ensure that park brake cable is properly routed in cam surface track of park brake pedal assembly. Using a pair of pliers, firmly grasp lock pin previously installed in park brake mechanism. Remove lock pin from park brake pedal mechanism, using a firm and rapid pull. When locking pin is removed from park brake pedal mechanism, the park brake mechanism and park brake cables will automatically adjust. See PARKING/EMERGENCY BRAKE under ADJUSTMENTS.
