Section 193 (Disc & Drum): Overhaul

WARNING: This page is about a different car, the 1994 Eagle Vision, 1994 Dodge Intrepid, 1994 Chrysler New Yorker, 1994 Chrysler LHS, and 1994 Chrysler Concorde. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For overhaul, see appropriate illustrations. See Fig 1 -9.

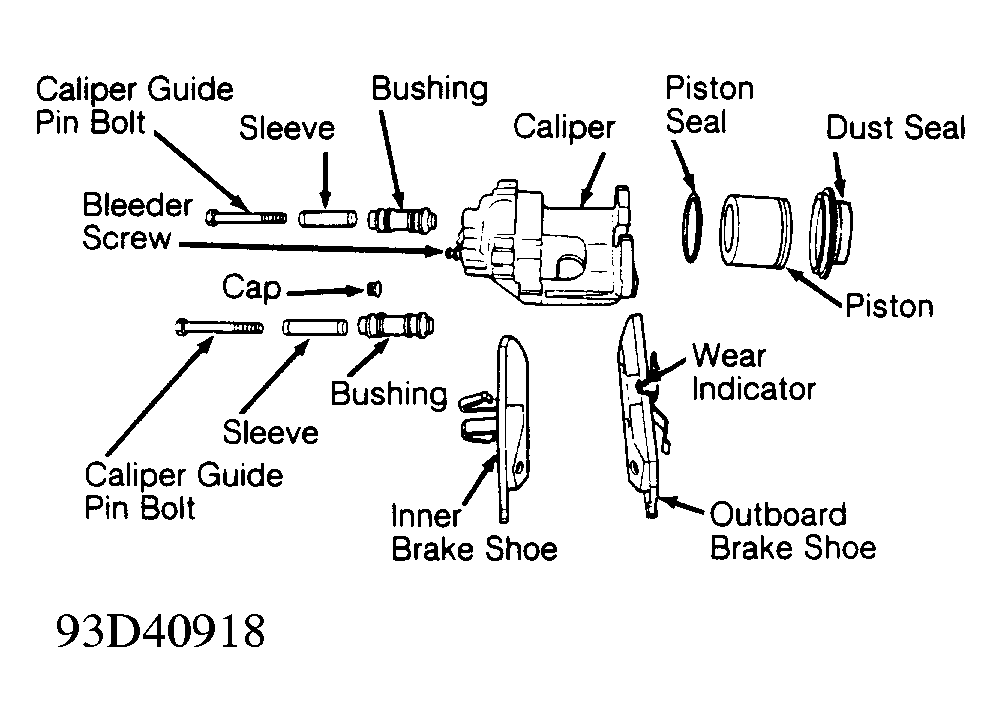

Fig 1: Exploded View Of Front Brake Caliper

G93D40918

Courtesy of CHRYSLER CORP.

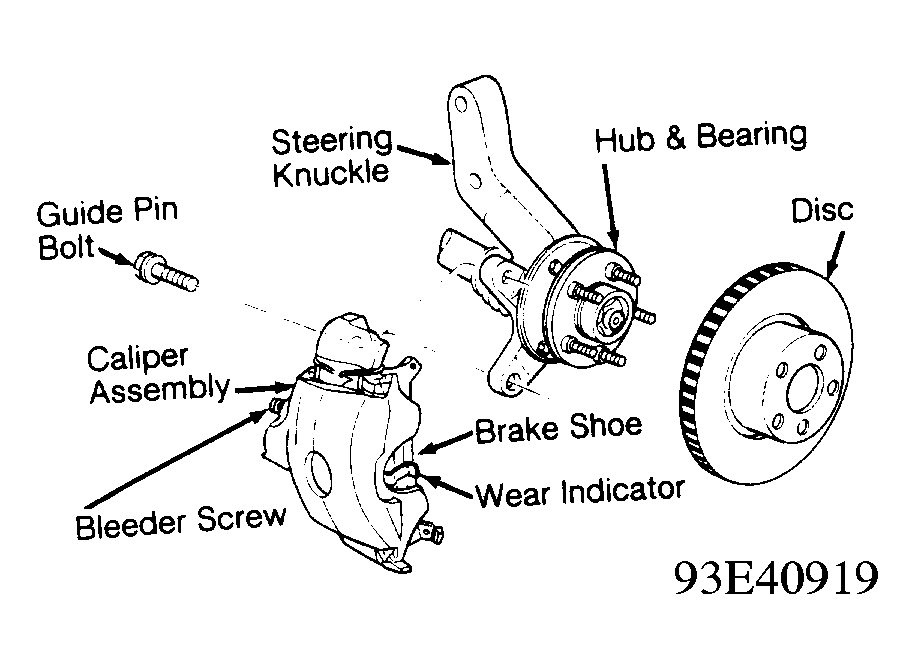

Fig 2: Exploded View Of Front Brake Assembly

G93E40919

Courtesy of CHRYSLER CORP.

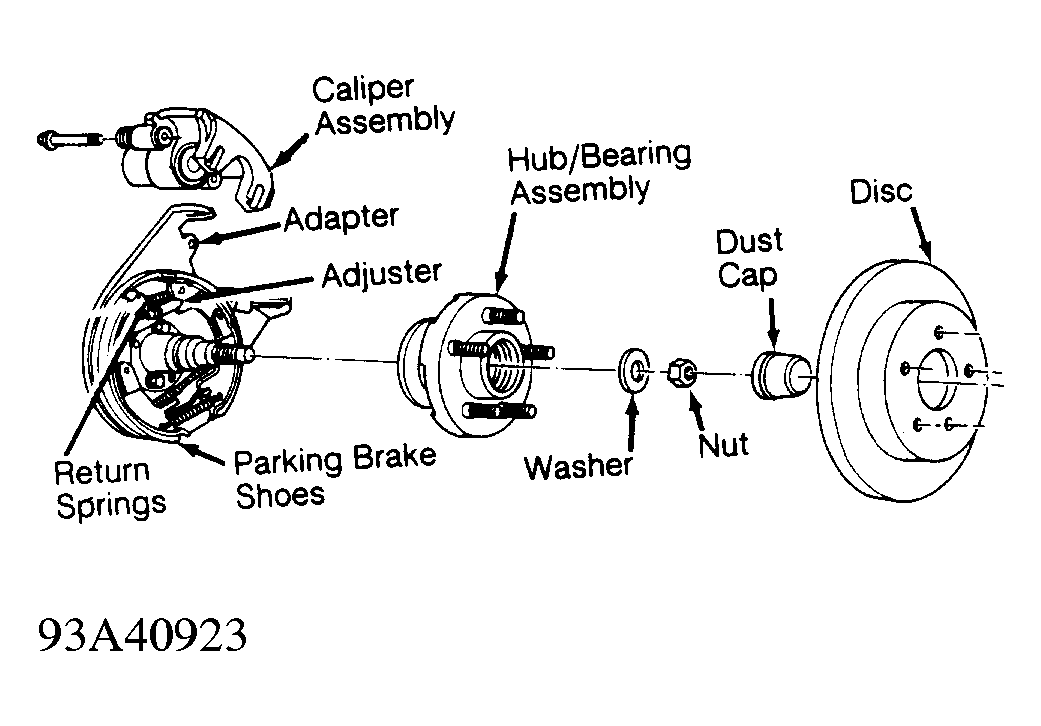

Fig 3: Exploded View Of Rear Brake Assembly (Disc)

G93A40923

Courtesy of CHRYSLER CORP.

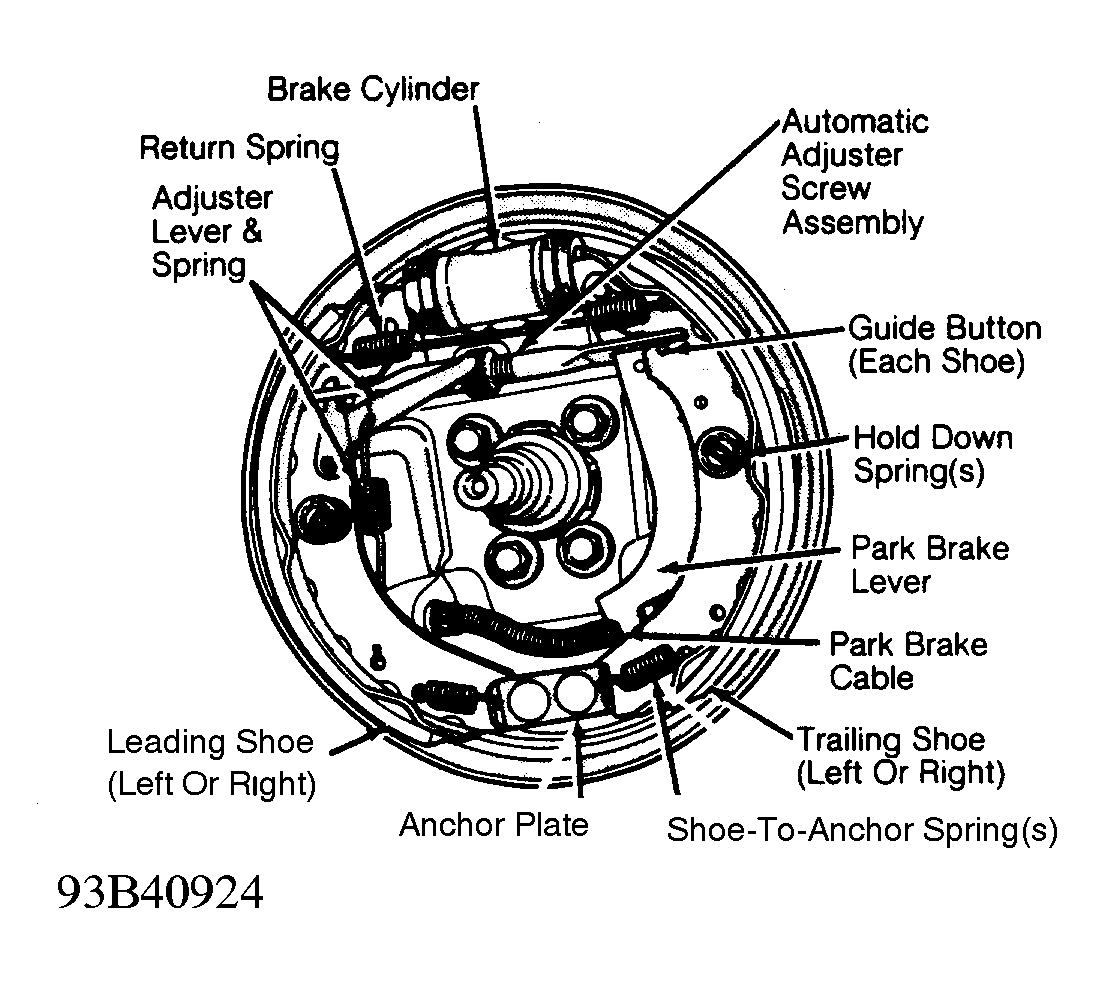

Fig 4: View Of Rear Brake Assembly (Drum)

G93B40924

Courtesy of CHRYSLER CORP.

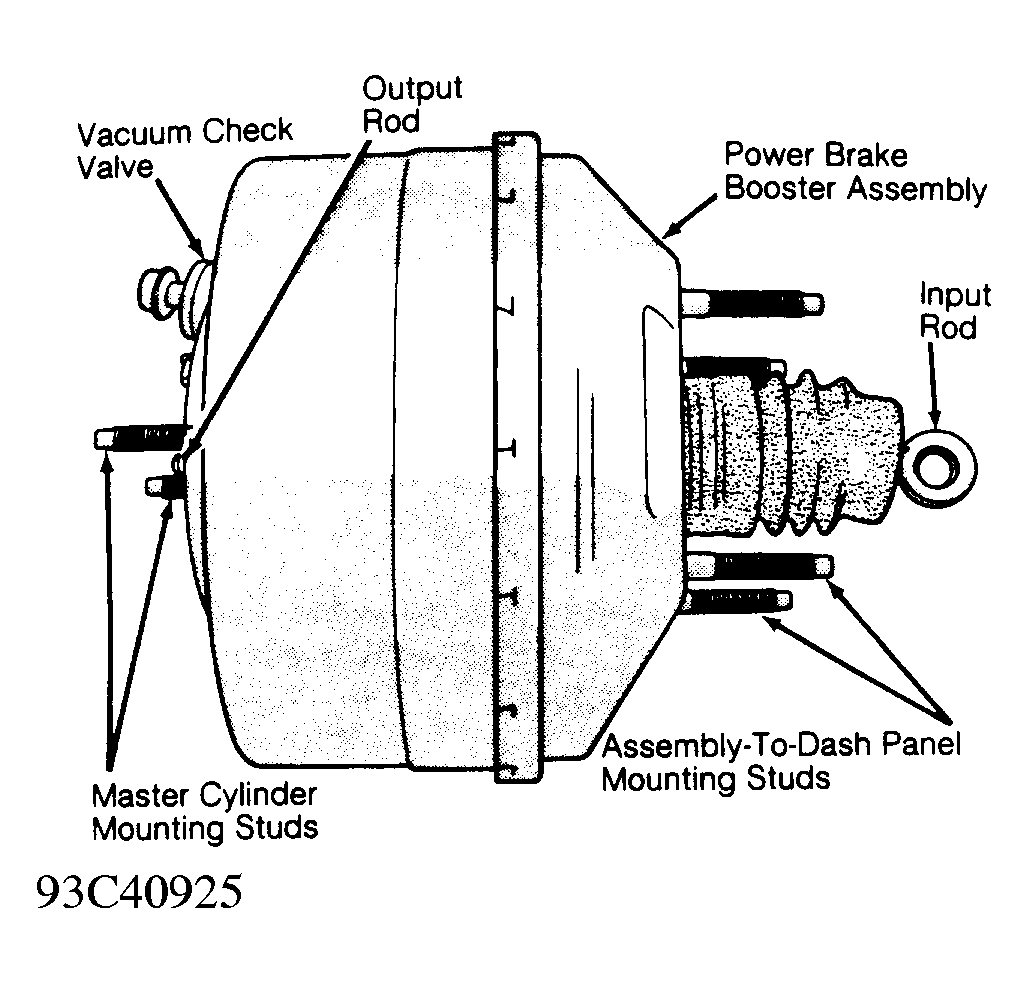

Fig 5: Cross-Sectional View Of Power Booster Assembly

G93C40925

Courtesy of CHRYSLER CORP.

Fig 6: Exploded View Of Master Cylinder

G93D40926

Courtesy of CHRYSLER CORP.

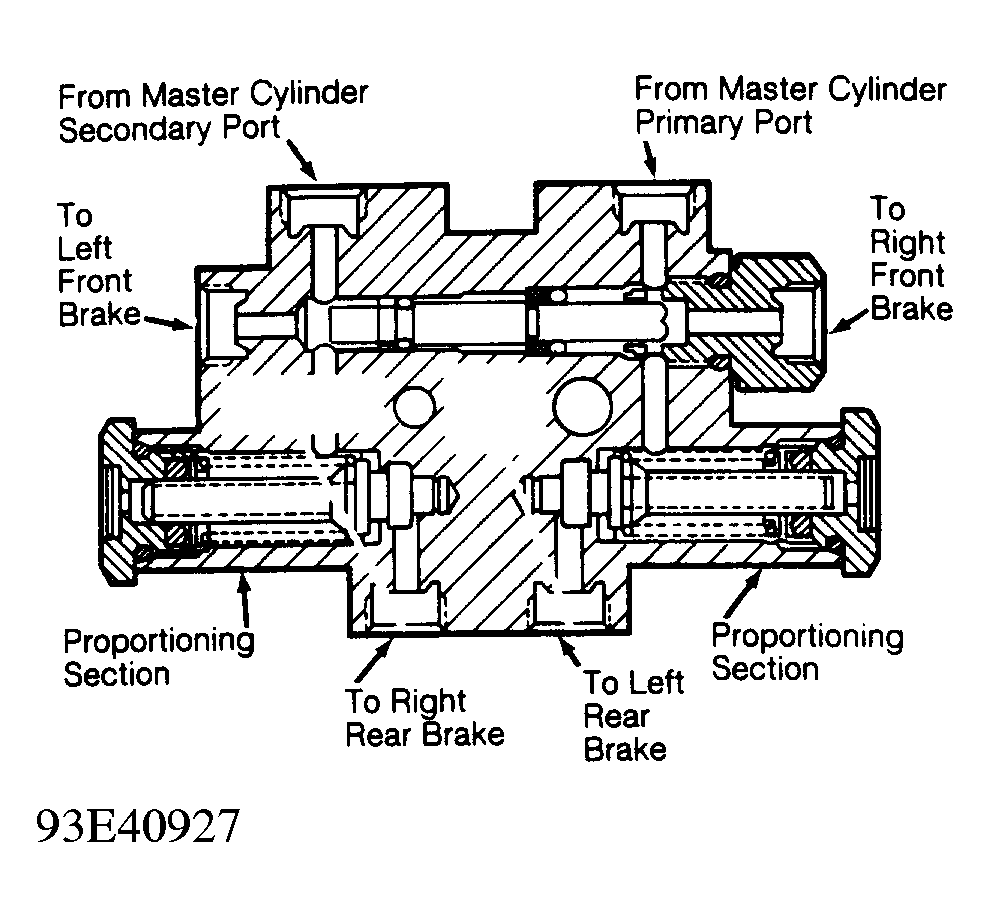

Fig 7: Cross-Sectional View Of Proportioning Valve

G93E40927

Courtesy of CHRYSLER CORP.
