Parking Brake Adjusting Procedure

WARNING: This page is about a different car, the 1994 Eagle Vision, 1994 Dodge Intrepid, 1994 Chrysler New Yorker, 1994 Chrysler LHS, and 1994 Chrysler Concorde. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The parking brake pedal must be in the fully released position when releasing self adjuster.

Be sure that all 3 park brake cables are properly assembled to the equalizer bracket prior to cable adjustment.

Be sure park brake cable is properly seated on the park brake mechanism cam surface. See Fig 1 .

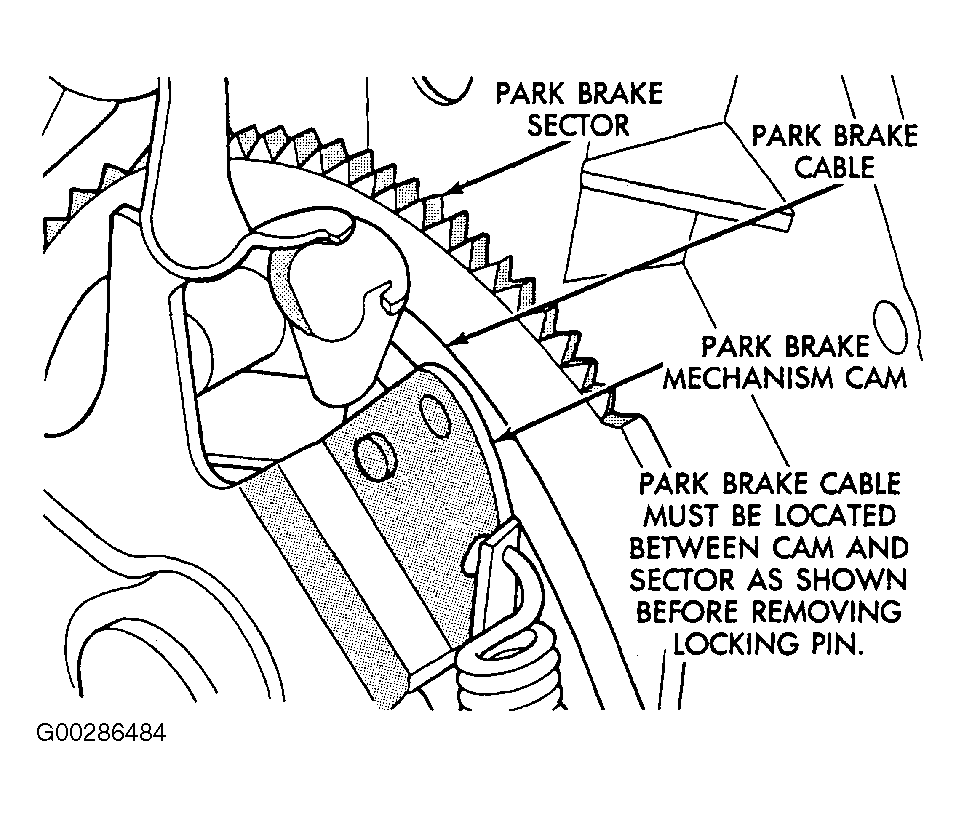

Fig 1: Identifying Park Brake Cable Routing In Pedal

Courtesy of CHRYSLER CORP.

Using a pair of pliers, firmly grasp lock pin previously installed in park brake mechanism. Remove lock pin from park brake pedal mechanism, by pulling it firmly and rapidly from the park brake mechanism.

Apply and release the park brake lever several times. The rear wheels should rotate freely without dragging.
