Rear Servo: Disassembly

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1996 Dodge Ram Wagon, 1996 Dodge Ram Van, 1996 Dodge Pickup, 1996 Dodge Dakota, and 1996 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

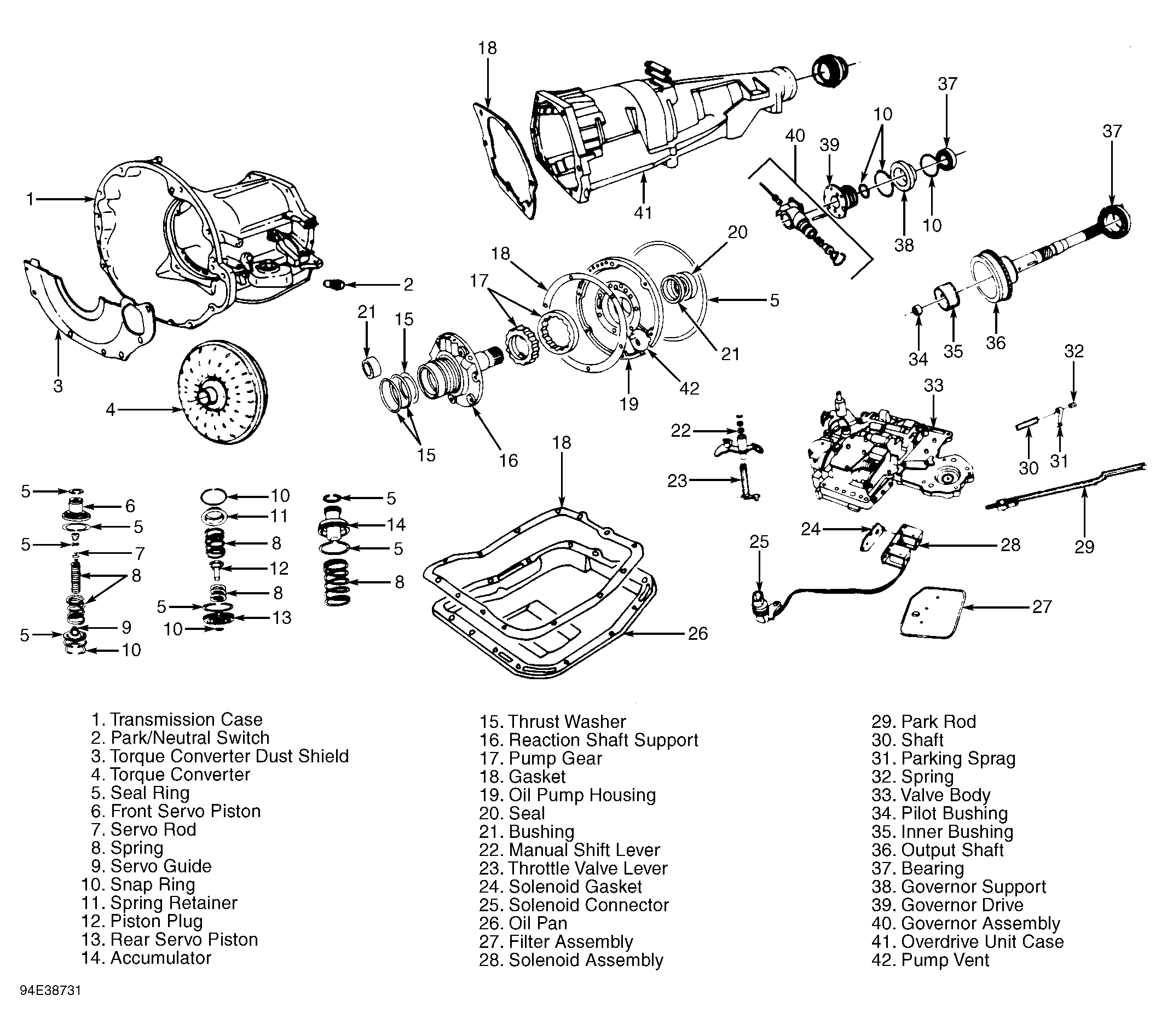

Remove seal ring from rear servo piston. Remove snap ring from end of piston plug. See Figure . Separate rear servo piston, springs, piston plug and spring retainer. See Figure .
