Front Clutch: Disassembly
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1996 Dodge Ram Wagon, 1996 Dodge Ram Van, 1996 Dodge Pickup, 1996 Dodge Dakota, and 1996 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

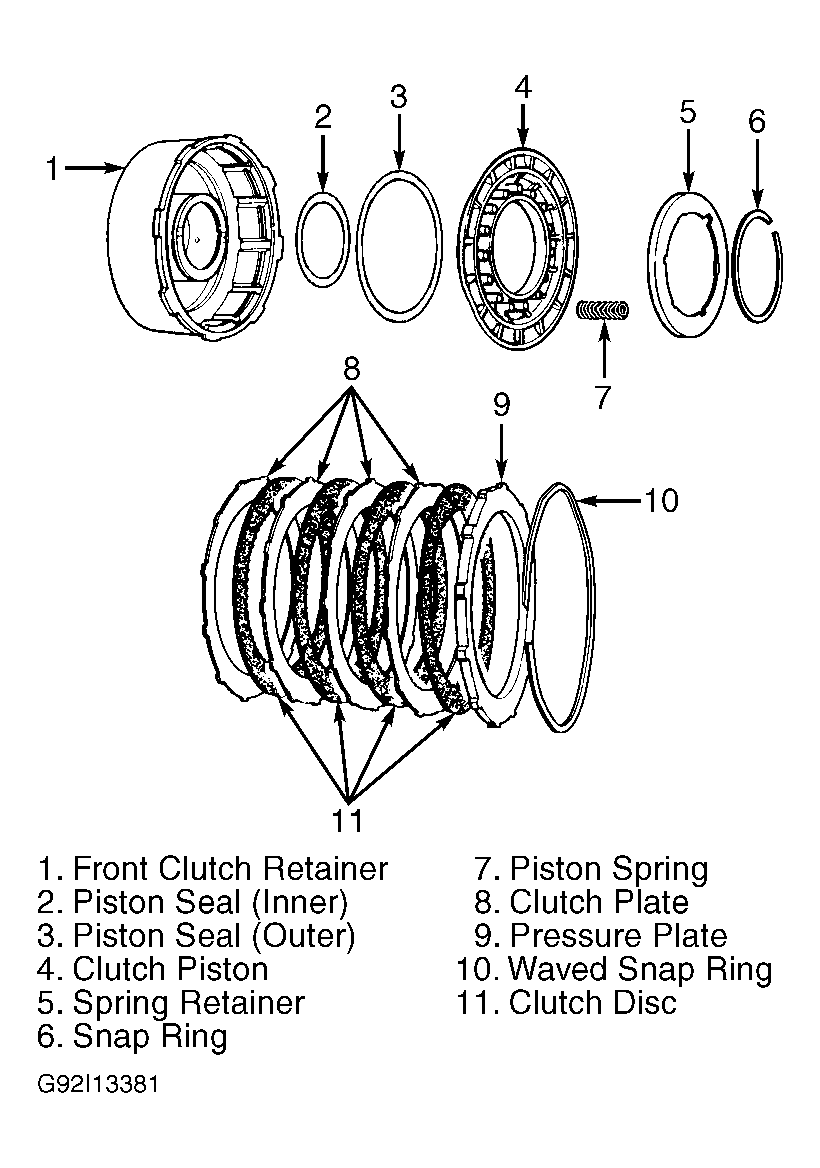

- Remove waved snap ring, pressure plate, clutch discs and clutch plates. See Fig 1 . Note number of clutch discs and plates, as some models may contain different number of clutch components.
- Using spring compressor, compress piston springs. Remove snap ring. Release spring compressor. Remove spring compressor and spring retainer.CAUTION: Note number of piston springs and location for reassembly reference.
- Remove piston springs and clutch piston from front clutch retainer. Remove and discard piston seals.
- Inspect bushing in front clutch retainer for damage. If replacing bushing, position front clutch retainer with clutch plate opening facing downward. Using hammer and bushing remover, remove bushing.
