Front Servo

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1996 Dodge Ram Wagon, 1996 Dodge Ram Van, 1996 Dodge Pickup, 1996 Dodge Dakota, and 1996 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

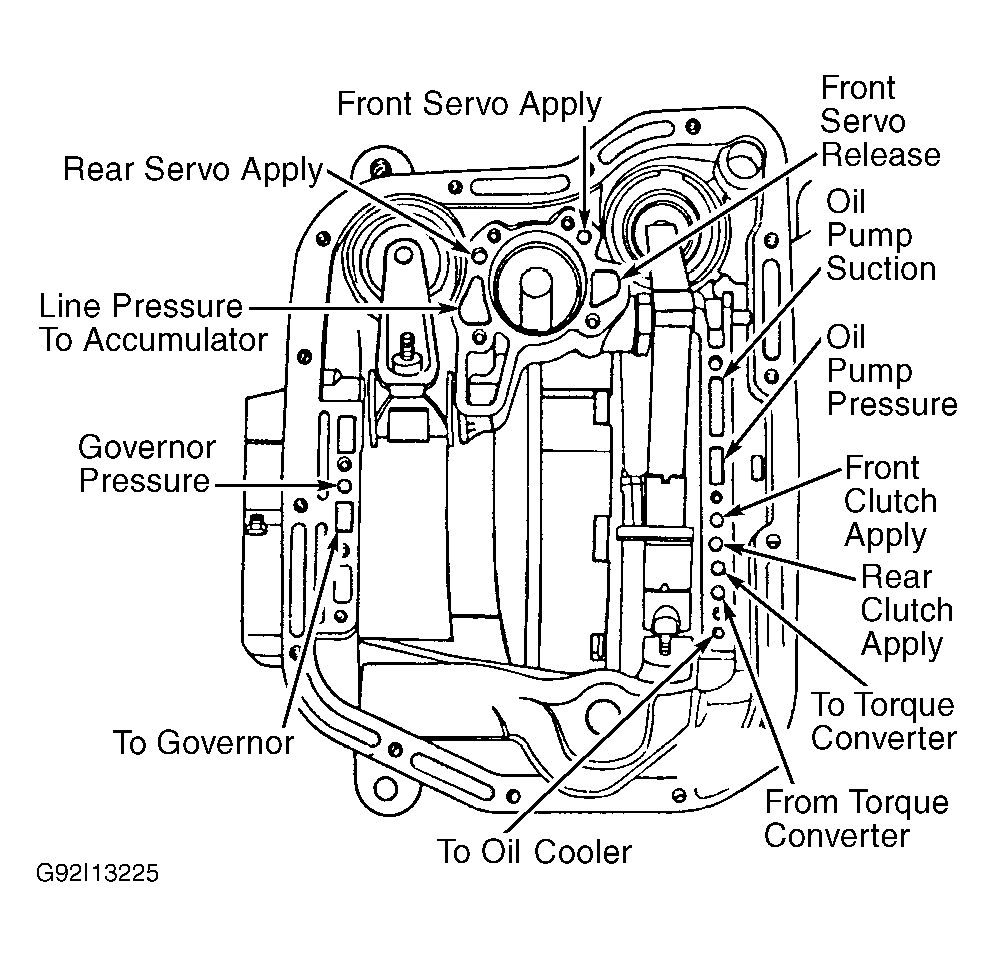

Apply air pressure to front servo apply passage. See Figure . Front band should tighten, indicating front servo operation. Release air pressure. Ensure spring tension on servo piston releases front band.
