Oil Cooler Line Disconnect Fittings: Notes

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1996 Dodge Ram Wagon, 1996 Dodge Ram Van, 1996 Dodge Pickup, 1996 Dodge Dakota, and 1996 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

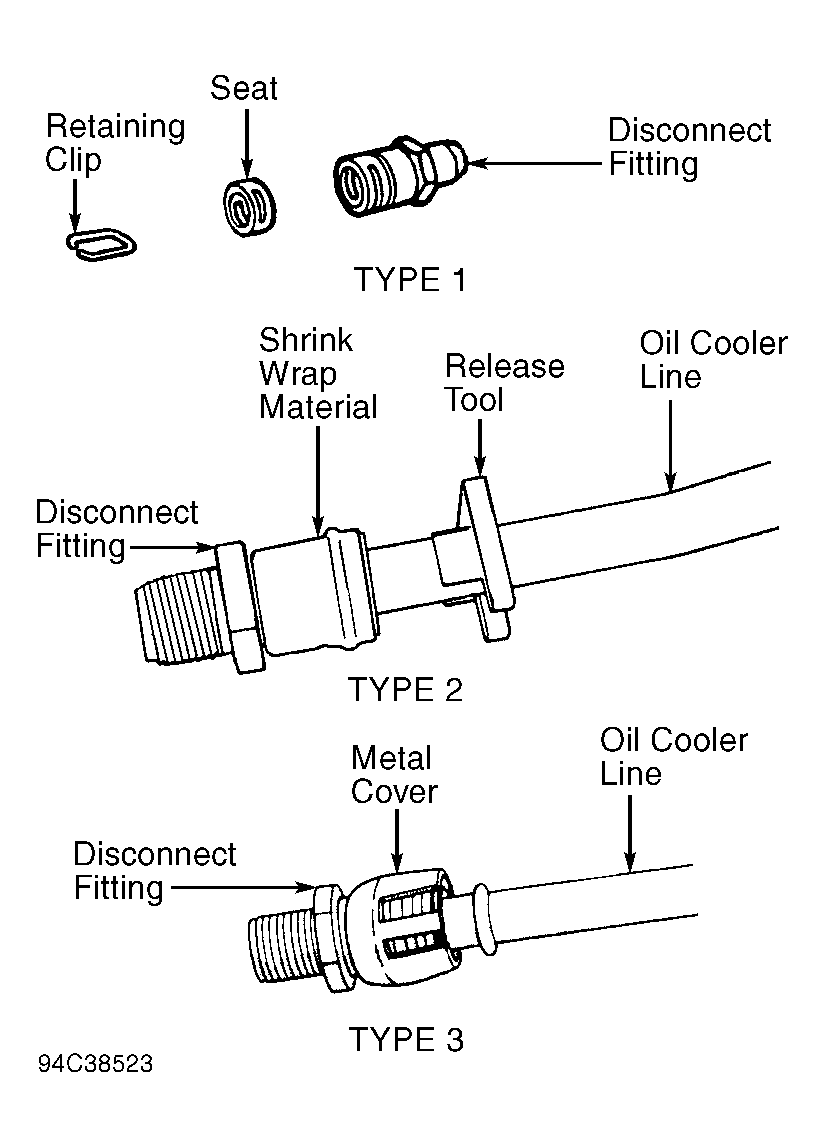

NOTE: There are 3 different types of disconnect fittings used. See Figure . Release tool is required to disconnect oil cooler line. Release tool is attached to oil cooler line on Type 2 and 3 fittings. This release tool also can be used to disconnect Type 1 fittings.
