Section 192 (Overhaul - 46 & 47 Automatic Transmission Series): Identification
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1996 Dodge Ram Wagon, 1996 Dodge Ram Van, 1996 Dodge Pickup, 1996 Dodge Dakota, and 1996 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

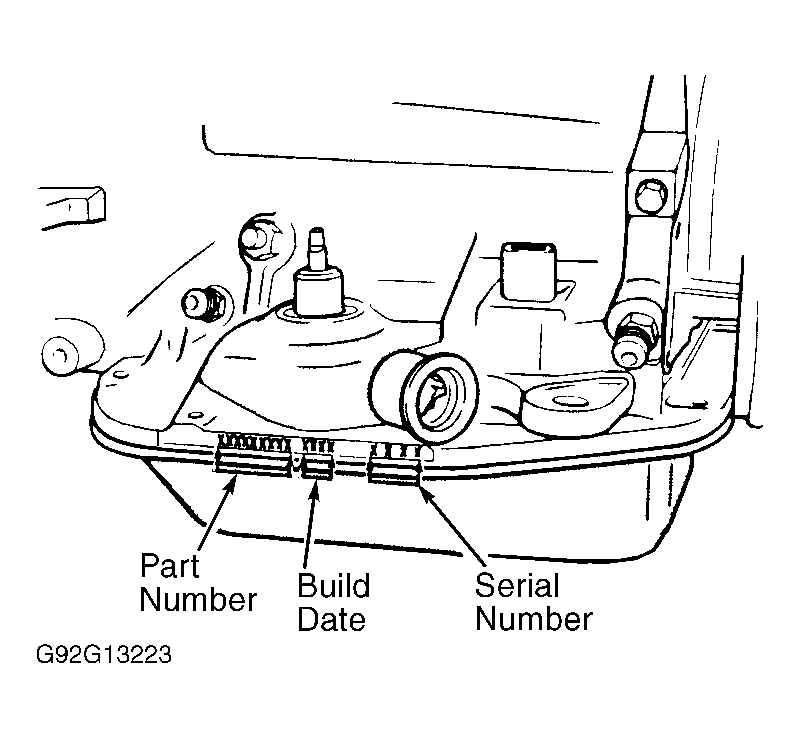

Transmission identification numbers are stamped on left side of transmission case, near oil pan flange. See Fig 1 . Identification numbers may be required when ordering replacement components. Note that transmission components may not be interchangeable and identification number is required to ensure proper component application.
NOTE:
Selective sized snap rings and thrust washers may be needed to set and adjust clearances. For sizes and availability, refer to manufacturer's parts department, and reference transmission model and identification number.
NOTE:
Overdrive unit on rear of transmission is disassembled and serviced as a separate unit. See OVERDRIVE UNIT DISASSEMBLY
.
