Throttle Pressure

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1996 Dodge Ram Wagon, 1996 Dodge Ram Van, 1996 Dodge Pickup, 1996 Dodge Dakota, and 1996 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Line pressure must be adjusted before adjusting throttle pressure.

Insert Gauge Pin (C-3763) between cam on throttle lever and kickdown valve. See Fig 1 .
Push inward on gauge pin and compress kickdown valve against spring until kickdown valve bottoms in valve body.
CAUTION: Ensure spring is fully compressed and kickdown valve is bottomed in valve body.
Maintain pressure against kickdown valve and spring. Rotate throttle pressure adjusting screw until head of adjusting screw contacts tang on throttle lever. Ensure throttle lever cam contacts gauge pin. Remove gauge pin.

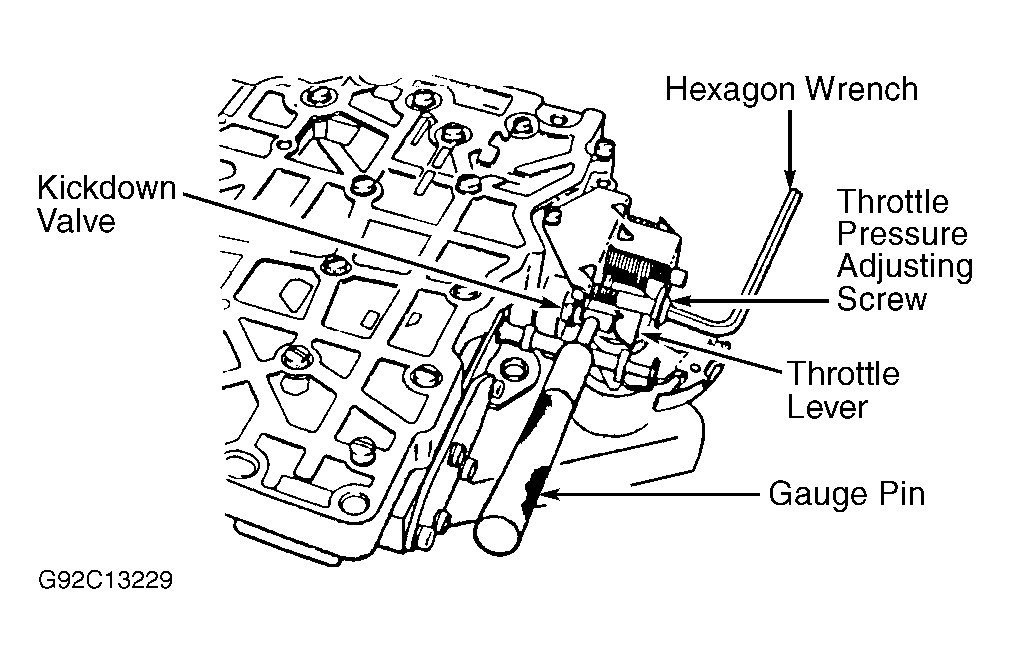

Fig 1: Adjusting Throttle Pressure

Courtesy of CHRYSLER CORP.
