Line Pressure
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1996 Dodge Ram Wagon, 1996 Dodge Ram Van, 1996 Dodge Pickup, 1996 Dodge Dakota, and 1996 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

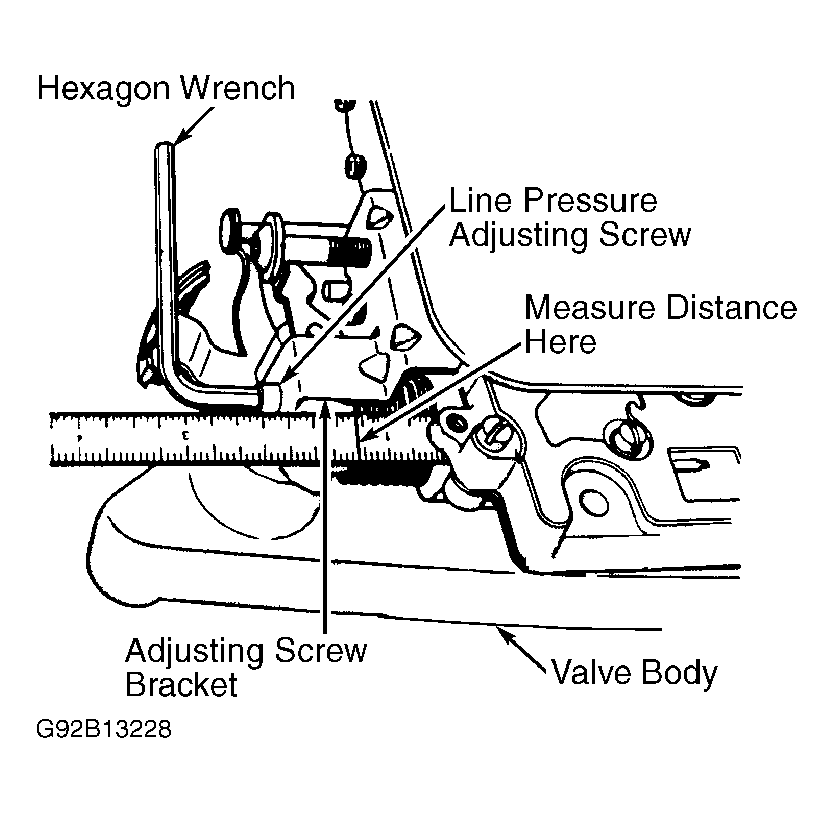

- Measure distance from valve body to inner edge of line pressure adjusting screw. See Fig 1
. Rotate line pressure adjusting screw so distance is approximately 1 5/16".NOTE: Due to manufacturing tolerances, adjustment can obtain specified line pressure.
- Rotating line pressure adjusting screw one revolution will change line pressure approximately 1 2/3 psi. Rotating line pressure adjusting screw counterclockwise increases line pressure and clockwise decreases line pressure.
