Test 8A - Front Sensor Short

WARNING: This page is about a different car, the 1995 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

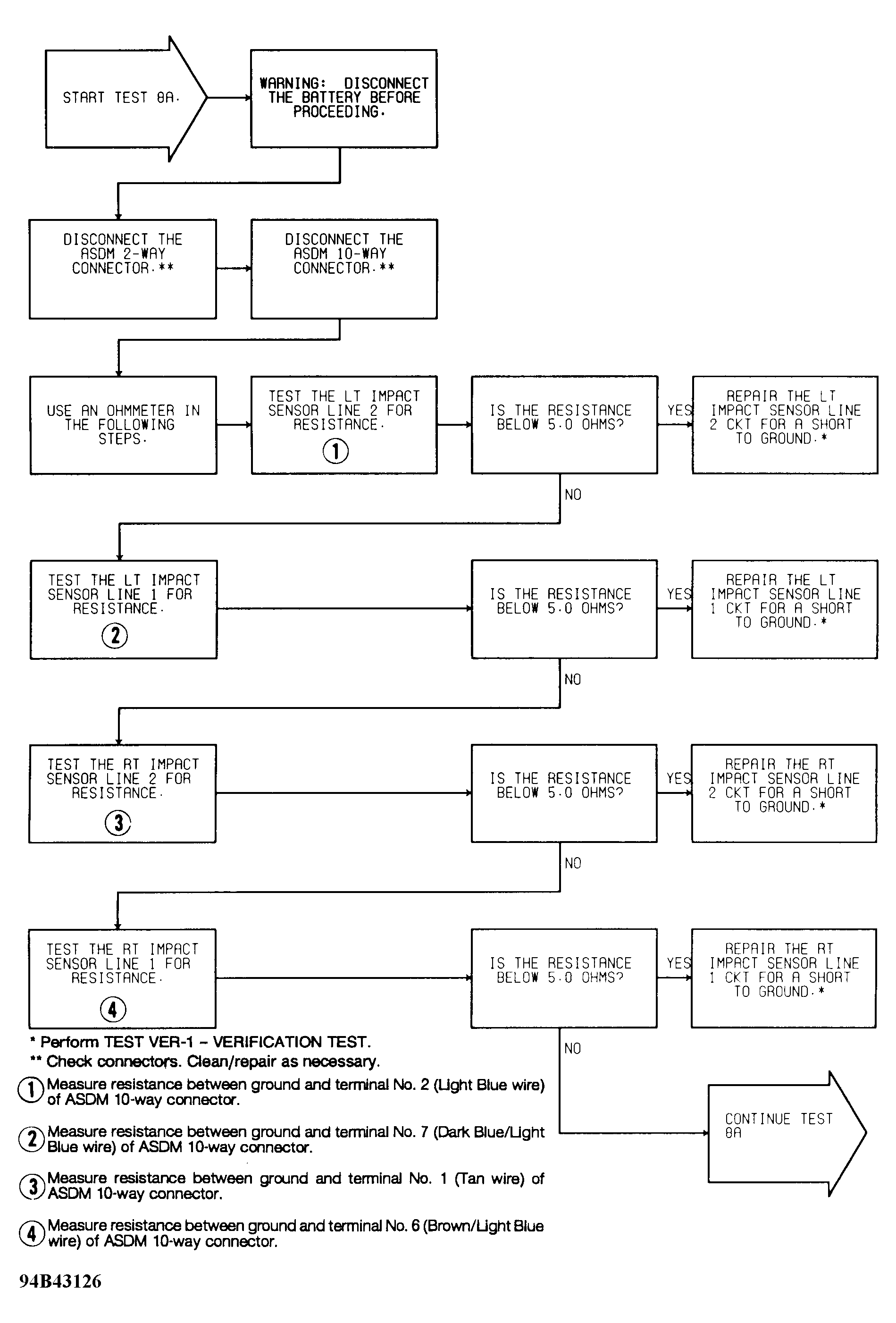

Fig 1: Test 8A - Front Sensor Short (1 Of 4)

Courtesy of CHRYSLER CORP.

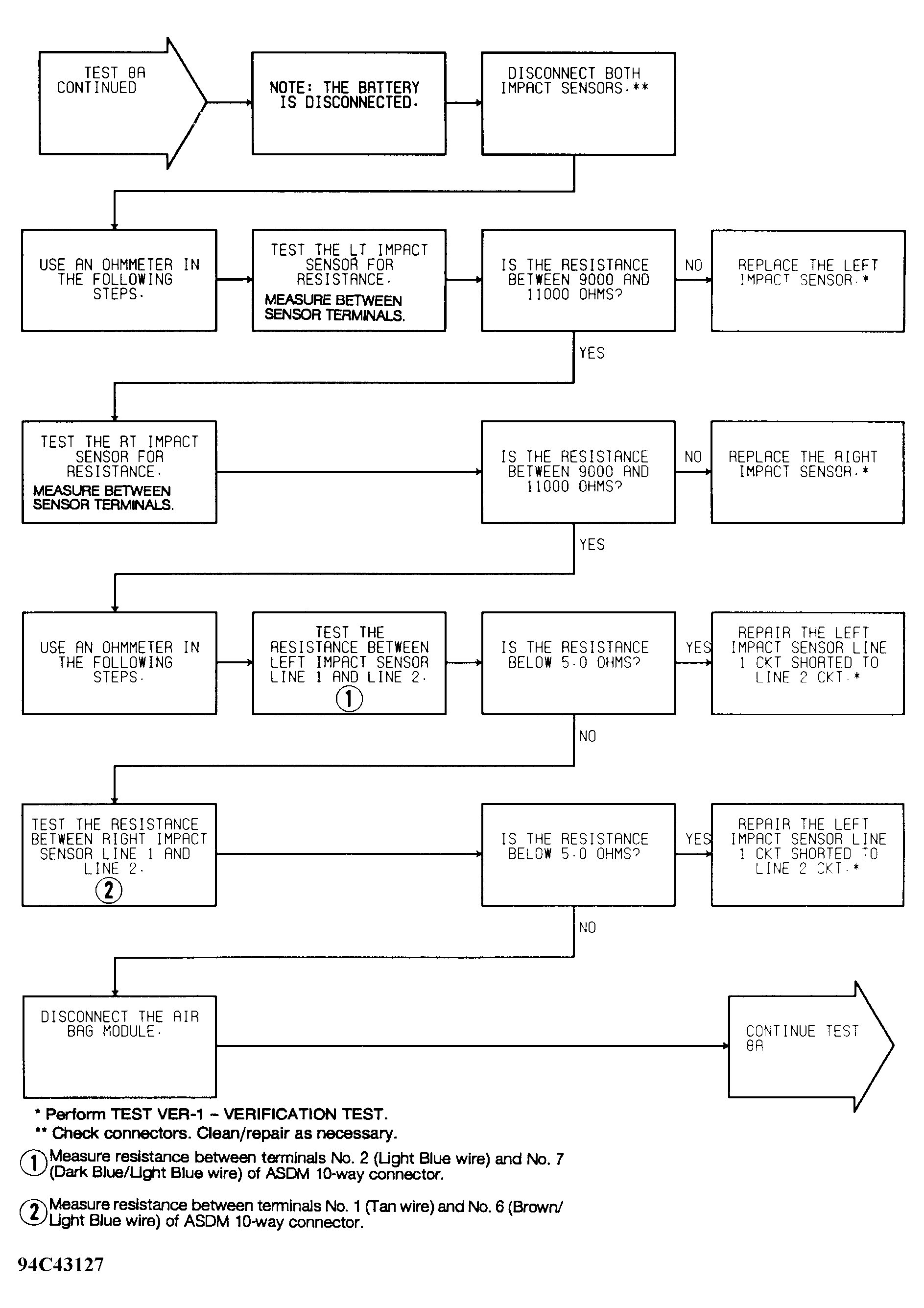

Fig 2: Test 8A - Front Sensor Short (2 Of 4)

Courtesy of CHRYSLER CORP.

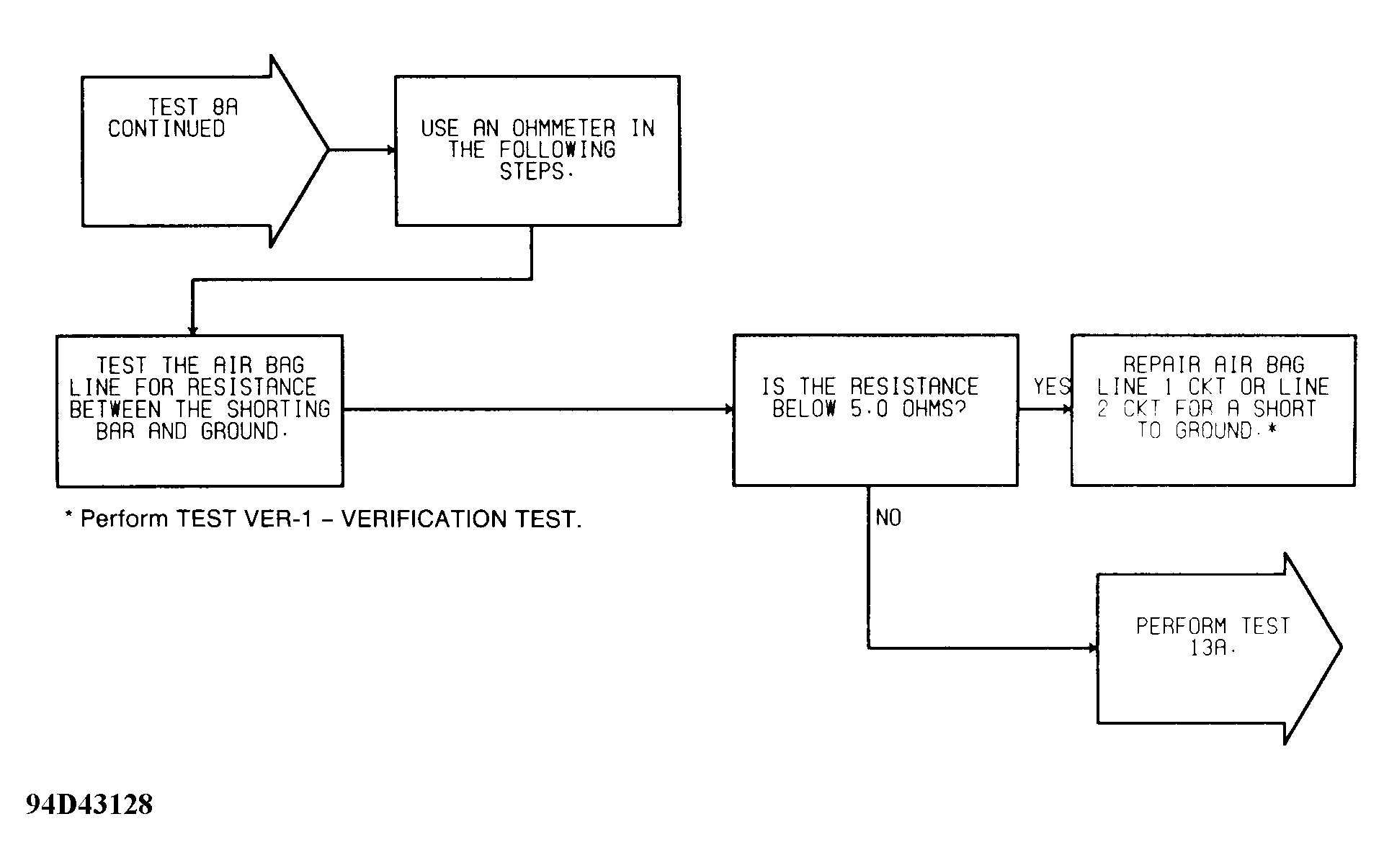

Fig 3: Test 8A - Front Sensor Short (3 Of 4)

Courtesy of CHRYSLER CORP.

Fig 4: Test 8A - Front Sensor Short (4 Of 4)

Courtesy of CHRYSLER CORP.
