Test 7A - Initiator (Squib) Short

WARNING: This page is about a different car, the 1995 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

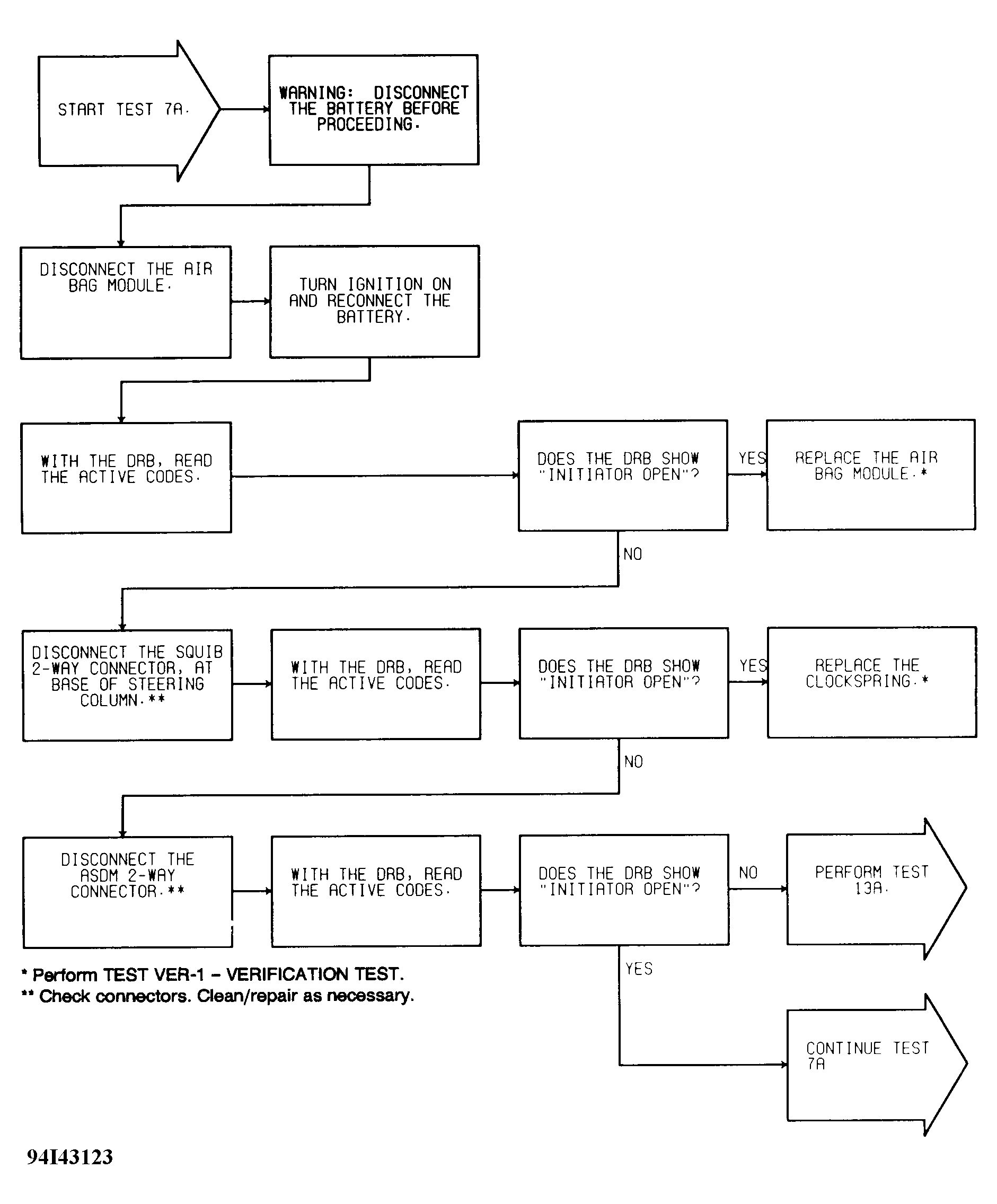

Fig 1: Test 7A - Initiator (Squib) Short (1 Of 3)

Courtesy of CHRYSLER CORP.

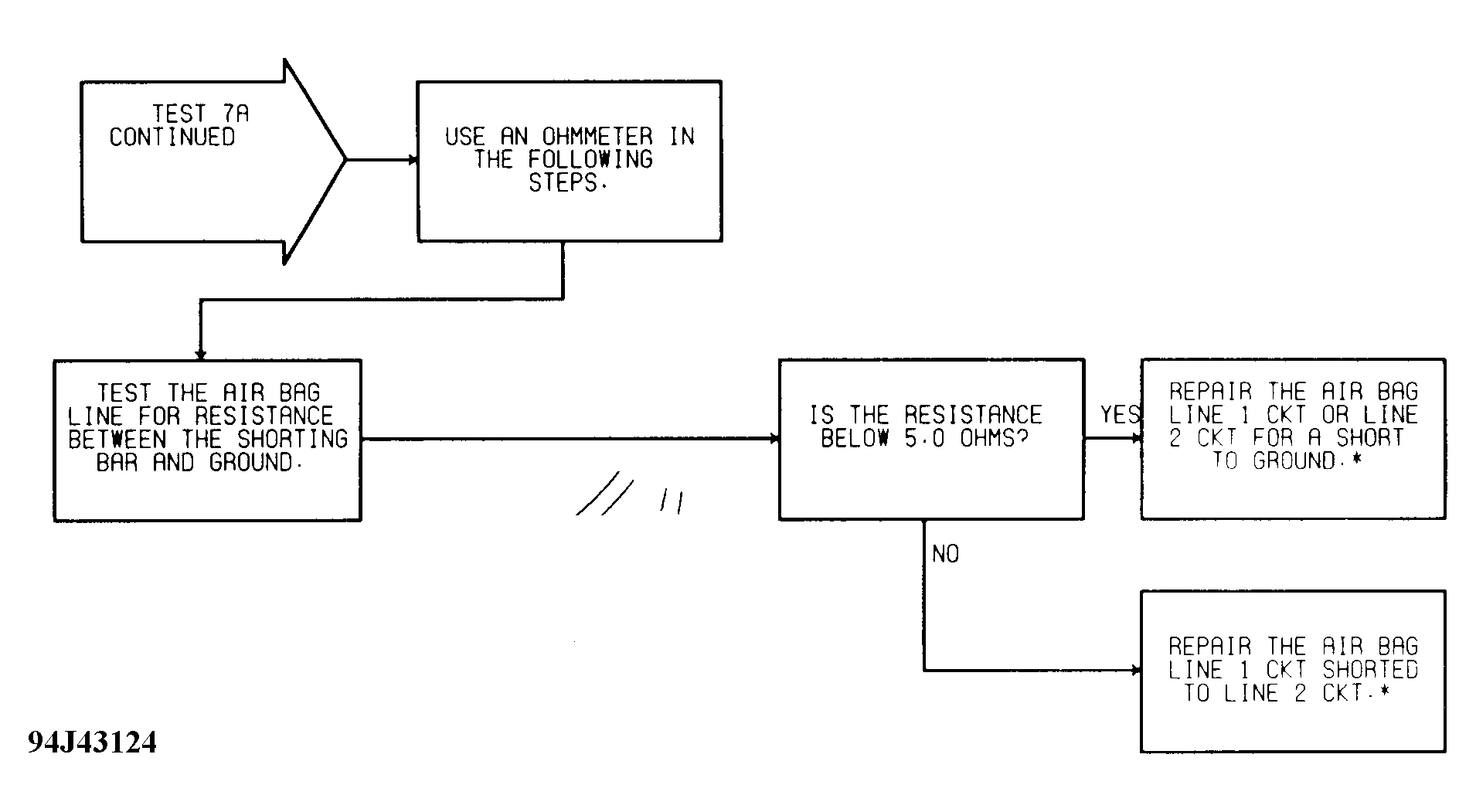

Fig 2: Test 7A - Initiator (Squib) Short (2 Of 3)

Courtesy of CHRYSLER CORP.

Fig 3: Test 7A - Initiator (Squib) Short (3 Of 3)

Courtesy of CHRYSLER CORP.
