Test 6A - Initiator (Squib) Open

WARNING: This page is about a different car, the 1995 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

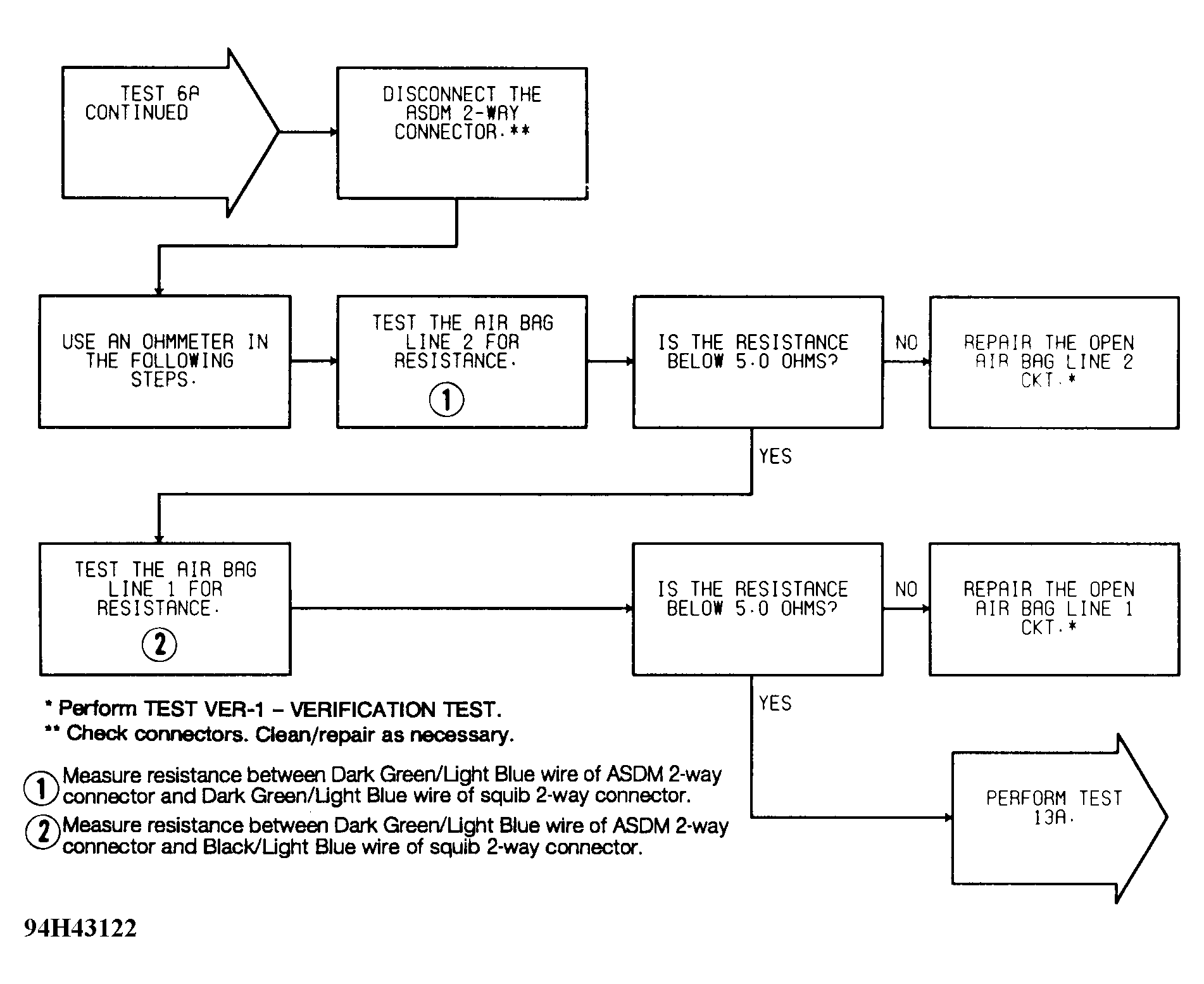

Fig 1: Test 6A - Initiator (Squib) Open (1 Of 2)

Courtesy of CHRYSLER CORP.

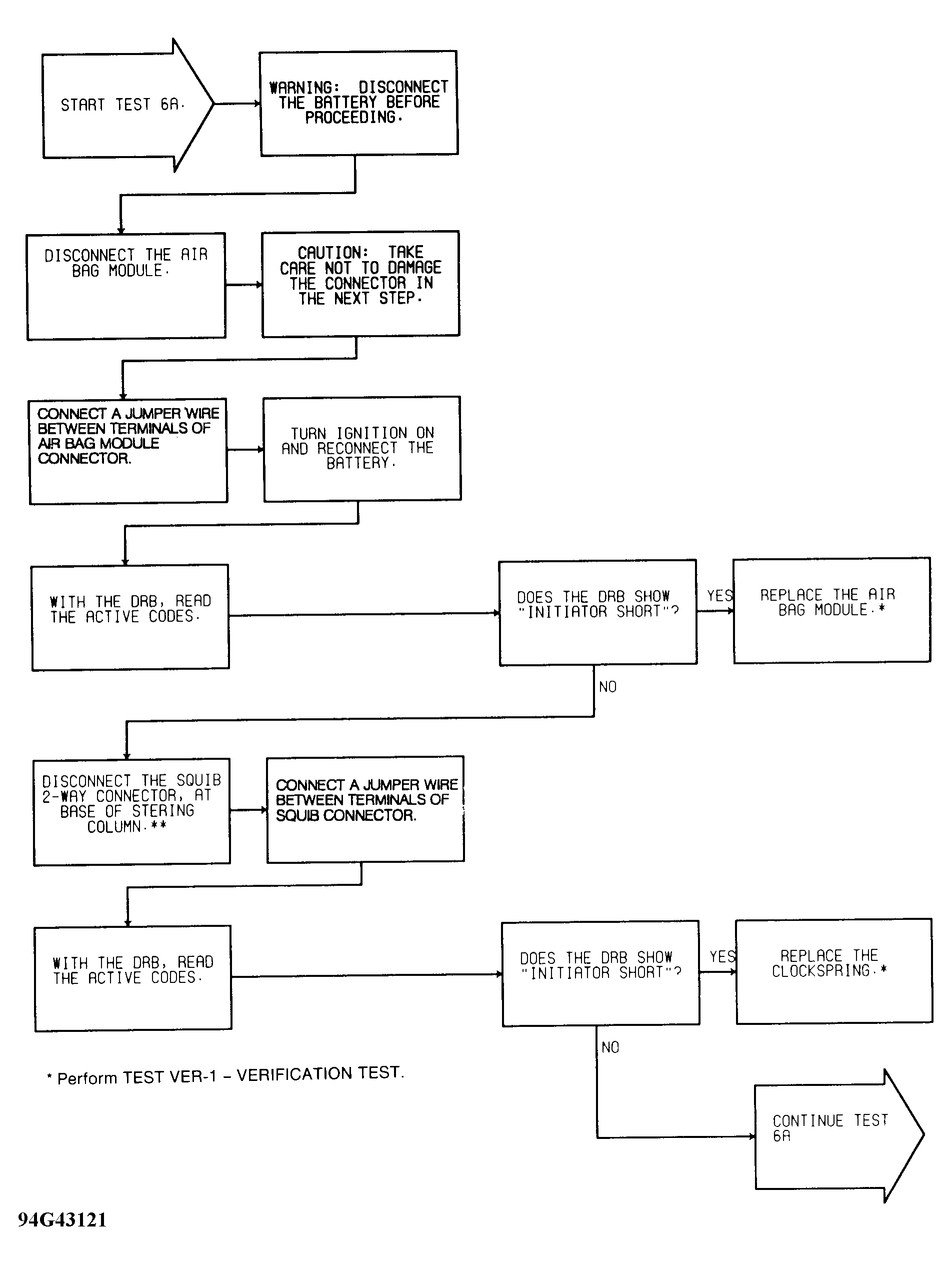

Fig 2: Test 6A - Initiator (Squib) Open (2 Of 2)

Courtesy of CHRYSLER CORP.
