Section 189 (Air Bag Restraint System)
>>
Testing - Diagnostic Charts
>>
Test 4A - Air Bag Module Codes
Test 4A - Air Bag Module Codes
WARNING:
This page is about a different car, the 1995 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

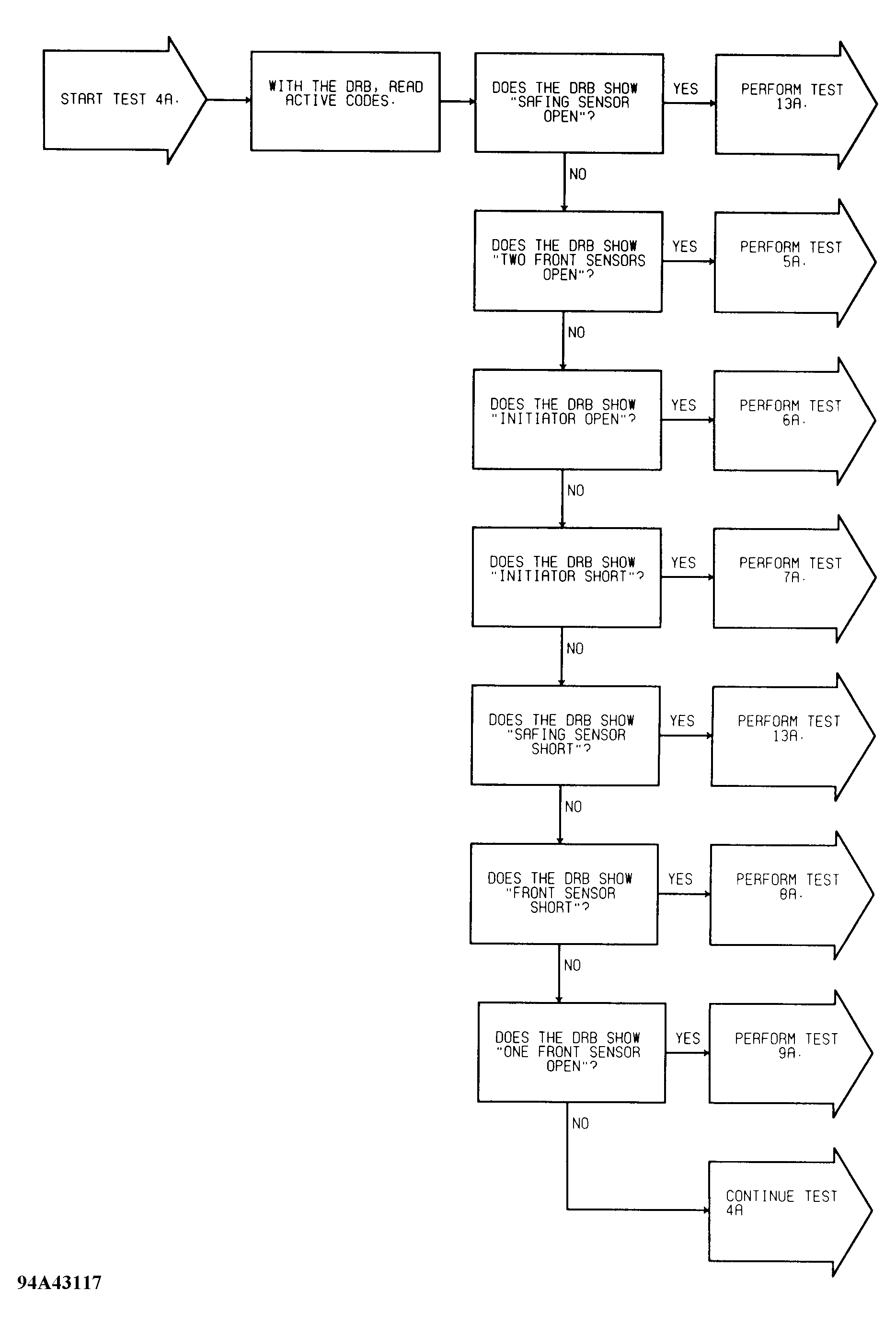

Fig 1: Test 4A - Air Bag Module Codes (1 Of 2)
Courtesy of CHRYSLER CORP.

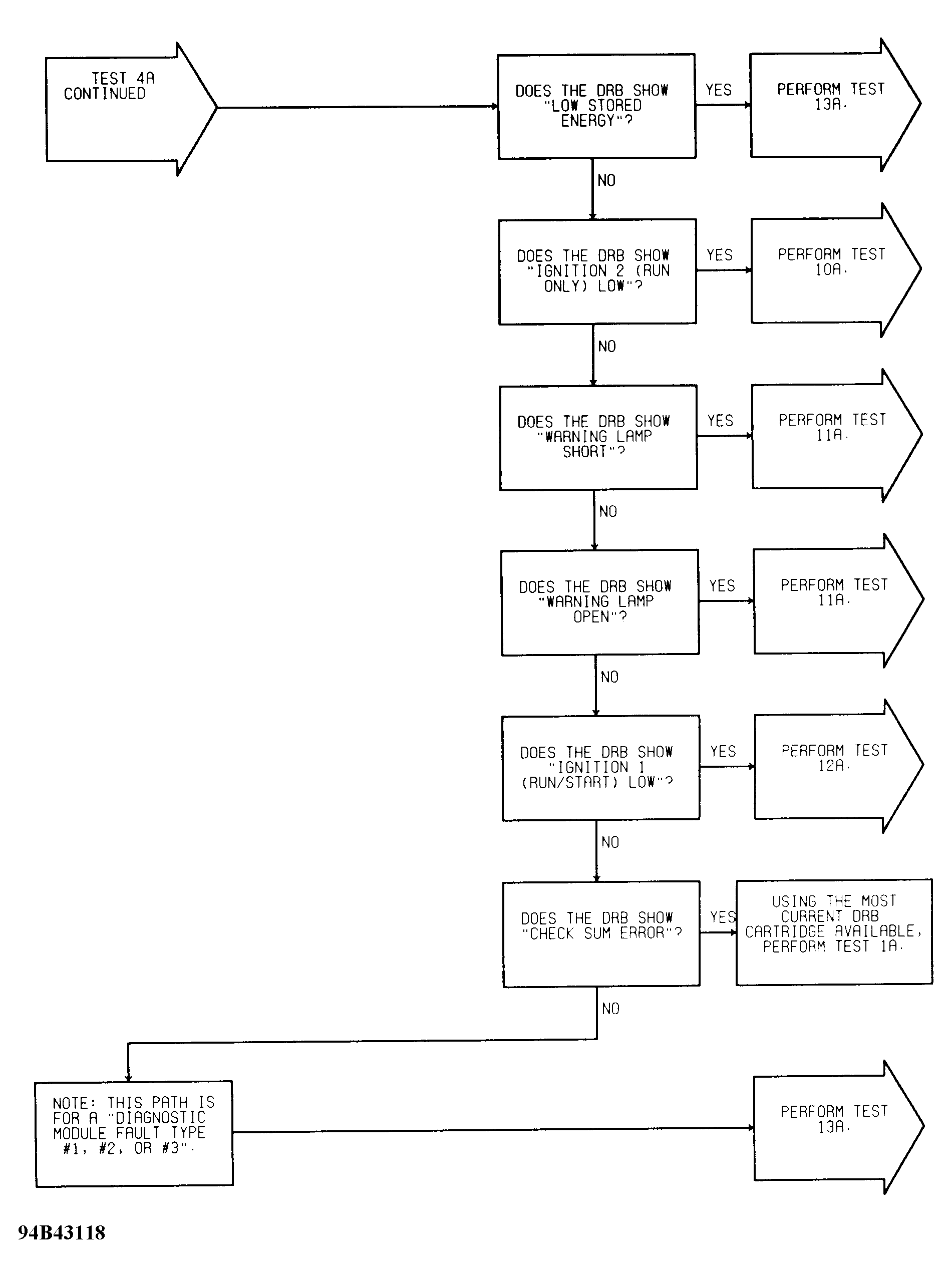

Fig 2: Test 4A - Air Bag Module Codes (2 Of 2
Courtesy of CHRYSLER CORP.
