Section 189 (Air Bag Restraint System)
>>
Testing - Diagnostic Charts
>>
Test 12B - Ignition 1 (Run/Start) Low
Test 12B - Ignition 1 (Run/Start) Low
WARNING:
This page is about a different car, the 1995 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

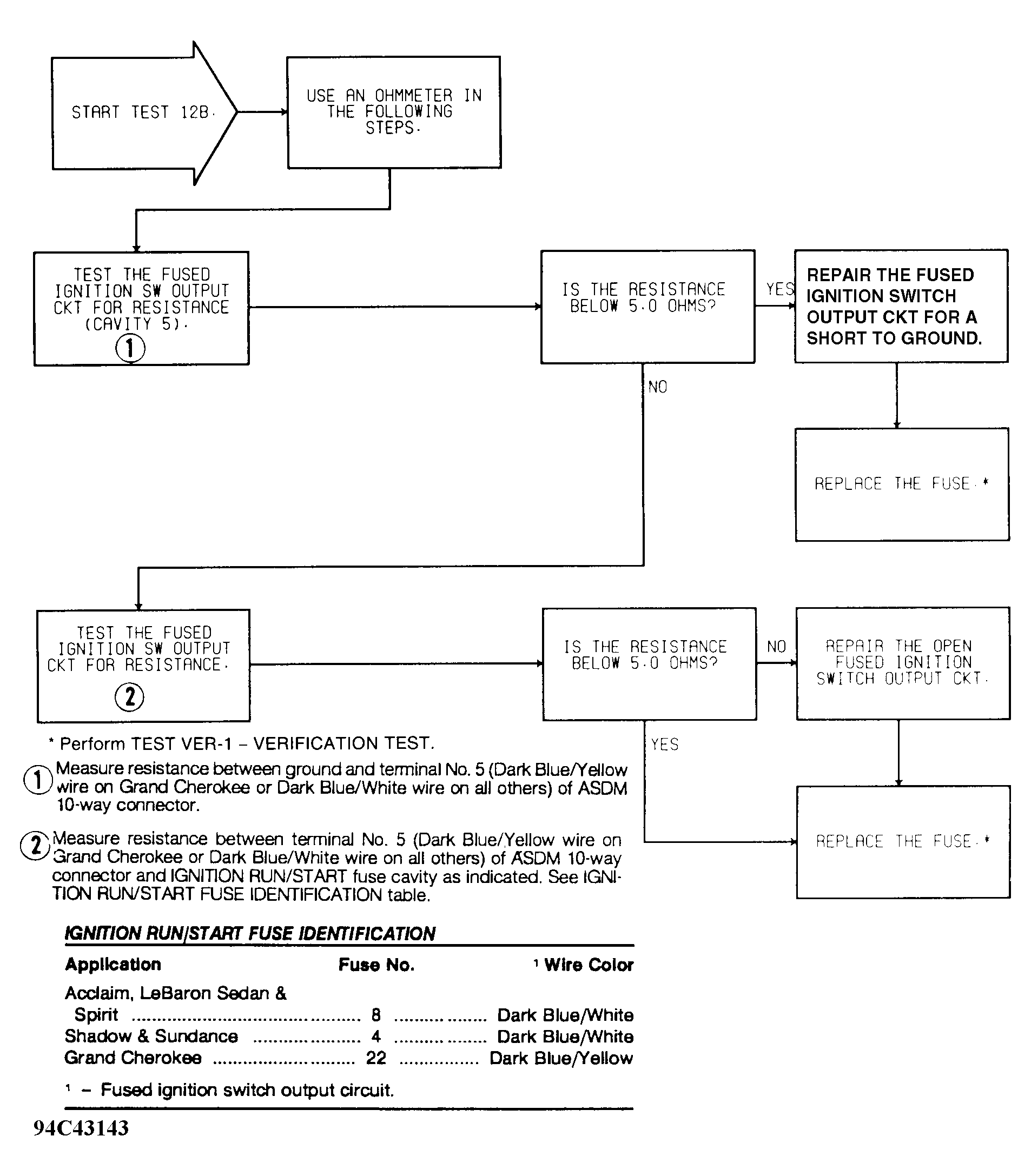

Fig 1: Test 12B - Ignition 1 (Run/Start) Low
Courtesy of CHRYSLER CORP.
