Test 11B - Warning Lamp Short

WARNING: This page is about a different car, the 1995 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

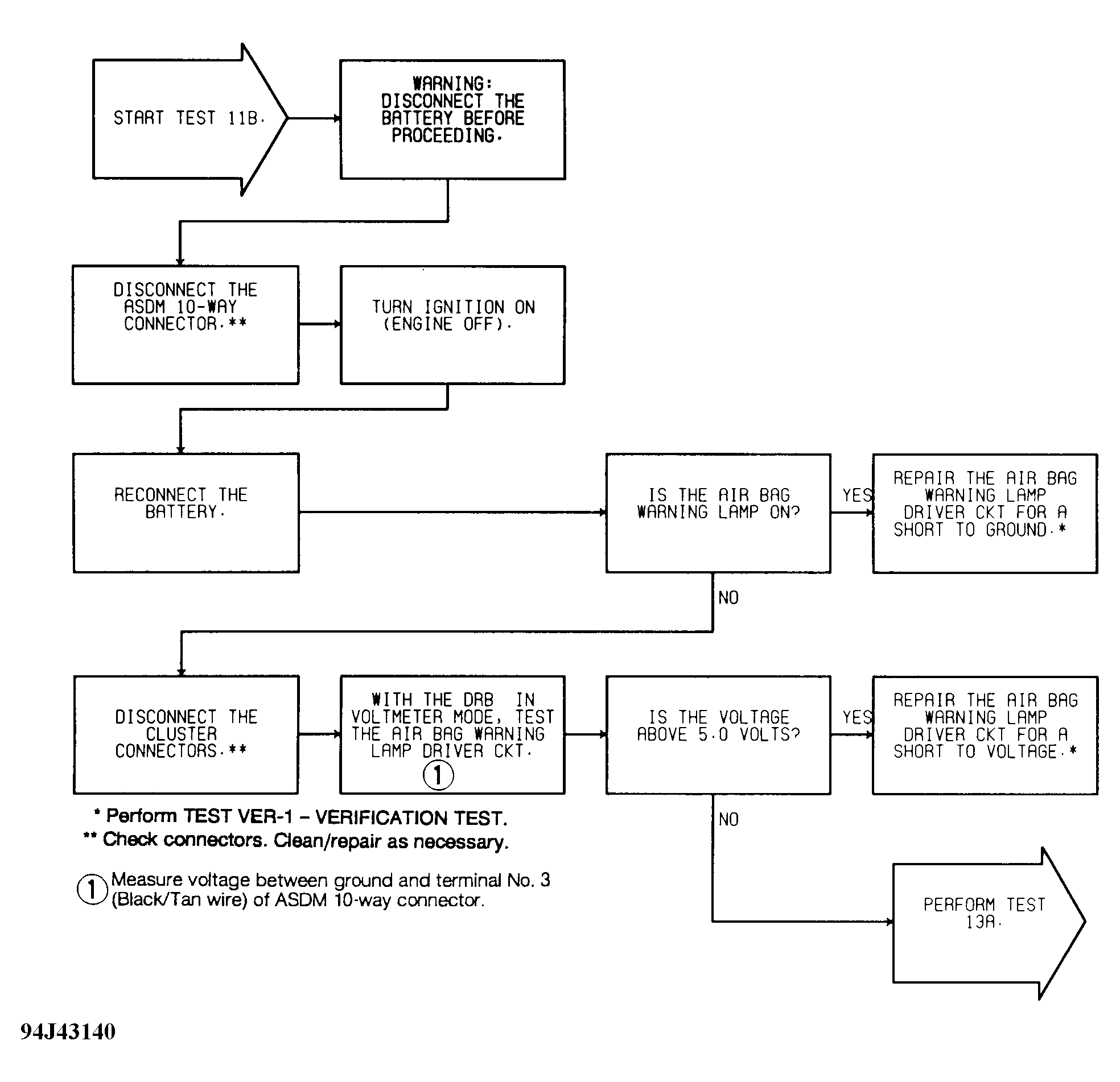

Fig 1: Test 11B - Warning Lamp Short
G94J43140Courtesy of CHRYSLER CORP.
