Test 11A - Warning Lamp Open

WARNING: This page is about a different car, the 1995 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

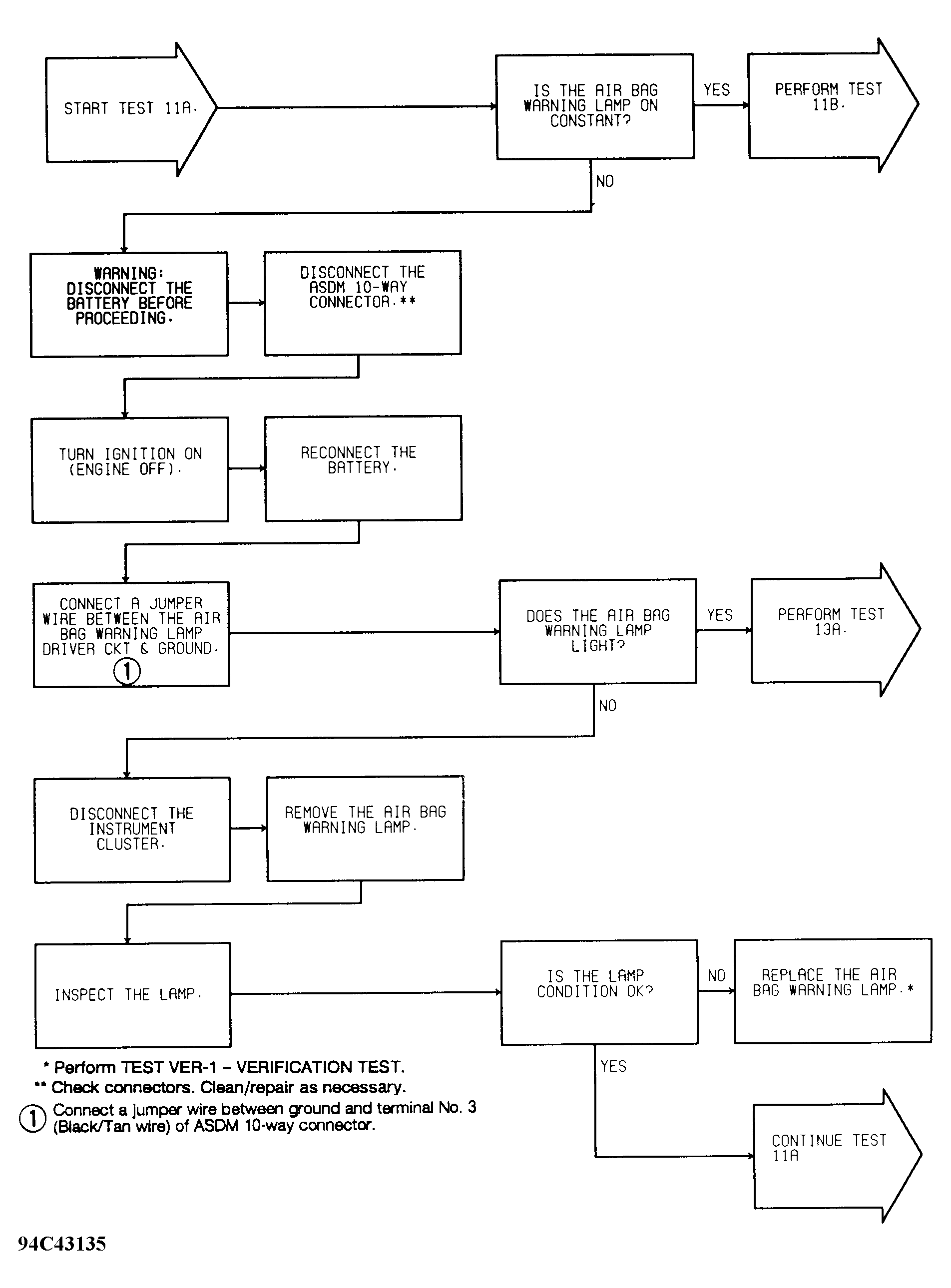

Fig 1: Test 11A - Warning Lamp Open (1 Of 5)

Courtesy of CHRYSLER CORP.

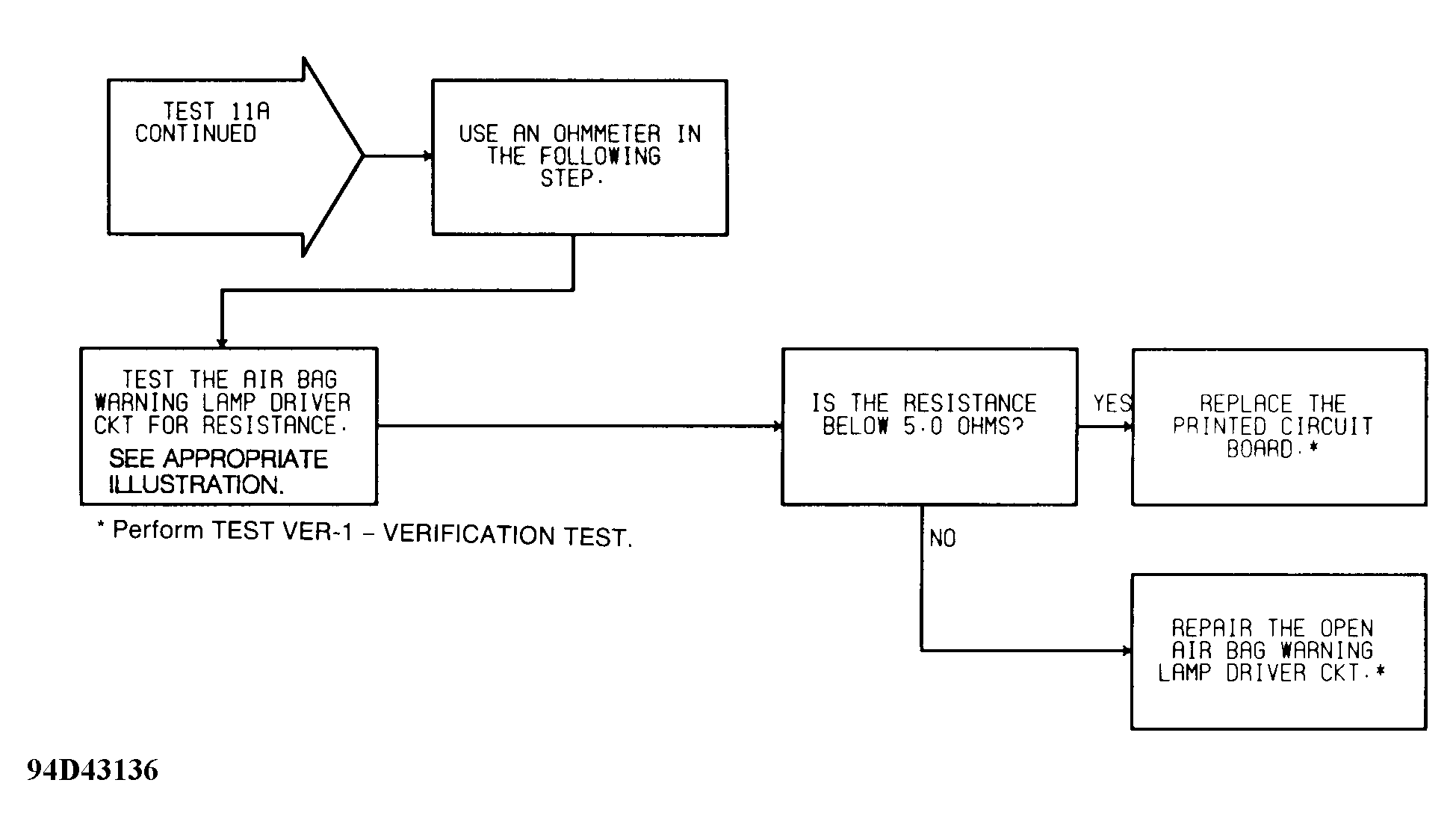

Fig 2: Test 11A - Warning Lamp Open (2 Of 5)

Courtesy of CHRYSLER CORP.

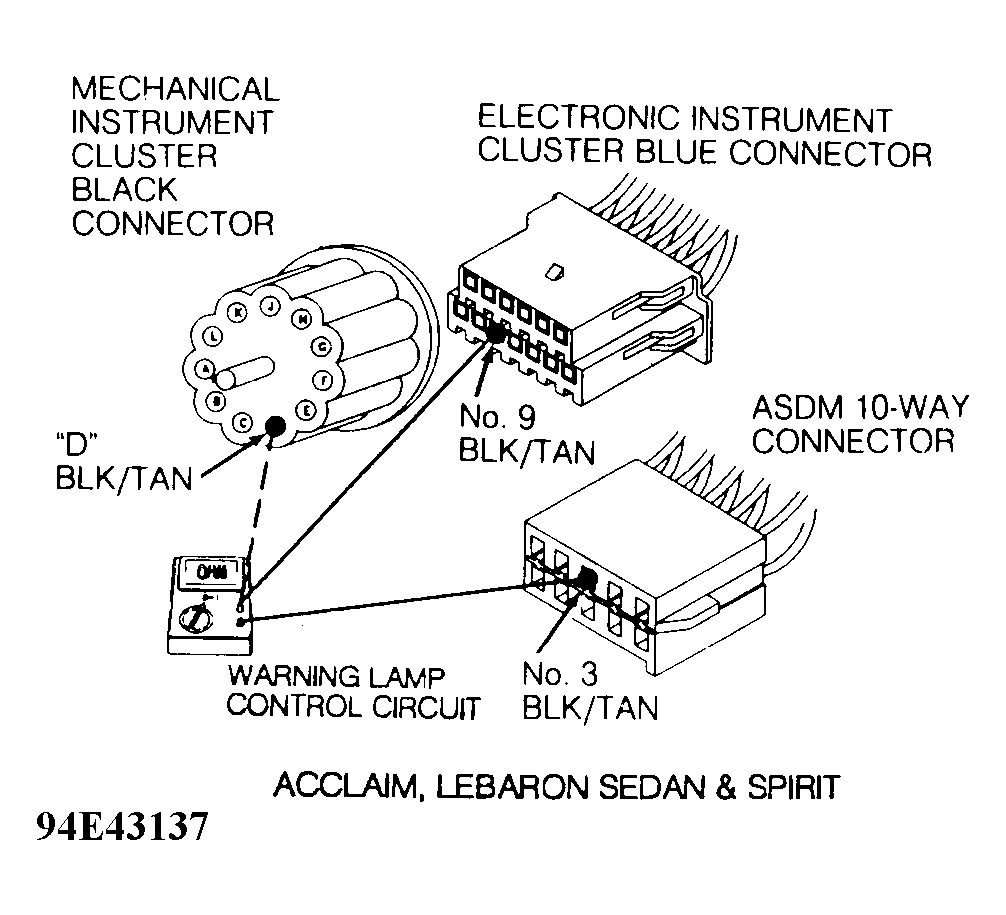

Fig 3: Test 11A - Warning Lamp Open (3 Of 5)

Courtesy of CHRYSLER CORP.

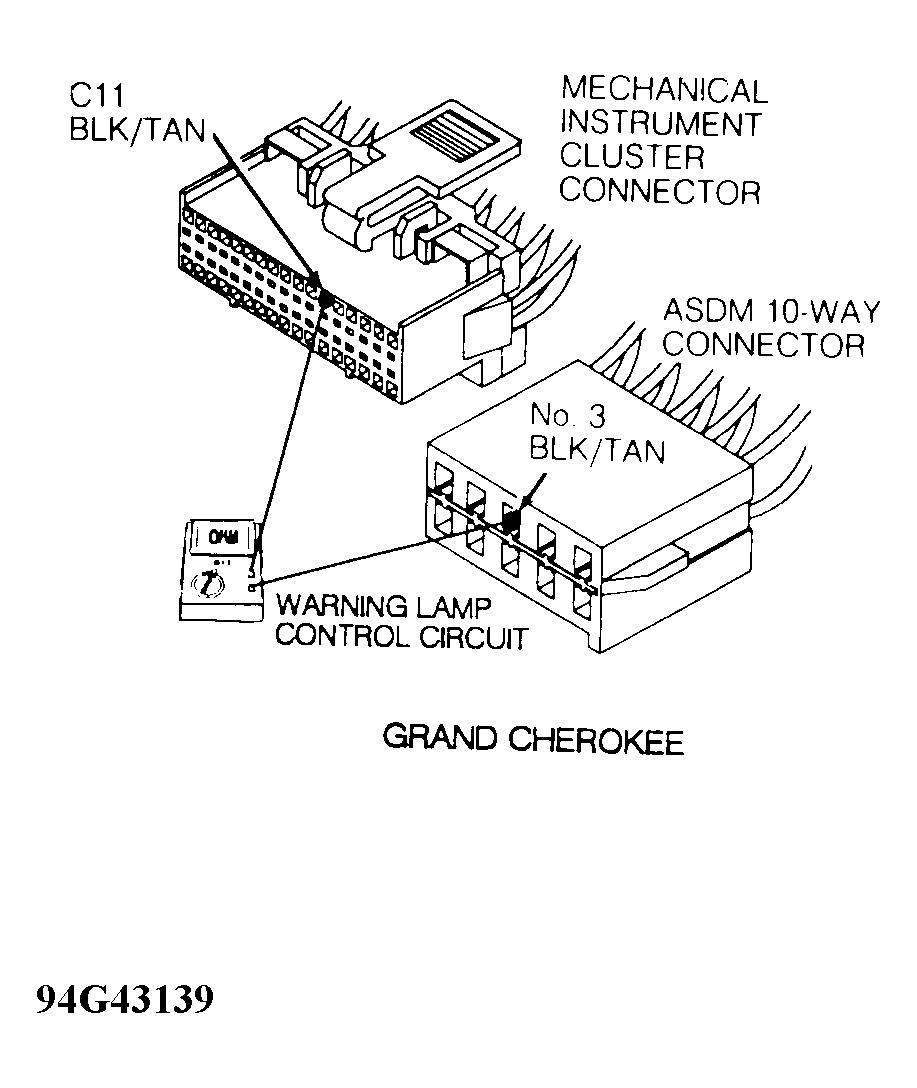

Fig 4: Test 11A - Warning Lamp Open (4 Of 5)

Courtesy of CHRYSLER CORP.

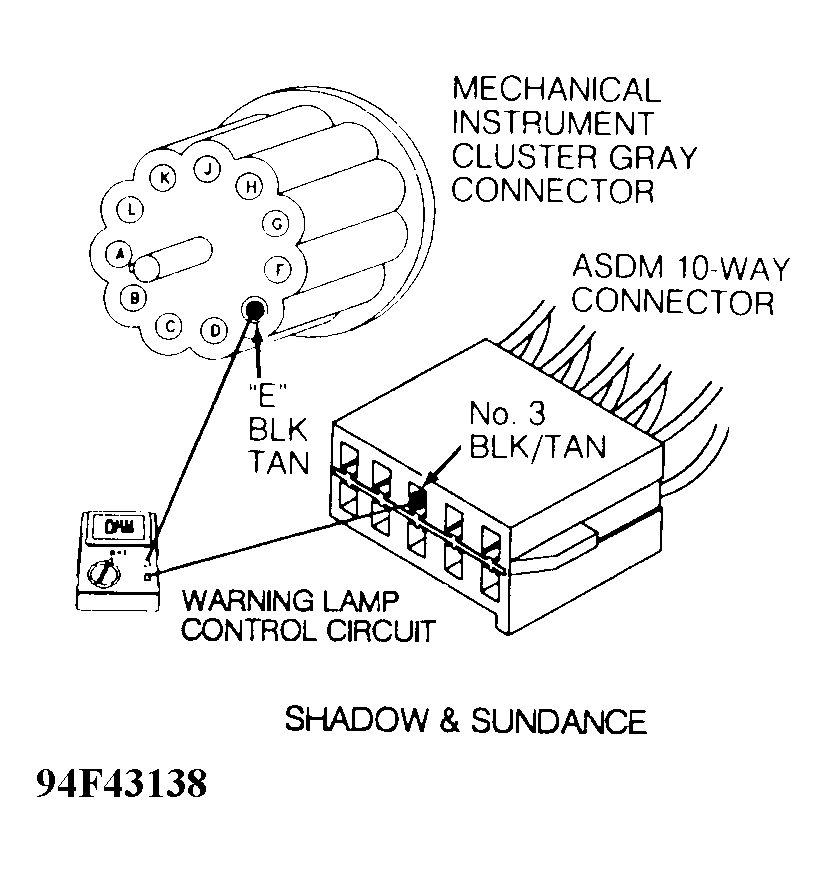

Fig 5: Test 11A - Warning Lamp Open (5 Of 5)

Courtesy of CHRYSLER CORP.
