Left & Right Impact Sensors: Removal

WARNING: This page is about a different car, the 1995 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Before proceeding, follow air bag service precautions. See SERVICE PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .

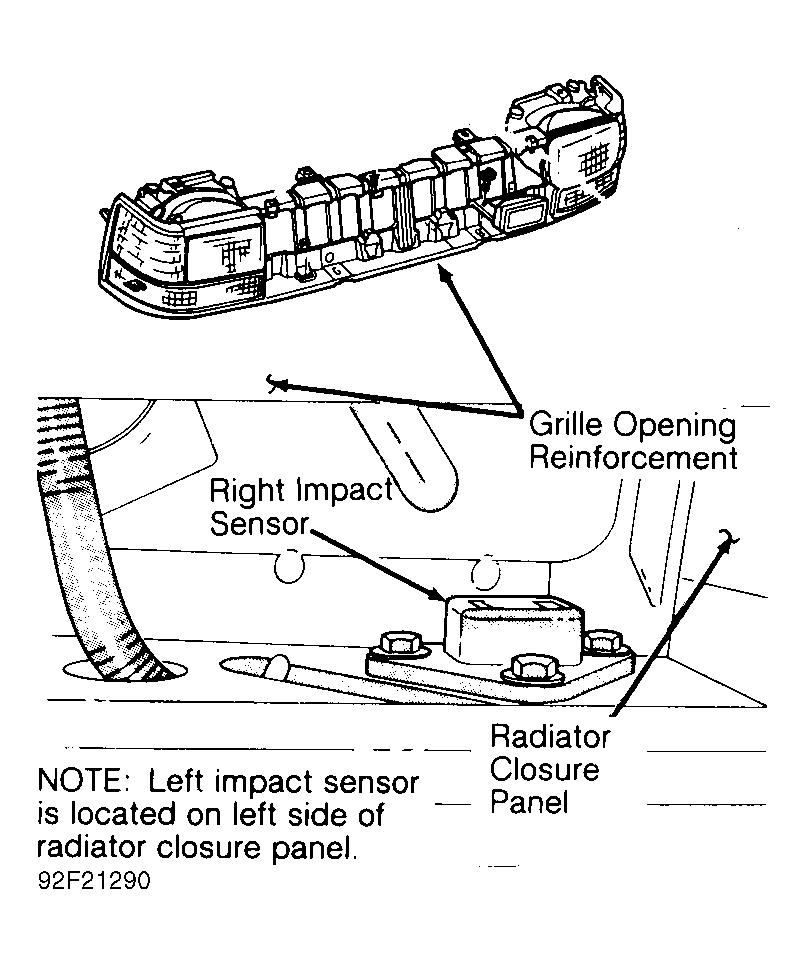

Impact sensors are mounted on left and right side of radiator closure panel, behind grille opening reinforcement assembly. See Figure . Remove 3 grille mounting screws and lift grille from grille opening reinforcement assembly. See Fig 1 .
Remove turn signals, side markers and headlights. Remove upper and lower retainers at fascia. See Fig 2 . Remove fascia retainers at both front wheelwells. See Fig 3 .

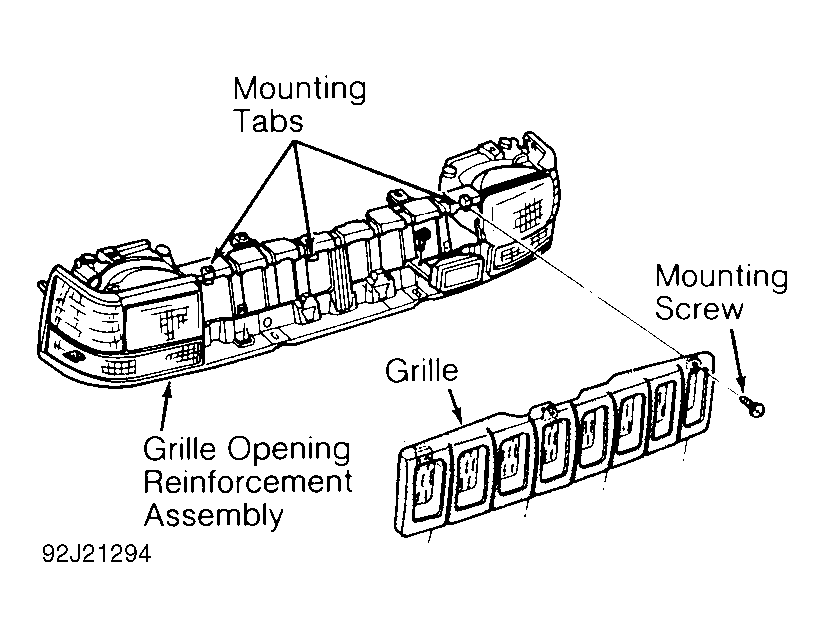

Fig 1: Removing Grille
Courtesy of CHRYSLER CORP.

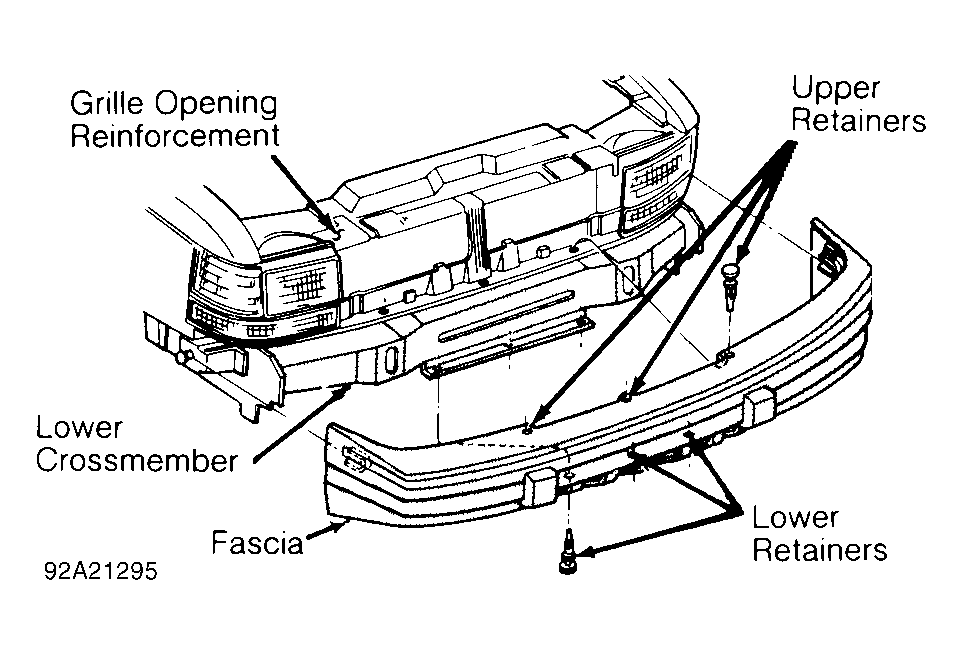

Fig 2: Removing Fascia
Courtesy of CHRYSLER CORP.

Fig 3: Removing Fascia Retainers At Wheelwell
Courtesy of CHRYSLER CORP.
Slide fascia off retainer pegs at side of lower crossmember. Using a small screwdriver, pull up on locating tangs under turn signal mounting area. Remove fascia from lower crossmember. Disconnect impact sensor electrical connector. Remove screws attaching sensor. Remove impact sensor.
