Air Bag System Diagnostic Module (ASDM): Removal

WARNING: This page is about a different car, the 1995 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, follow air bag service precautions. See SERVICE PRECAUTIONS  . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM  .

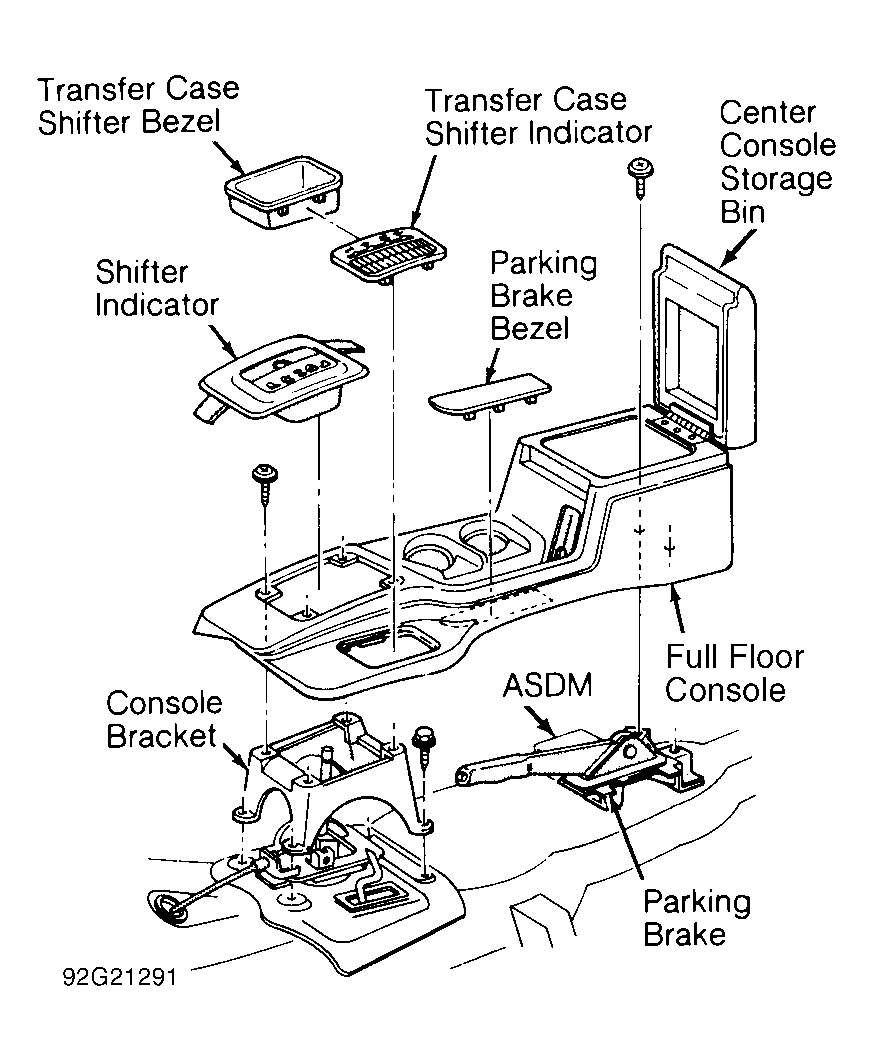

  2. ASDM is located under center console, near parking brake lever assembly. See Figure . Remove 2 screws from bottom of center console storage bin. See Fig 1 . Remove transmission shift handle by pulling it up sharply. Remove transfer case shifter bezel (there are 2 snap clips on each side). Remove bulb from transfer case shifter bezel.

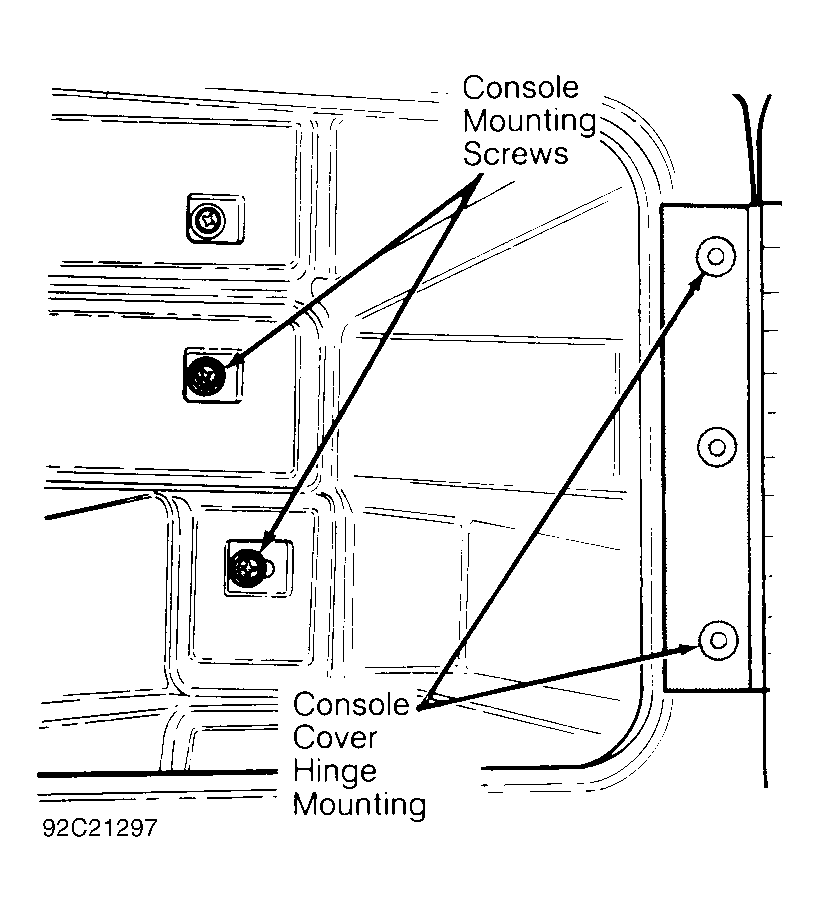

    Fig 1: Locating Center Console Storage Bin Screws
    G92C21297Courtesy of CHRYSLER CORP.
  3. Remove screws under transmission shifter bezel. Remove parking brake lever bezel mounting screws. See Fig 2 . Move transfer case and transmission shift levers rearward. Lift console up to remove. Disconnect bulb at rear of transfer case bezel. Disconnect wiring at ASDM. Remove screws attaching ASDM. Remove ASDM.

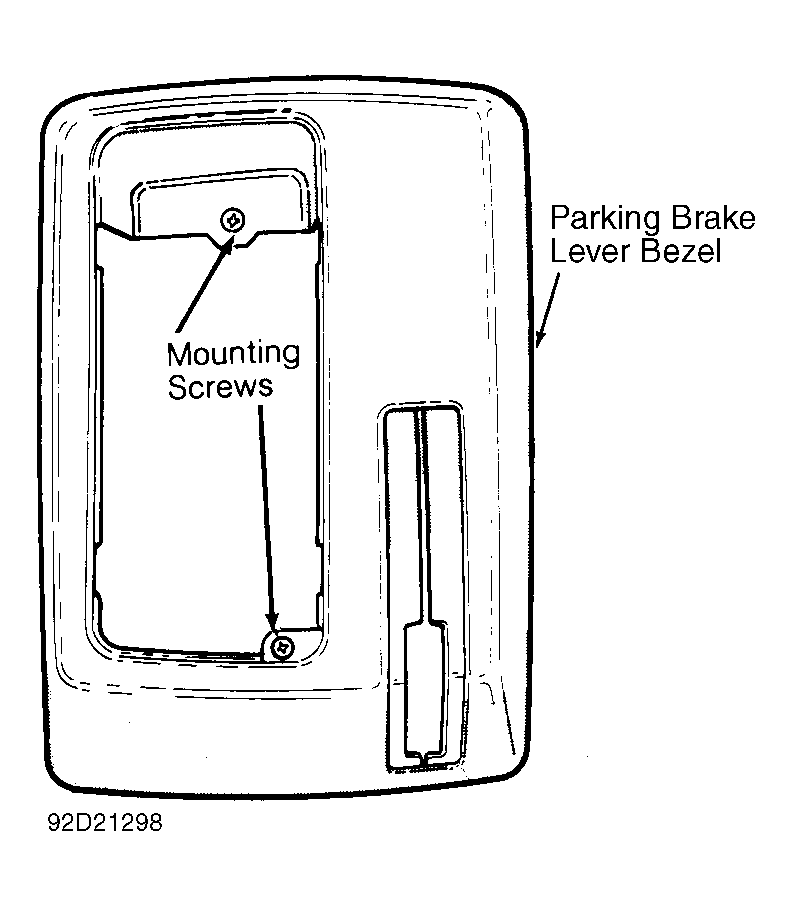

Fig 2: Locating Parking Brake Bezel Screws
G92D21298Courtesy of CHRYSLER CORP.
