Complete System Deactivation

WARNING: This page is about a different car, the 1995 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable and tape cable end. WAIT at least 2 minutes before continuing. Disconnect Yellow 2-way clockspring harness connector, located at base of steering column. See Fig 1 .
  2. Clockspring connector may also be disconnected at ASDM. Reconnect battery and drive vehicle to repair area. Disconnect negative battery cable and tape cable end.

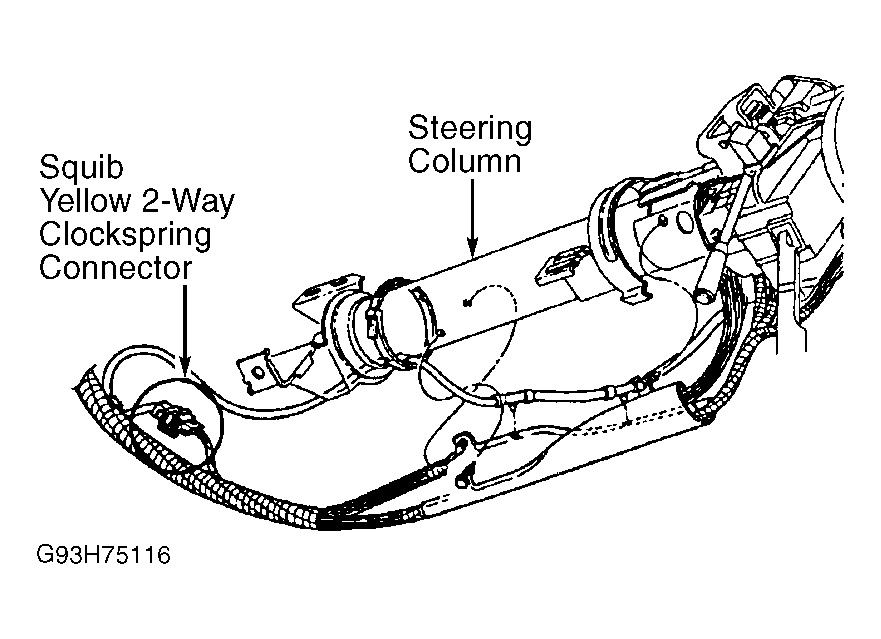

    Fig 1: Locating Yellow 2-Way Clockspring Connector
    G93H75116Courtesy of CHRYSLER CORP.
  3. Reconnect clockspring connector and negative battery cable before performing system diagnostics. See DIAGNOSIS  .
