Piston Rings
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1995 Jeep Wrangler, 1995 Jeep Grand Cherokee, 1995 Jeep Cherokee, 1994 Jeep Wrangler, and 1994 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

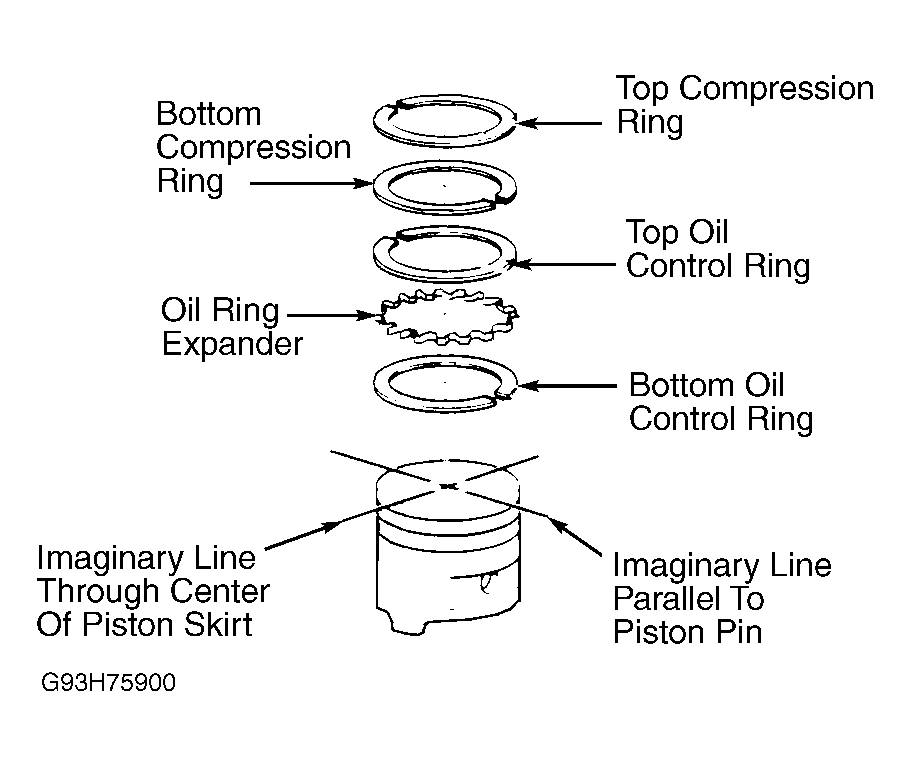

Install piston rings. Ensure ring end gap and side clearance are within specification. Install compression rings with dot(s) on ring surface toward top of piston. DO NOT interchange compression rings. Top ring has Gray scraping surface; second ring has Black scraping surface. Position ring end gaps in specified area. Ring gaps may vary 20 degrees from positions illustrated. See Fig 1. See PISTONS , PINS & RINGS table under ENGINE SPECIFICATIONS.
