Brake Indicator Inoperative
WARNING: This page is about a different car, the 1995 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch to START position. If light does not go off, go to next step.

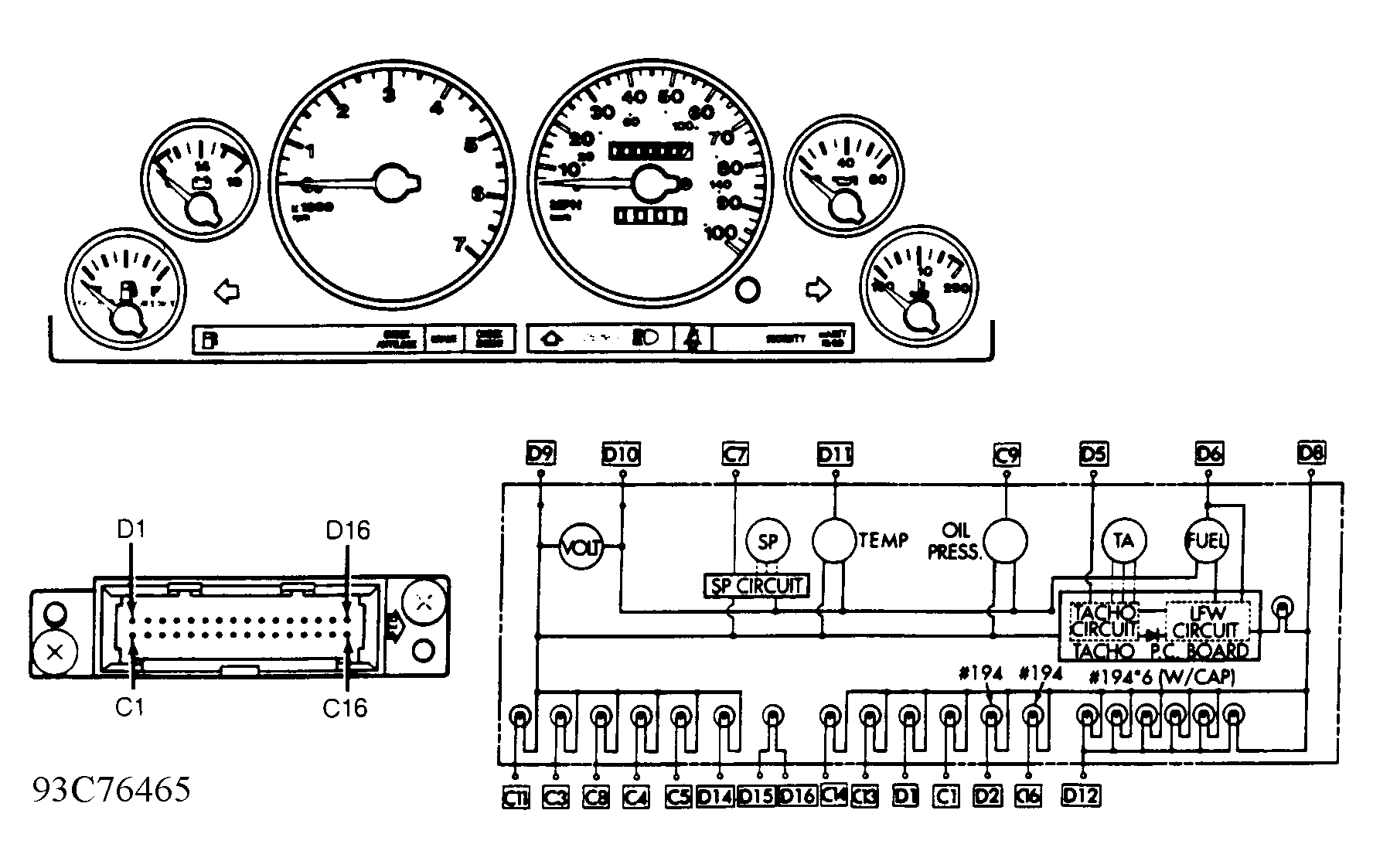

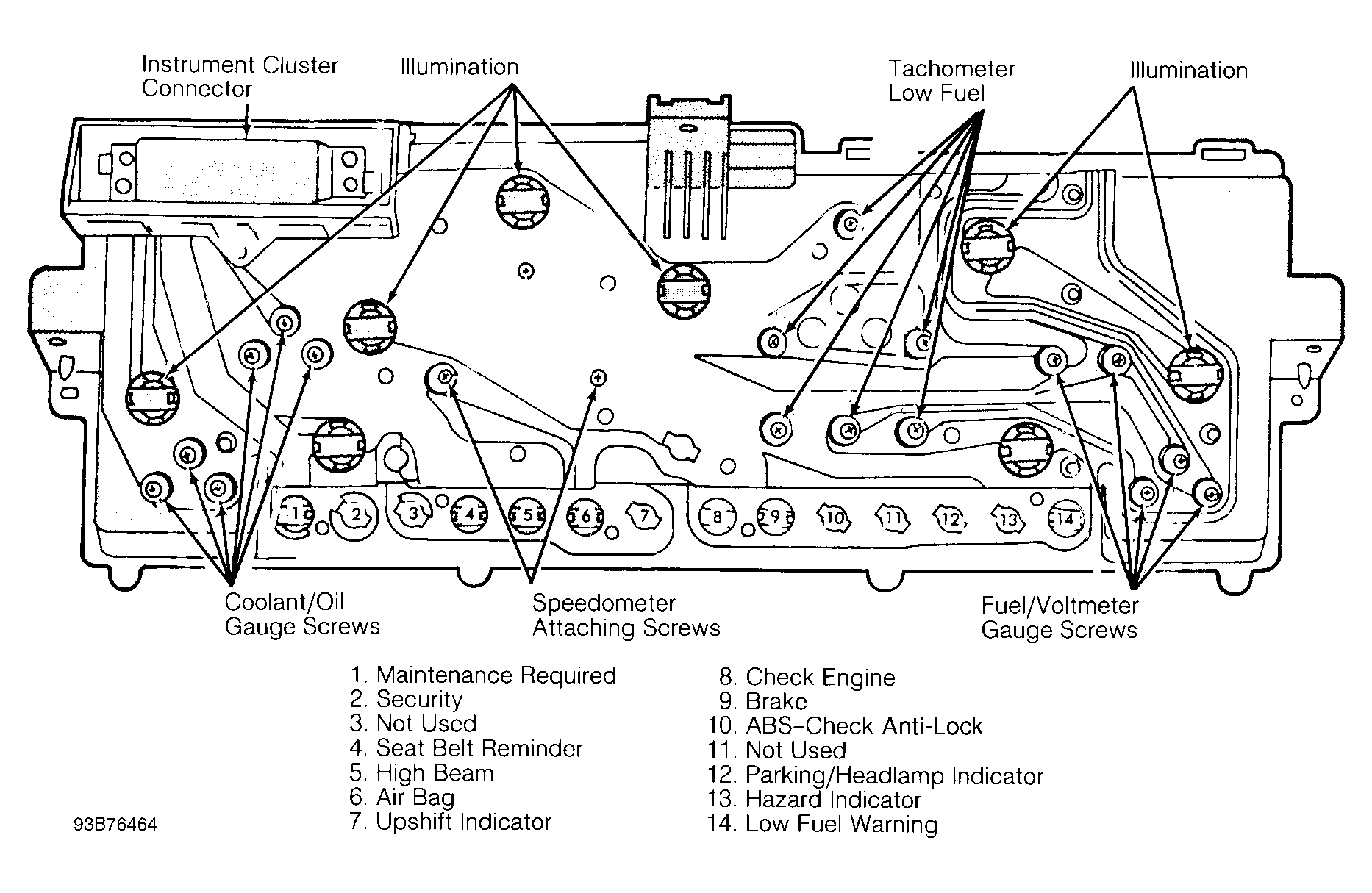

- Connect jumper wire between instrument panel connector terminal C4 and ground. See Figure
and Figure
. Light should go on. If bulb is okay, check for continuity to brake pressure warning switch and park brake switch
