Removal & Installation

WARNING: This page is about a different car, the 1995 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable. Remove ash tray. Remove center cluster bezel screws. Remove bezel. See Fig 1 . Remove s crews holding dash pad behind top of center bezel. Pry defroster grille out of dash pad. Unplug sensors (if equipped) and set grille aside.
  2. Remove screws holding dash pad to defroster duct and instrument panel cluster. Open glove box and remove screws holding dash pad. Remove dash pad by pulling up to unsnap clips. See Fig 2 .
  3. Remove screws from top of instrument cluster. Lift instrument cluster straight up far enough to access connector. Disconnect instrument cluster connector. Remove instrument cluster. See Fig 3 . To install, reverse removal procedure.

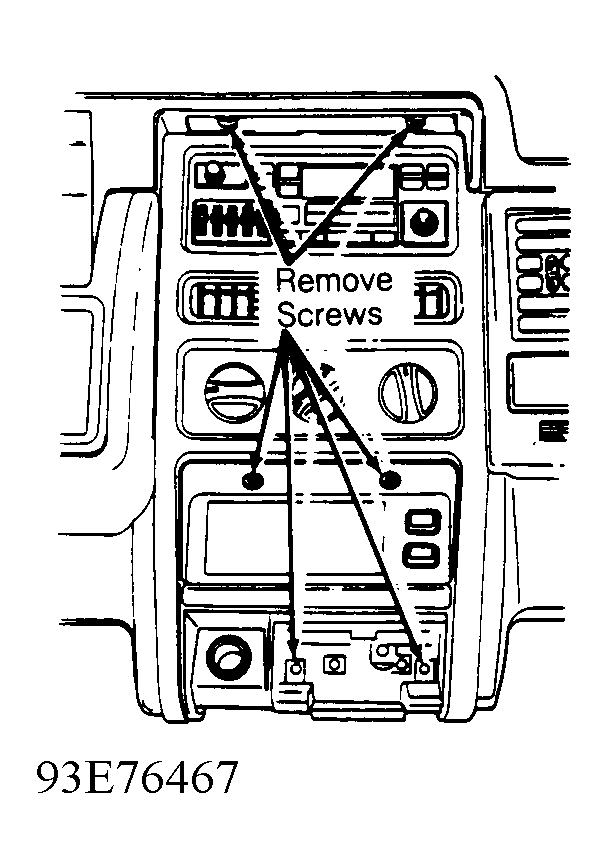

Fig 1: Removing Center Cluster Bezel
G93E76467Courtesy of CHRYSLER CORP.
Fig 2: Removing Dash Pad
G93F76468Courtesy of CHRYSLER CORP.
Fig 3: Removing Instrument Cluster
G93G76469Courtesy of CHRYSLER CORP.
