Removal & Installation

WARNING: This page is about a different car, the 1995 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove 6 shroud screws. See Fig 1 . Slide shroud toward steering wheel. Remove 3 screws holding right switch panel. Remove 3 screws holding left side switch bezel. Remove 2 screws holding cluster in place. See Fig 2 .
  2. Lift up top of cluster. Roll cluster out between steering column and instrument panel far enough to access connector located behind tachometer. See Fig 3 . Disconnect cluster connector, and remove cluster.
  3. To remove gauge cluster, remove 6 bezel screws. Remove 6 gauge housing mounting screws. Disconnect connector from cluster. To install, reverse removal procedure.

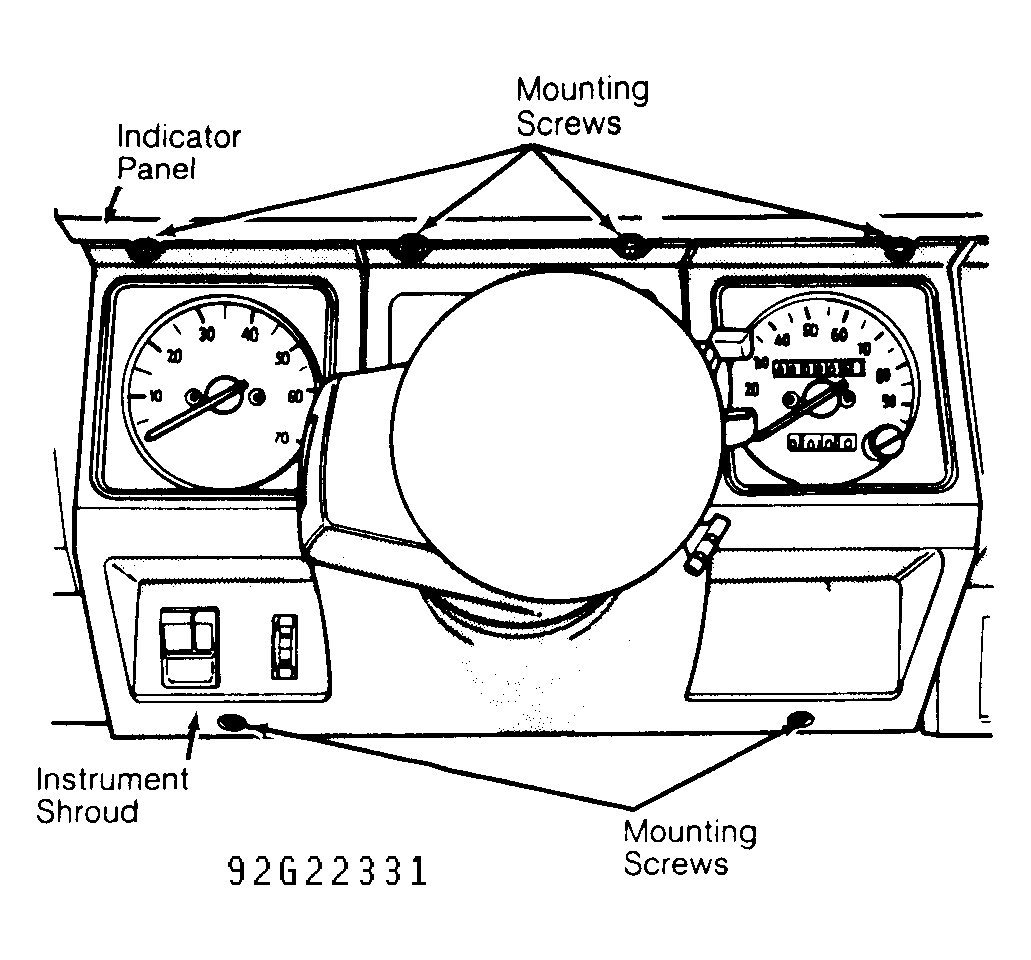

Fig 1: Removing Shroud Screws
G92G22331Courtesy of CHRYSLER CORP.

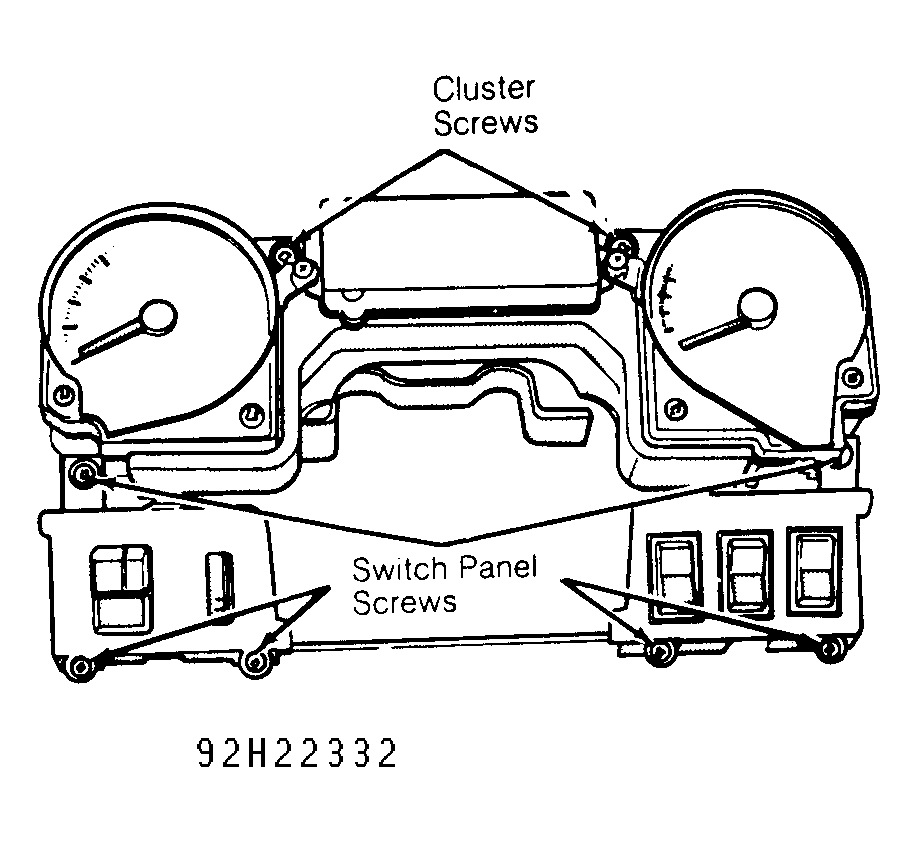

Fig 2: Removing Instrument Cluster
G92H22332Courtesy of CHRYSLER CORP.

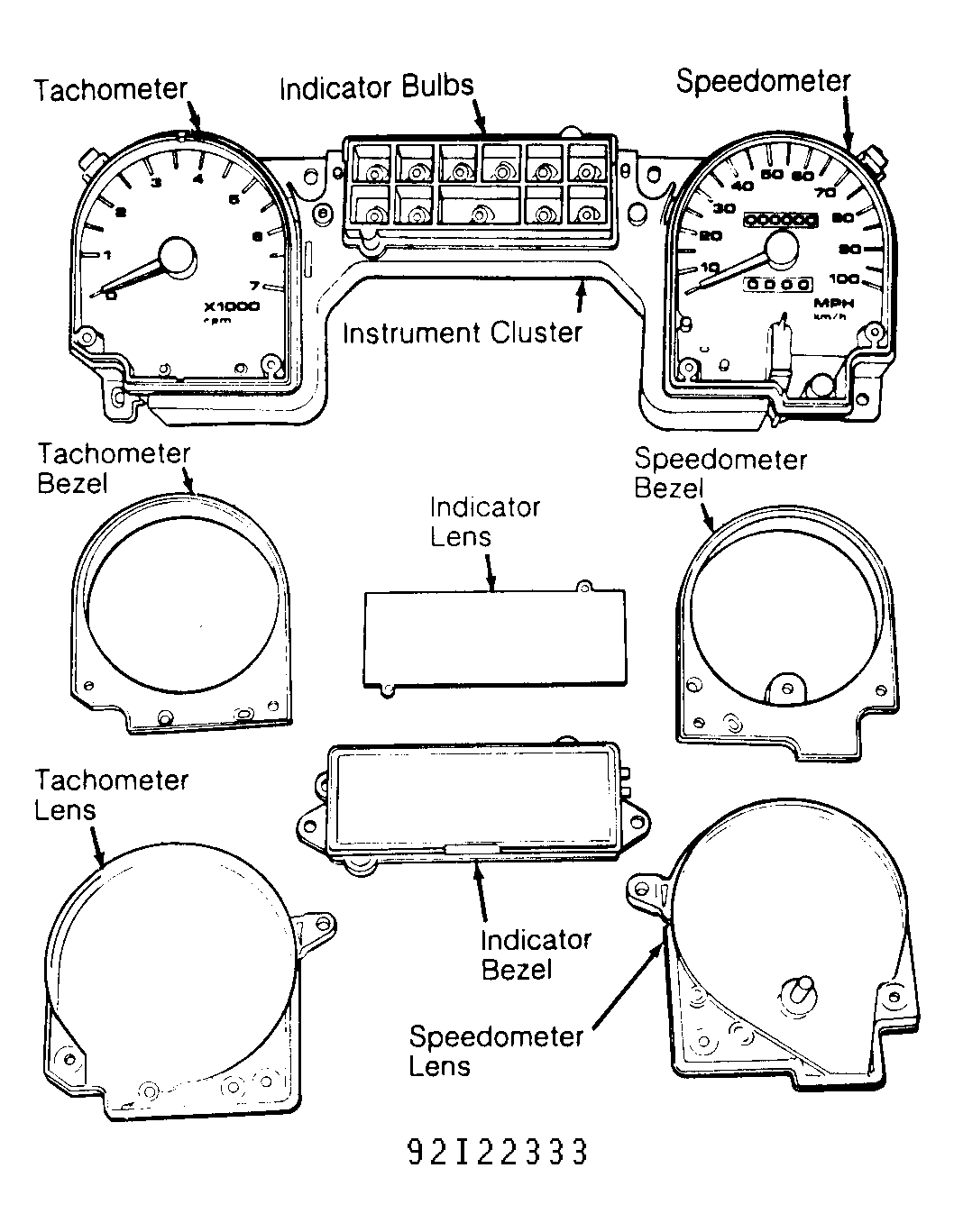

Fig 3: Exploded View Of Instrument Cluster
G92I22333Courtesy of CHRYSLER CORP.
