Connector Identification

WARNING: This page is about a different car, the 1995 Jeep Wrangler, 1995 Jeep Grand Cherokee, and 1995 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

CONNECTOR IDENTIFICATION DIRECTORY

Connector	See
Idle Air Control (IAC) Motor	Fig 1
Engine Coolant & Intake Air Temperature Sensors	Fig 2
Camshaft & Crankshaft Position Sensors	Fig 3
Powertrain Control Module (PCM)	Fig 4
Engine Diagnostic/Data Link Connector (DLC)	Fig 5
Fuel Injector	Fig 6
Ignition Coil	Fig 7
Manifold Absolute Pressure (MAP) Sensor	Fig 8
Heated Oxygen Sensor (HO2S)	Fig 9
Relays	Fig 10
Throttle Position Sensor (TPS)	Fig 11
Fuel Pump Relay	Fig 12
Bulkhead Connector	Fig 13

Fig 1: Identifying Idle Air Control (IAC) Motor Connector Terminals

G92A04767

Courtesy of CHRYSLER CORP.

Fig 2: ECT & Intake Air Temperature Sensor Connector Terminal ID

G92E04769

Courtesy of CHRYSLER CORP.

Fig 3: CMP & Crankshaft Position (CKP) Sensor Connector Terminal ID

G92C22485

Courtesy of CHRYSLER CORP.

Fig 4: Identifying Engine Controller Connector Terminals

G92I04785

Courtesy of CHRYSLER CORP.

Fig 5: Engine Diagnostic Connector/DLC Terminal ID

G95G26894

Courtesy of CHRYSLER CORP.

Fig 6: Identifying Fuel Injector Connector Terminals

G92H04775

Courtesy of CHRYSLER CORP.

Fig 7: Identifying Ignition Coil Connector Terminals

G92D04778

Courtesy of CHRYSLER CORP.

Fig 8: MAP Sensor Connector Terminal ID

G92E22487

Courtesy of CHRYSLER CORP.

Fig 9: Identifying Heated Oxygen Sensor (HO2S) Connector Terminals

G92J04781

Courtesy of CHRYSLER CORP.

Fig 10: Identifying Relay Connector Terminals

G92D04783

Courtesy of CHRYSLER CORP.

Fig 11: Identifying Throttle Position Sensor Connector Terminals

G92C04787

Courtesy of CHRYSLER CORP.

Fig 12: Testing Fuel Pump Relay

G92G22489

Courtesy of CHRYSLER CORP.

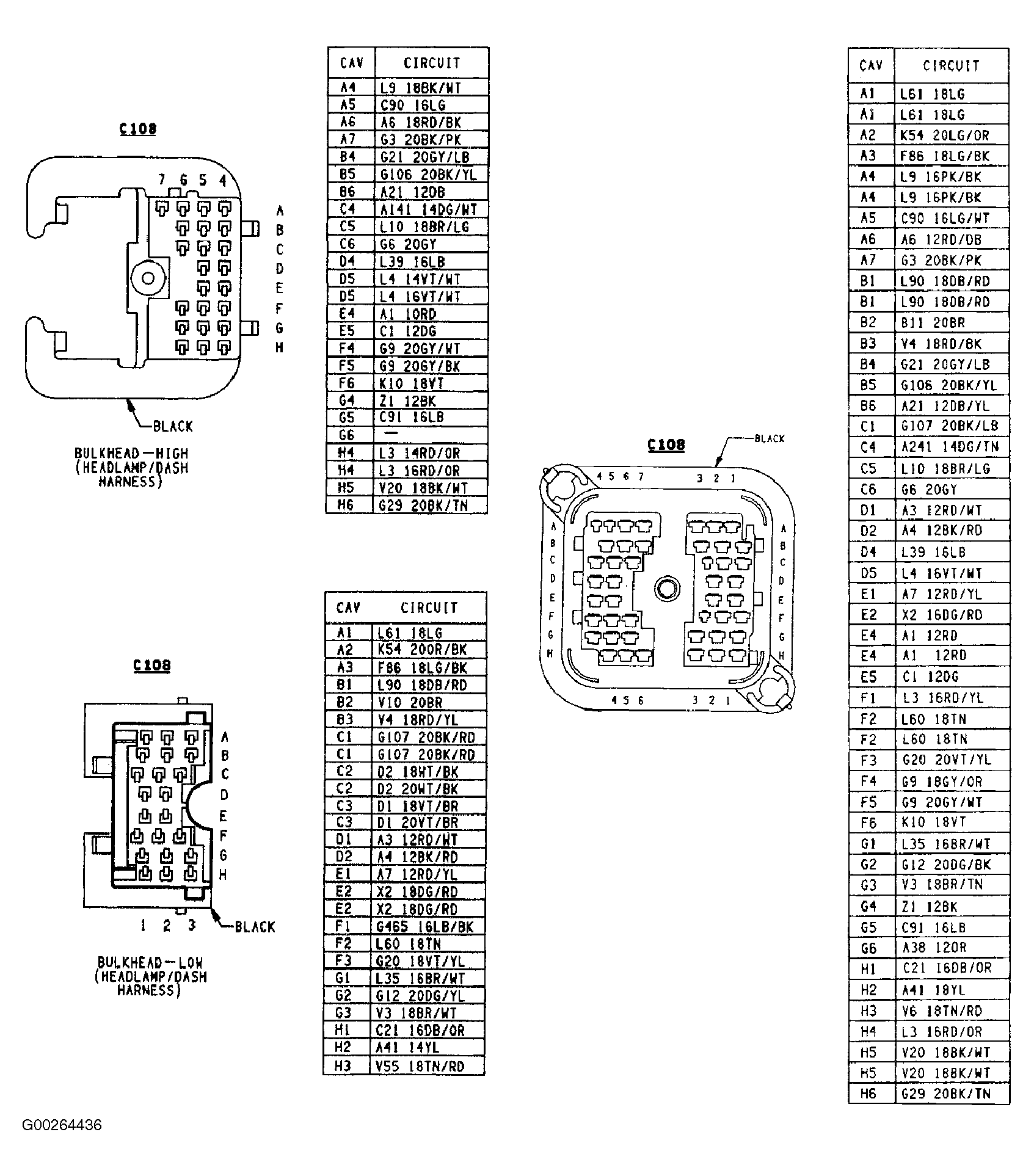

Fig 13: Identifying Bulkhead Connector Terminals (C108)

G00264436

Courtesy of CHRYSLER CORP.
