Removal & Installation: Camshaft: Removal
WARNING: This page is about a different car, the 1995 Jeep Grand Cherokee, 1995 Dodge Ram Wagon, 1995 Dodge Ram Van, 1995 Dodge Pickup, and 1995 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the engine. Refer to ENGINE R & I . Remove the front cover and timing chain. Refer to FRONT COVER R & I . Also refer to TIMING CHAIN .

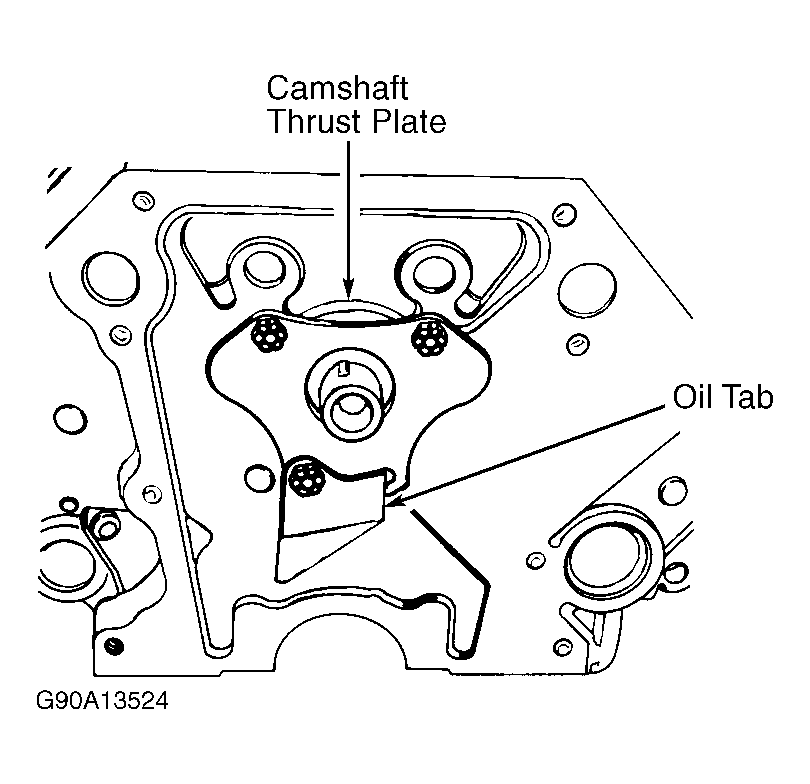

- Remove valve lifters. See VALVE LIFTERS R & I . Remove distributor and distributor drive shaft. Remove camshaft thrust plate, noting location of oil tab for installation reference. See Fig 1. Remove camshaft.
