Removal & Disassembly

WARNING: This page is about a different car, the 1995 Jeep Grand Cherokee, 1995 Dodge Ram Wagon, 1995 Dodge Ram Van, 1995 Dodge Pickup, and 1995 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove oil pan. See OIL PAN  under REMOVAL & INSTALLATION. Remove bolts and oil pump from rear main bearing cap.
  2. Remove cotter pin. Drill a 1/8" (3.17 mm) hole into relief valve retainer cap and insert a self-tapping sheet metal screw into cap. Clamp screw into vise. While supporting pump, remove retainer cap by tapping pump body using soft-faced hammer.
  3. Discard retainer cap, and remove spring and relief valve. Remove pump cover and discard oil seal ring. Remove inner rotor and shaft and outer rotor. See Fig 1.

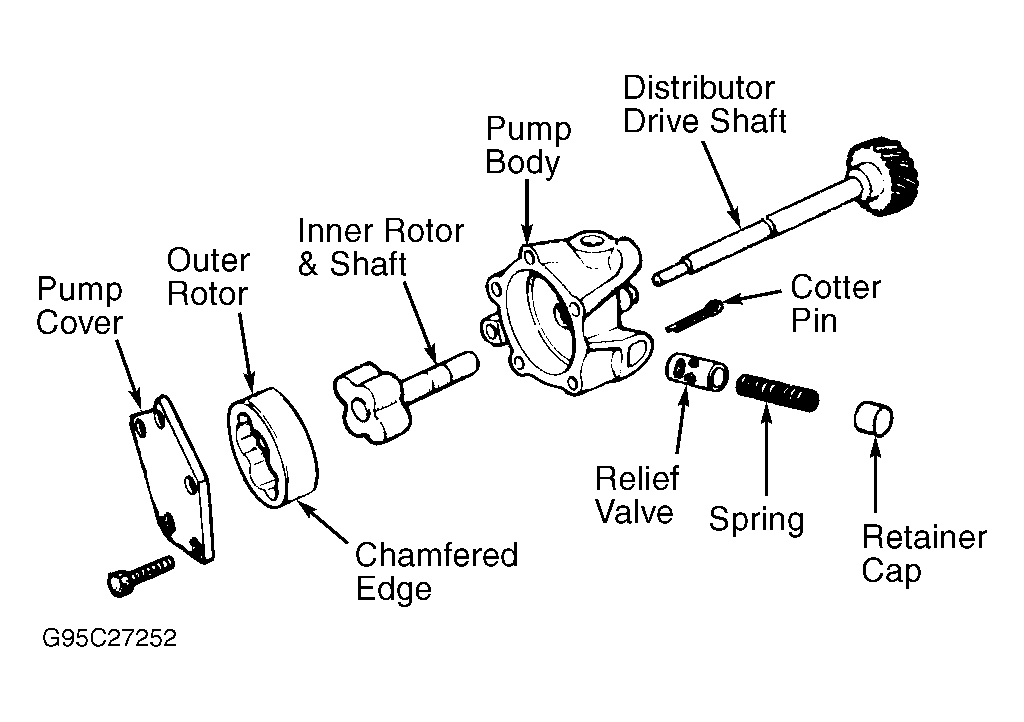

Fig 1: Exploded View Of Oil Pump Assembly
G95C27252Courtesy of CHRYSLER CORP.
